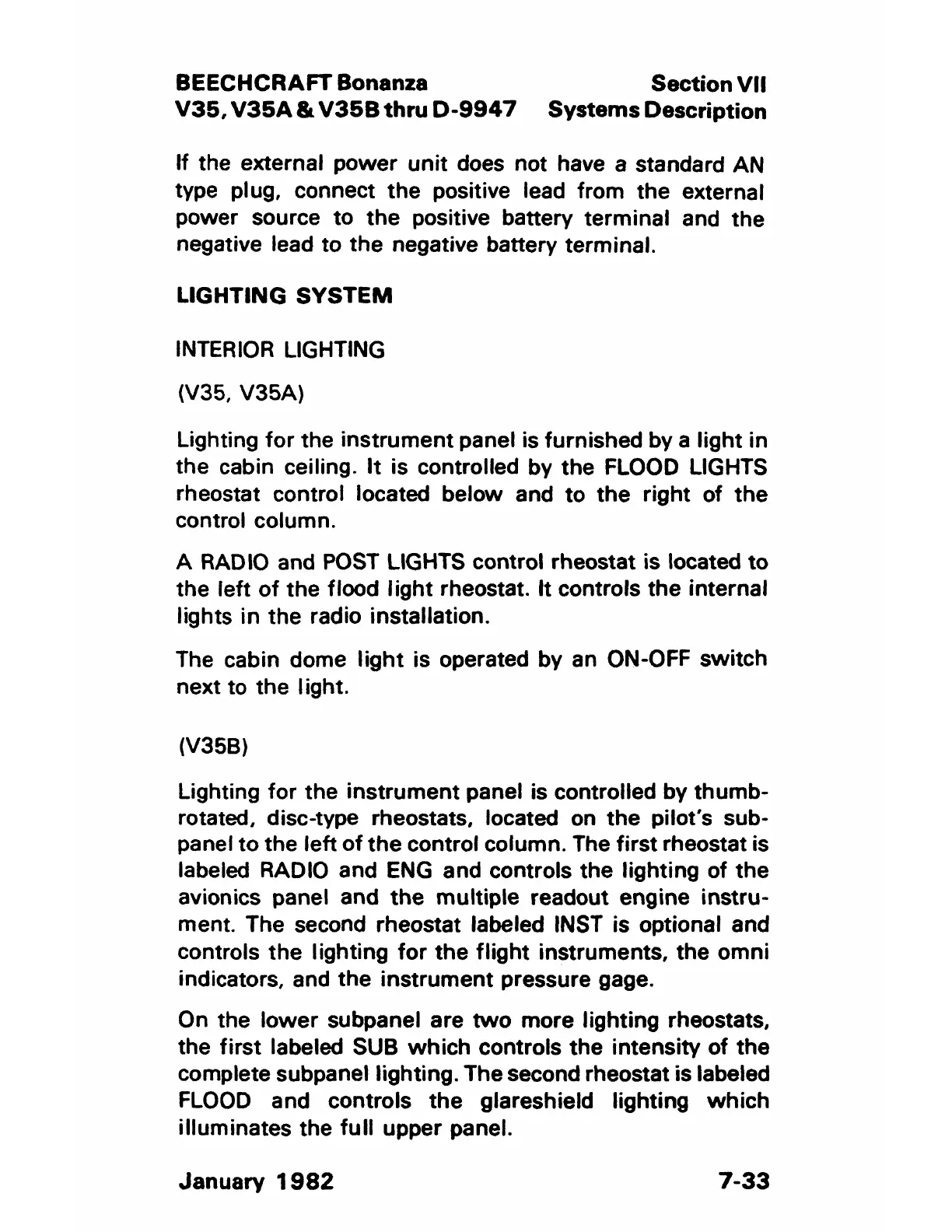

BEECHCRAFT Bonanza
V35, V35A& V35Bthru D-9947
Section VII
Systems Description
If the external power unit does not have a standard AN
type plug, connect the positive lead from the external
power source to the positive battery terminal and the
negative lead to the negative battery terminal.
LIGHTING SYSTEM
INTERIOR LIGHTING
(V35, V35A)
Lighting for the instrument panel is furnished by a light in
the cabin ceiling. It is controlled by the FLOOD LIGHTS
rheostat control located below and to the right of the
control column.
A RADIO and POST LIGHTS control rheostat is located to
the left of the flood light rheostat. It controls the internal
lights in the radio installation.
The cabin dome light is operated by an ON-OFF switch
next to the light.
(V35B)
Lighting for the instrument panel is controlled by thumb-
rotated, disc-type rheostats, located on the pilot's sub-
panel to the left of the control column. The first rheostat is
labeled RADIO and ENG and controls the lighting of the
avionics panel and the multiple readout engine instru-
ment. The second rheostat labeled INST is optional and
controls the lighting for the flight instruments, the omni
indicators. and the instrument pressure gage.
On the lower subpanel are two more lighting rheostats,
the first labeled SUB which controls the intensity of the
complete subpanel lighting. The second rheostat is labeled
FLOOD and controls the glareshield lighting which
illuminates the full upper panel.
January 1982 7-33
