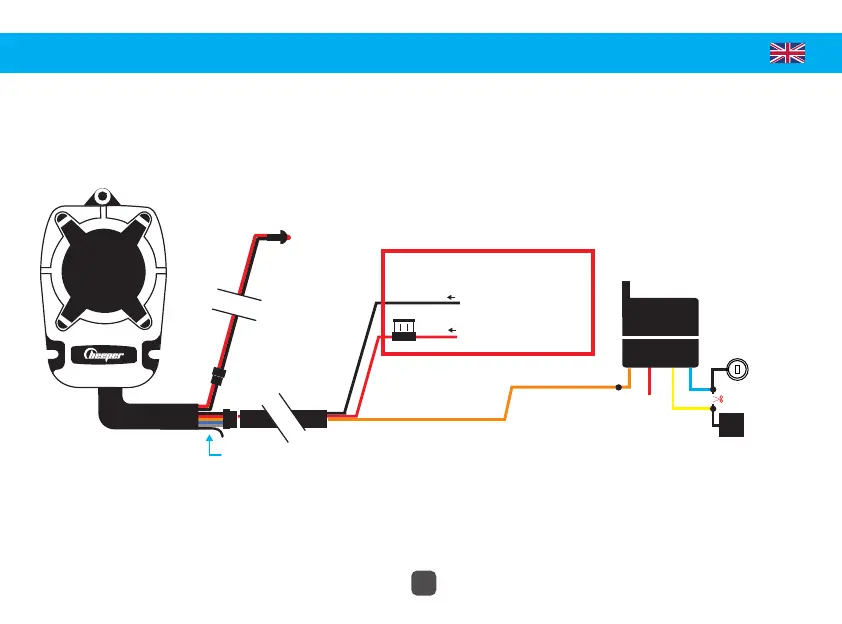

4. Contact detection
For the contact detection option on the vehicle, it is necessary to connect the white wire (+ 12V after ignition) to a + 12V after ignition of
the vehicle. Attention, this wire is necessary for the possible coding of the remote controls.
3. Starter cut-off relay
The starter cut-off relay allows you to cut off power from the key switch to the starter.
It will be necessary to add the 12V 4-pin 30A universal relay module (ref. TSX-RCM)
10 cm
2 m
2 m
ORANGE
Cutting relay
starter
Neiman
+12V
Battery
CUT
Starter
87A
30
85
86
- 200 mA
Ref. TSX-RCM
Central siren
Antenna
(do not connect)
Indicator LEDs
Mass (-)
+12V Battery
BLACK
RED
Connections
MANDATORY
