OPTIONS
1. Anti-lift detection
Lift detection lets you know when your vehicle is lifted or moved.
It will be necessary to add the anti-lifting module (ref. XR2-CATAL)
2. Opening detection
For the perimetry option, it is necessary to connect the blue perimetry wire (-) to the perimetry of the vehicle. If an opening is opened,
the alarm is triggered.
Attention, this wire is necessary for the possible coding of the remote controls.
Central siren
Antenna
(do not connect)
10 cm
Indicator LEDs
Perimetry (-)
2 m
2 m
Mass (-)
Mass (-)
Ref. XR2-CATAL
+12V Battery
+12V Battery
BLACK
BLACK
RED
RED
BLUE
WHITE

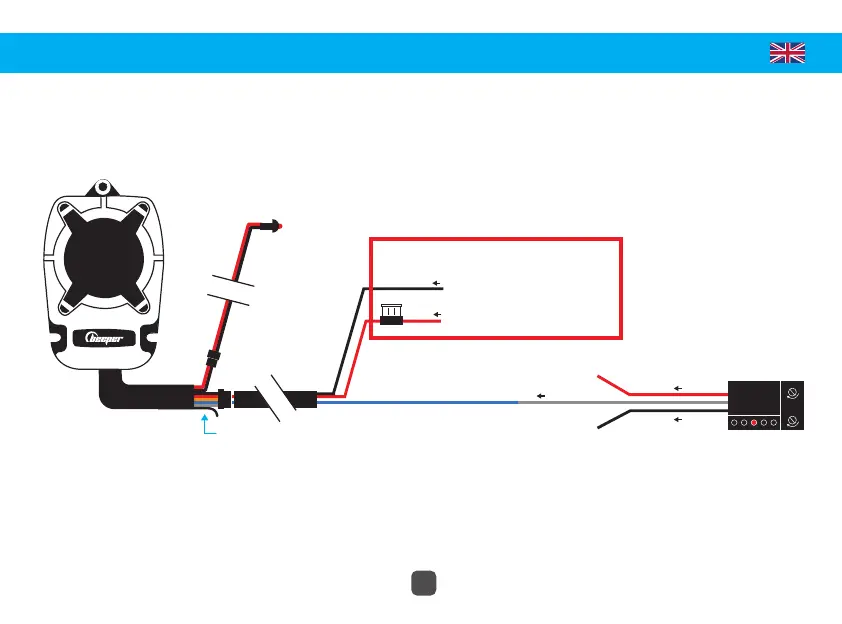

Connections
MANDATORY
Trigger (-)
S
T
Module
anti-uplift
