Water/water heat exchanger – QWT, WTI, SWT, SWT-T
01.07.2015
13

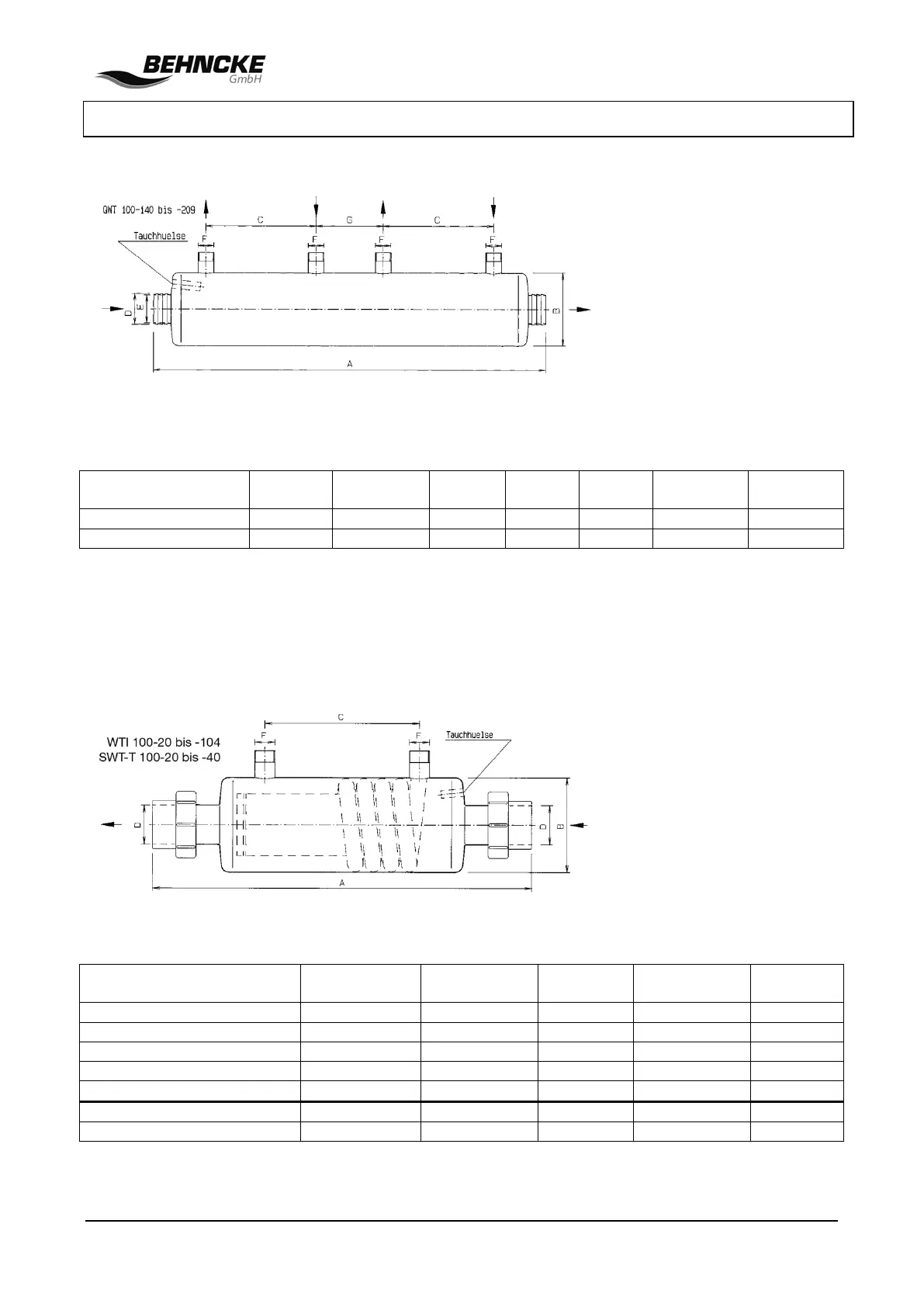

Setup/installation
Item
A
mm
B
mm ø
C
mm
G
mm
D
DN
E
Inches
F
Inches
QWT 100-140
920
190
295
100
60
2
1
QWT 100-209
1190
190
430
100
60
2
1
Item
A
mm
B
mm ø
C
mm
D
DN
F
Inches
WTI 100-20
395
125
90
PVC DN40
3/4
WTI 100-30
440
125
135
PVC DN40
3/4
WTI 100-40
505
125
205
PVC DN40
3/4
WTI 100-70
640
190
290
PVC DN40
1"
WTI 100-104
820
190
425
PVC DN40
1"
SWT-T 100-20
545
153
335
PVC DN40
3/4
SWT-T 100-40
815
130
570
PVC DN40
1"
