Behncke QWT - 3 Setup;Installation; Transport;Storage; Setup and Connection Dimensions

Water/water heat exchanger – QWT, WTI, SWT, SWT-T
01.07.2015
12
Setup/installation
3 Setup/installation
3.1 Transport/storage
Transport the water heat exchanger only when empty.
Always store the washed and drained water heat exchanger indoors in a non-aggressive
atmosphere.

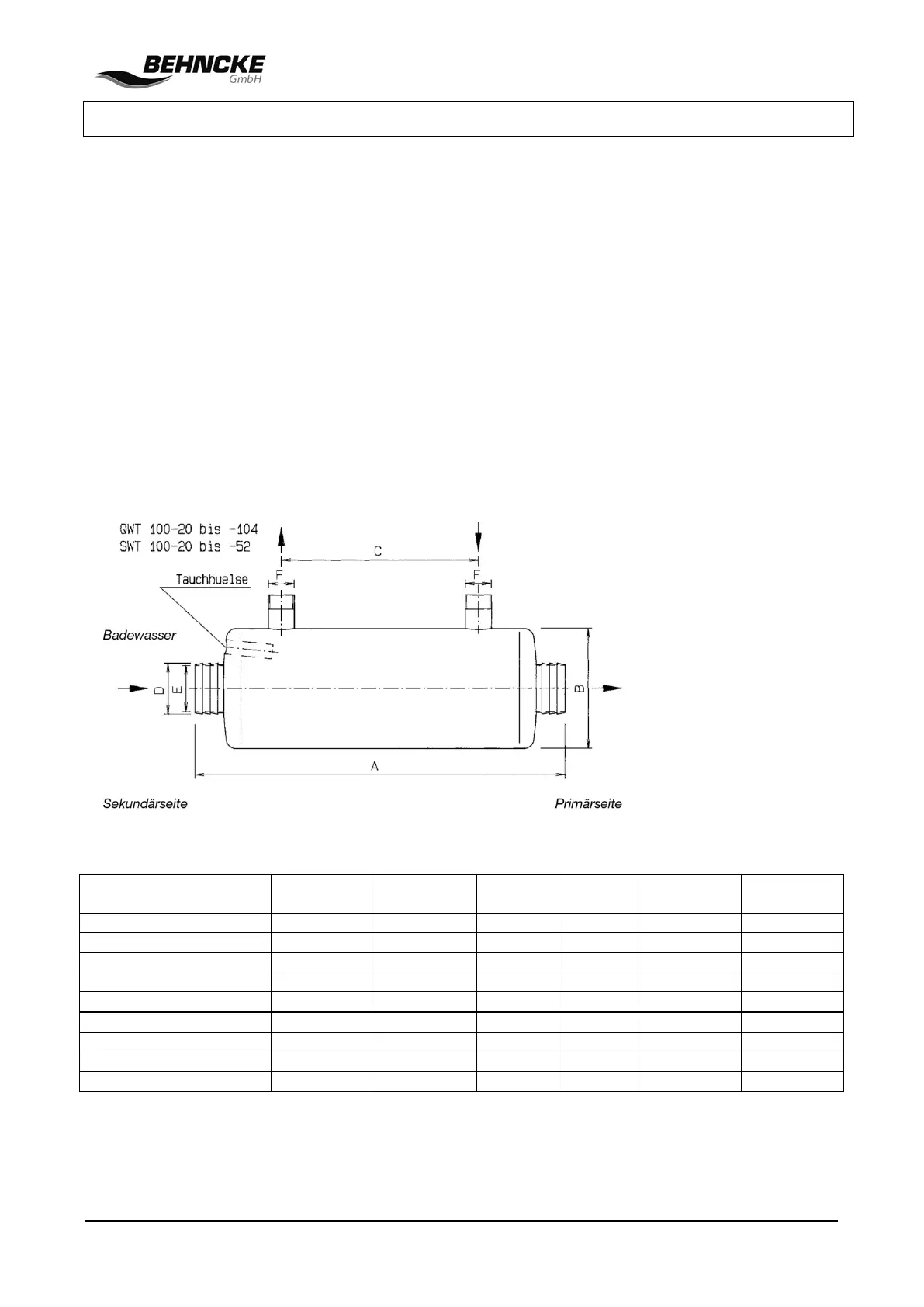

3.2 Setup and connection dimensions
Item
A
mm
B
mm ø
C
mm
D
DN
E
Inches
F
Inches
QWT 100-20
275
125
90
50
1 1/2
3/4
QWT 100-30
315
125
135
50
1 1/2
3/4
QWT 100-40
385
125
205
50
1 1/2
3/4
QWT 100-70
520
190
290
50
1 1/2
1
QWT 100-104
660
190
430
60
2
1
SWT 100-20
530
153
335
50
1 1/2
3/4
SWT 100-25
710
153
520
50
1 1/2
3/4
SWT 100-40
800
190
570
50
1 1/2
1
SWT 100-52
1090
190
870
50
1 1/2
1
