It is recommended that the stove be installed at least 800 mm from
combustible materials. However, any household furnishings should be at least
1000 mm away as they could be adversely affected by heat.
The stove can be recessed in a suitable sized fireplace but a permanent free
air gap of at least 200mm must be left around the sides and top and at least
50mm at the back of the stove to obtain maximum heat output and for
access to the rear of the stove.

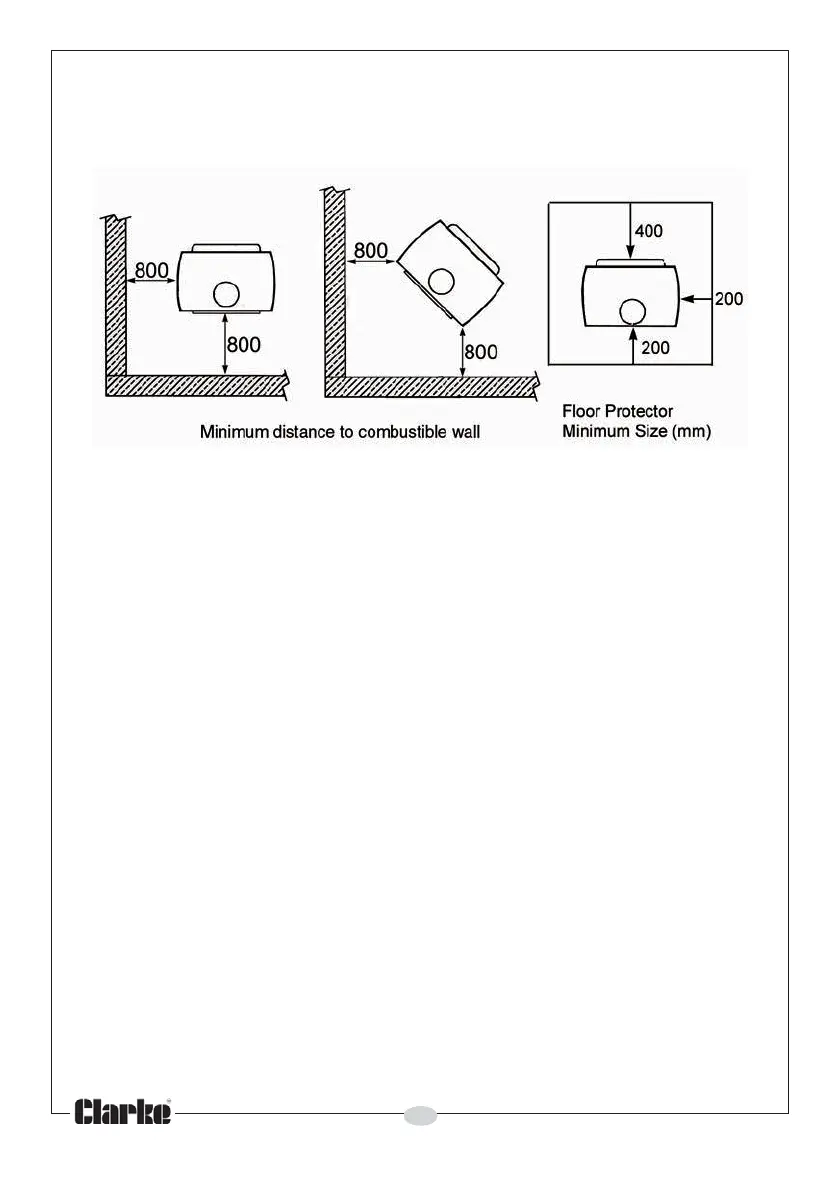

MINIMUM DISTANCE TO COMBUSTIBLE MATERIALS
Note: combustible material refers to any material that will degrade when
subjected to heat e.g. plaster.
Due to the heat of a hot stove, a suitable fire guard should always be used to
provide additional protection. Never allow young children to be left
unsupervised in a room containing a hot stove.
If in doubt, refer to Building Regulations 2000 (HM Approved Document “J”).
THE CHIMNEY
The stove is supplied with a flue pipe connector for top or rear mounting but
should never be connected to a shared chimney/flue system.
If there is no existing chimney, then a prefabricated block chimney in
accordance with Building Regulations HMG Approved Document J, or a twin-
walled insulated stainless steel flue to B.S.4543 can be used. These chimneys
must be fitted in accordance with the manufacturer’s instructions and the
appropriate building regulations.
Fig 6
MATERIAL CLEARANCES
The stove must have a minimum clearance of 1200 mm to a combustible
ceiling below.
