Behringer MINIFEX FEX800 User Manual

12
MINIFEX FEX800

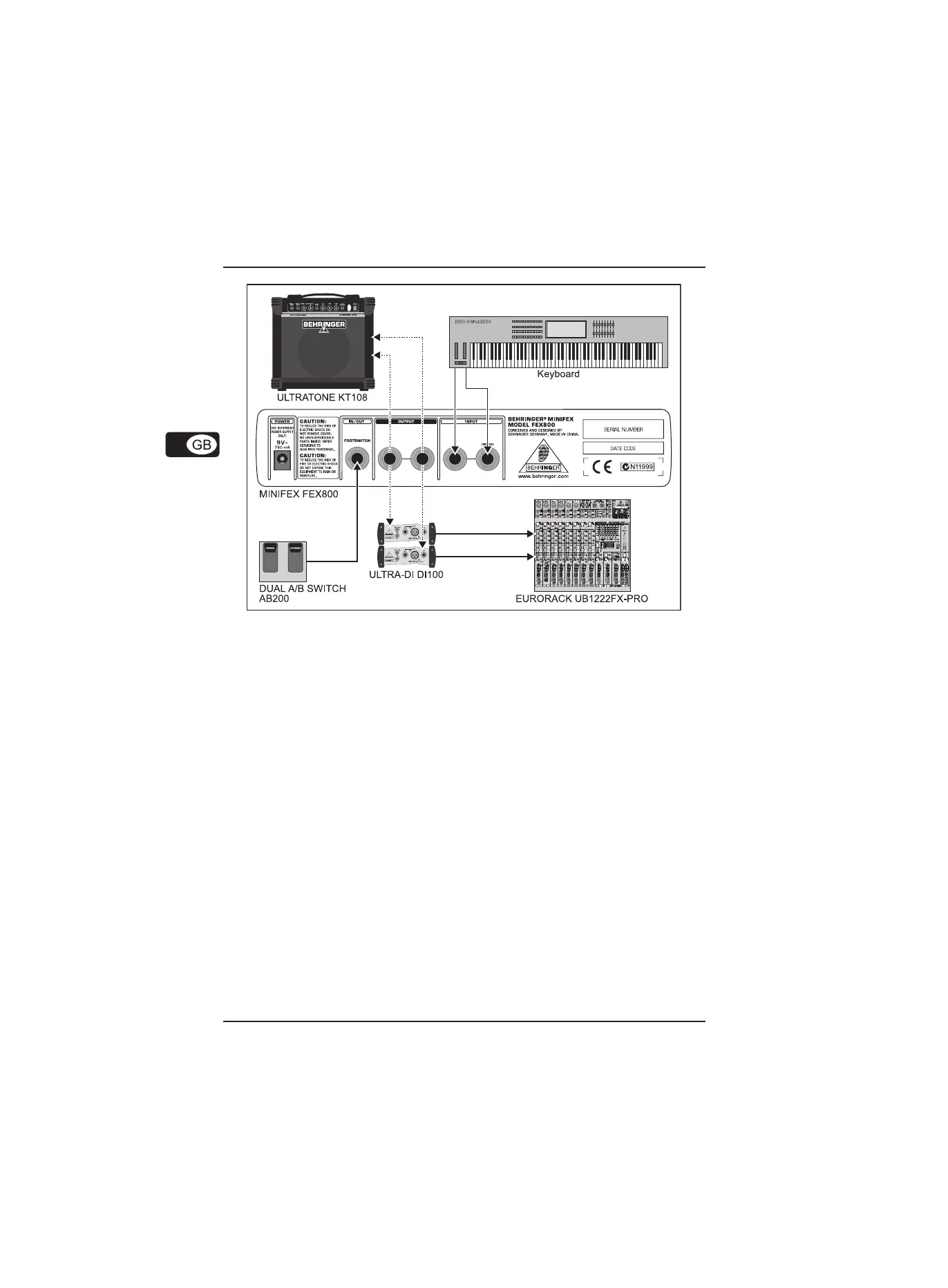

Fig. 4.3: Connecting the MINIFEX to an amplifier or D.I. box
5. AUDIO CONNECTIONS
There are various ways to integrate the FEX800 into your set-up. Depending on the application in
question, you will need different sets of connecting cables. The cables to use are described below.
5.1 Connection with insert cables
Please use standard insert cables equipped with 1/4" connectors to connect the MINIFEX to the
insert path of a mixing console. These Y cables have two 1/4" TS connectors at one end, and one 1/
4" TRS connector at the other. Connect the plug marked Send to the INPUT L jack on the effects
unit. Connect the Return plug to the OUTPUT L jack on the device. Connect the TRS connector to
the insert jack of the channel strip on the mixing console. Use two insert cables for stereo sub-
groups and main-mix inserts. The second cable must be connected to the INPUT/OUTPUT R jacks
of the FEX800.
5. AUDIO CONNECTIONS

Behringer MINIFEX FEX800 Specifications

Input Specifications

input type	¼" TS connectors, unbalanced
input impedance	30 kΩ
frequency response	10 Hz to 22 kHz, -3 dB

Output Specifications

output type	¼" TRS connectors, impedance balanced
output impedance	220 Ω
max output level	+10 dBu

System Specifications

dynamic range	96 dB, 10 Hz to 22 kHz
distortion	0.01% typ. @ 0 dBFS
crosstalk	-75 dB @ 1 kHz

Power Supply

mains connection	external power supply, 9 V~, 750 mA
mains voltage (USA/Canada)	120 V~, 60 Hz
power consumption	7.5 W

Dimensions and Weight

dimensions (H x W x D)	1.9 x 4.7 x 9.6", 48 x 120 x 242.6 mm
weight	1.46 lbs / 0.66 kg
