8
MINIFEX FEX800
The IN/OUT button enables/disables the effect signal. The button lights up when the input
signal is being processed by the FEX800. In order to hear the processed signal you have to set
a suitable ratio of effect vs. direct signal using the MIX BALANCE control .
Use the OUTPUT LEVEL control to adjust the output level.
The switch turns your MINIFEX FEX800 on and off. The switch lights up when the unit is
switched on.
+ Merely switching the unit off does not mean that it is fully disconnected from the
mains. To disconnect the unit from the mains, pull out the mains connector. Please
make sure before installation that the mains connector has not been damaged. If you
do not use the unit for an extended period of time, please disconnect it at the mains.
2.2 Rear panel

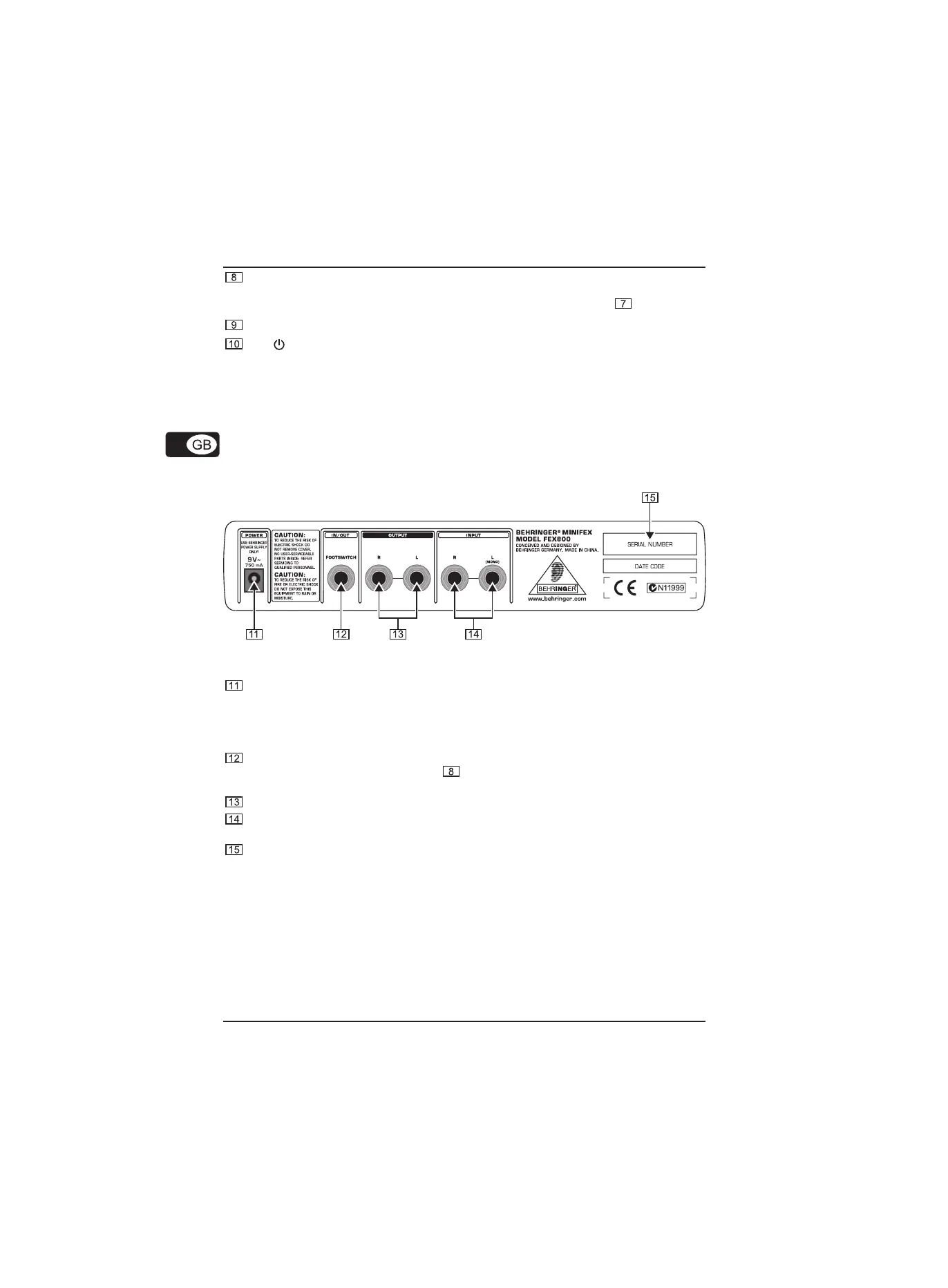

Fig. 2.2: Rear panel connectors of the FEX800
The FEX800 is connected to the mains using a 2-pole POWER connector jack. A matching
mains adaptor is included with the unit.
+ To avoid damage to your FEX800 always use the mains adaptor supplied with the
unit.
A single footswitch can be connected to the IN/OUT connector. This footswitch allows you
to remotely control the IN/OUT button on the front panel and switch the effect signal on
and off.
The two OUTPUT connectors are on 1/4" connectors and provide a balanced left/right signal.
The two INPUT connectors are on 1/4" connectors and can be used for unbalanced signals.
A single mono signal should be connected to the L jack.
SERIAL NUMBER.
2. CONTROL ELEMENTS AND CONNECTIONS
