Fig. 3.2: Wiring the MODULIZERPRO in the insert path
With certain special effects, for example the limiter, you should insert the MODULIZERPRO rather than
connecting it to the aux bus. Use a dedicated insert cable to connect the left audio channel with a channel
insert on your mixing console (fig. 3.2).
3.4 Using the MODULIZERPRO as an effects device for instruments
With its extensive MIDI implementation the MODULIZERPRO can also be used, for instance, as a multi-
effects device in a guitar rack. Of course, you can wire it both in stereo and mono.

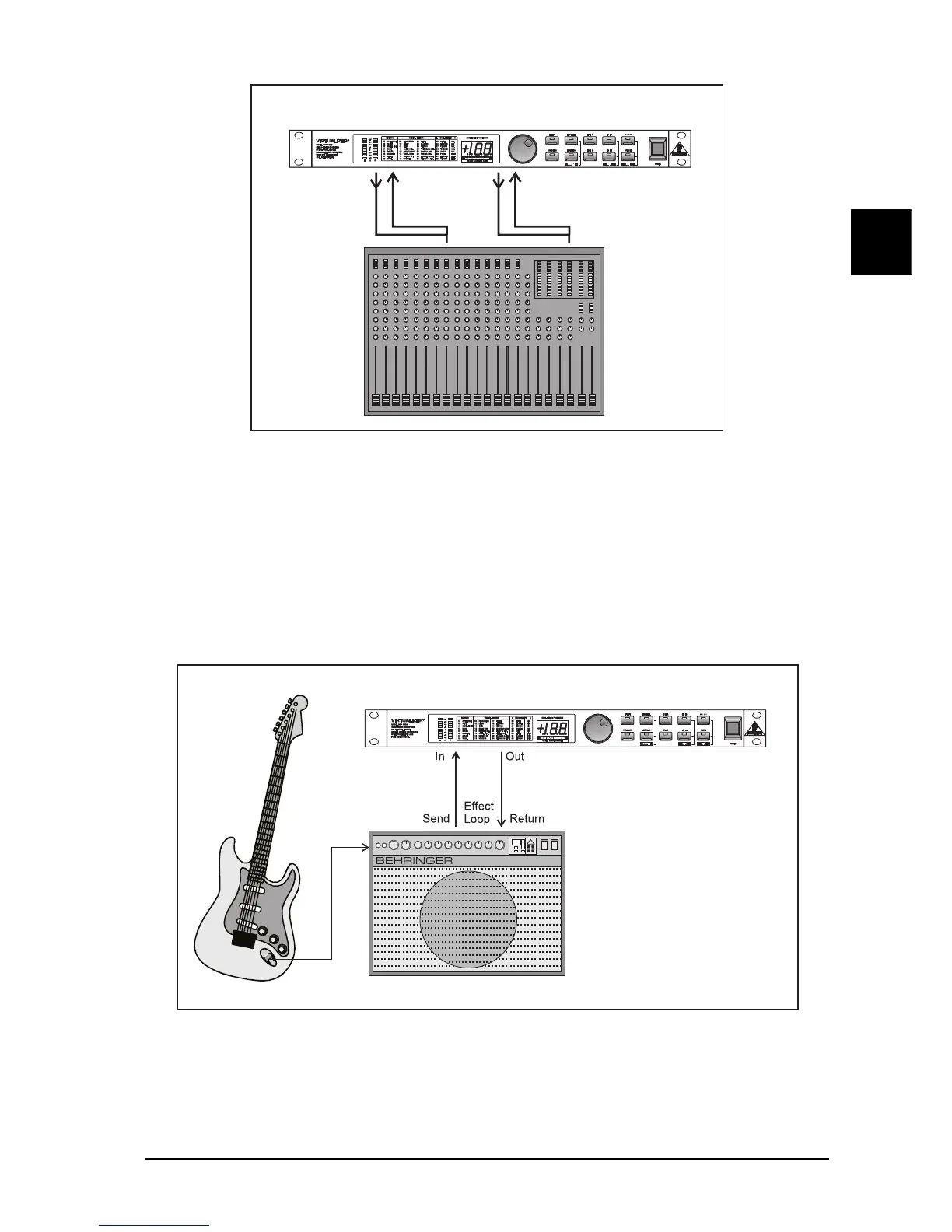

Fig. 3.3: Connecting the MODULIZERPRO to a guitar amp (send/return-mono)
The following hints illustrate the MODULIZERPROs versatility if used with a guitar amp. Basically, the
MODULIZERPRO should be inserted between the preamp and the power stage. Almost all guitar amps have
an insert or effect loop to send the preamp signal of the guitar amp to the audio inputs of the MODULIZERPRO.
The MODULIZERPRO processes the preamp signal and sends it back via the guitar amps return bus (power
amp in), from where it is routed to the power stage. When you use a stereo rack system for amplification, you
