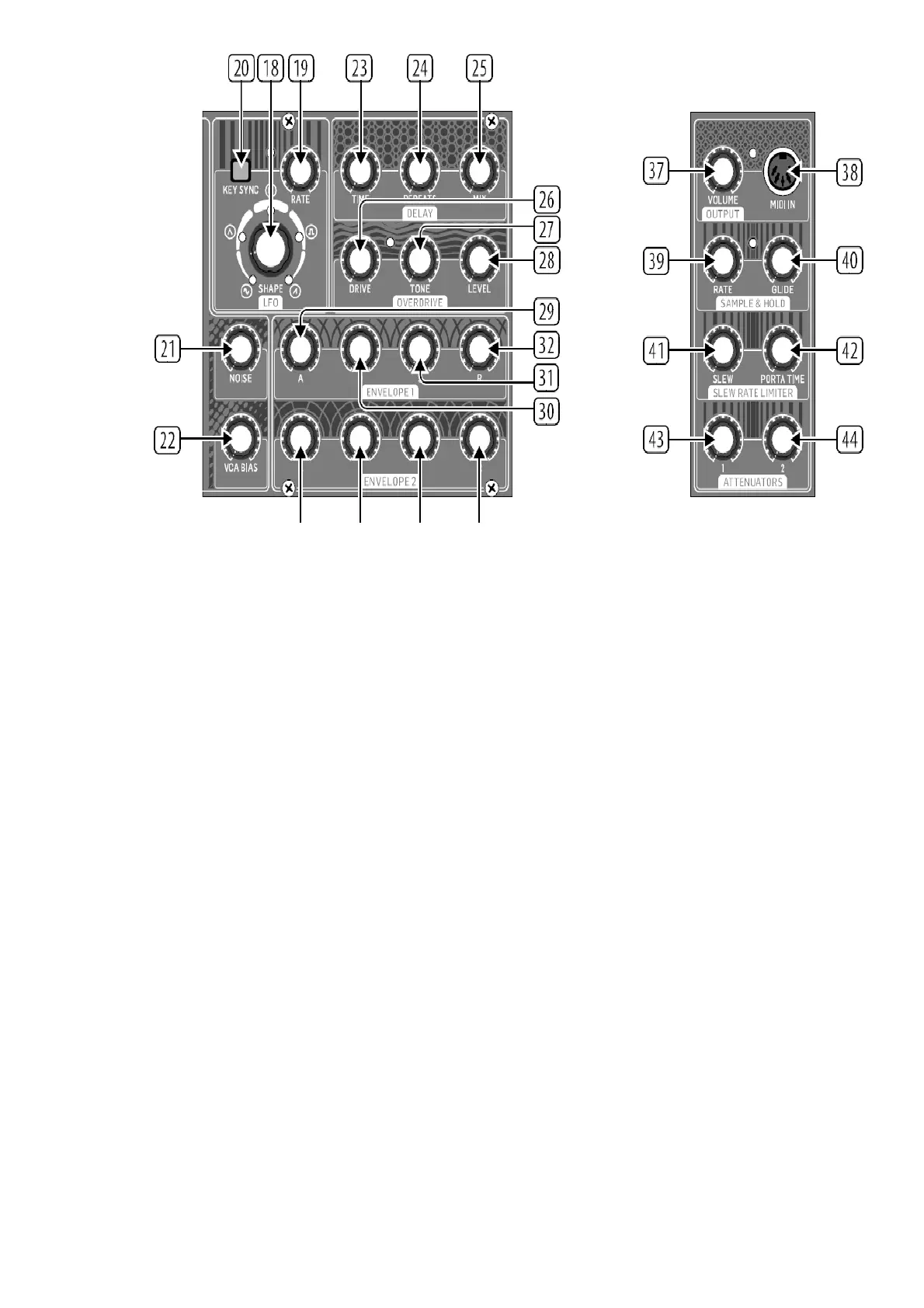

18. SHAPE – Adjusts the shape of the LFO.
19. RATE – Adjusts the frequency of the LFO.
20. Re-trigger the LFO when a midi note is received.
NOISE & VCA BIAS
21. NOISE LEVEL – Adjusts the amount of white noise injected into the filter.
22. VCA BIAS – Opens or closes the VCA.
DELAY SECTION
23. TIME – Controls the rate of the delay.
24. REPEATS – Controls the number of repeats.
25. MIX – Adjusts the wet/dry mix of the Delay.
OVERDRIVE SECTION
1. DRIVE – Sets the amount of overdrive.
2. TONE – Changes the timbre of the overdriven sound.
3. LEVEL – Controls the volume of the overdrive output. When fully off you may hear no audio at the output.
ENVELOPE SECTION
ENVELOPE 1: Envelope 1 is routed to the VCA CV by default.
4. A [ATTACK] – Controls the attack time of the envelope.
5. D [DECAY] – Controls the decay time of the envelope.
6. S [SUSTAIN] – Controls the sustain level of the envelope.
7. Controls the release time of the envelope.
ENVELOPE 2
8. A [ATTACK] – Controls the attack time of the envelope.
9. D [DECAY] – Controls the decay time of the envelope.
10. S [SUSTAIN] – Controls the sustain level of the envelope.
11. Controls the release time of the envelope.
Envelope 2 is routed to the VCF filter cutoff via ENV DEPTH control by default. See 17. ADSR knobs 33-
36 function the same as 29-32.
OUTPUT SECTION
12. VOLUME – Controls the main output level.
13. MIDI IN – Accepts incoming MIDI data from the selected midi channel.
SAMPLE & HOLD CLOCK
Generates a random pattern based on the sample & hold clock.
To Next Page
