X1622USB
The X1622USB features four XENYX-fueled
mic inputs with channel Inserts, “one
knob” compressors and 3-band British-
style EQs with a sweepable,
semi-parametric mid frequency band.
The four stereo line-level channels oer
enhanced ne-tuning via 4-band EQ,
which is extremely handy for adjusting
critical keyboard midrange frequencies.
Aux 1 Sends are switchable (pre- or
post-fader) and individual channels
can be assigned to two subgroups for
mixing exibility.

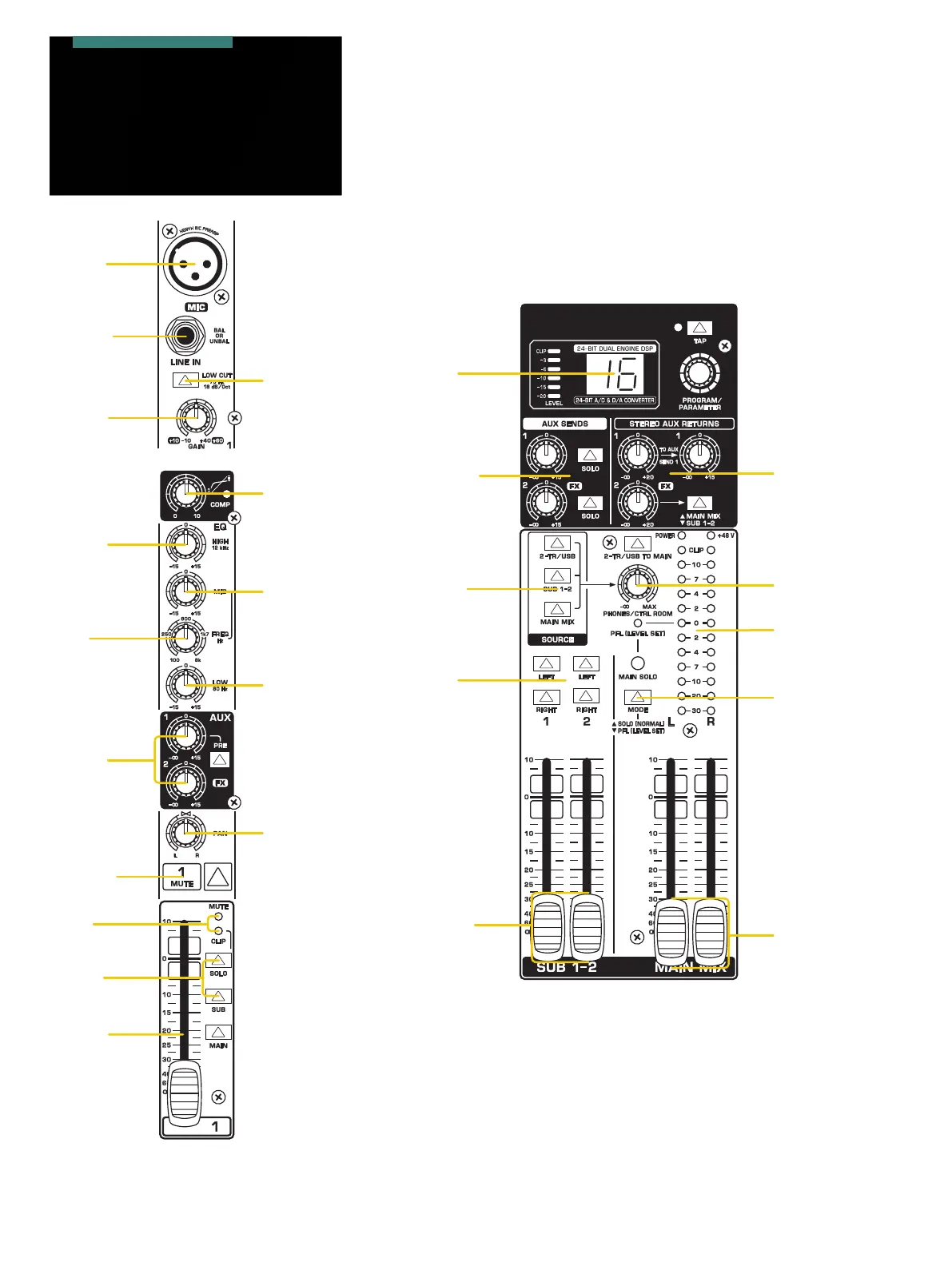

X1622USB Front Panel
Mid Frequency,
variable
100 Hz – 8 kHz
XLR mic input
with XENYX
preamp
¼" balanced/
unbalanced input
Low Cut lter
removes unwanted
infrasonics
Gain control
adjusts input
signal level
Compressor
knob adjusts
compression
eect on channel
High EQ ±15
dB, centered
@ 12 kHz
Mid level ±15 dB,
variable center
frequency
Low EQ ±15 dB,
centered @ 80 Hz
Aux Sends
for Monitors
(pre/post)
and FX
Pan control
adjusts position
of signal in
stereo image
Mute switch
removes signal
from Main Mix
Mute &
Clip LEDs
Solo &
Sub/Main
assignment
switches
Channel
fader adjusts
signal level in
Main Mix
Aux Sends 1 & 2
with Solo switches
Phones/CTRL Room
level control
Onboard FX
processor,
16 presets,
two parameter
controls
12-tier VU meter with
+48 V and Power LEDs
Sub 1-2 faders
Sub 1-2
Left/Right
assignment
switches
VU meter
mode switch
Stereo Aux
Returns 1 & 2
with additional
routing options
Phones/CTRL
Room source
mixing matrix
Main Mix faders
