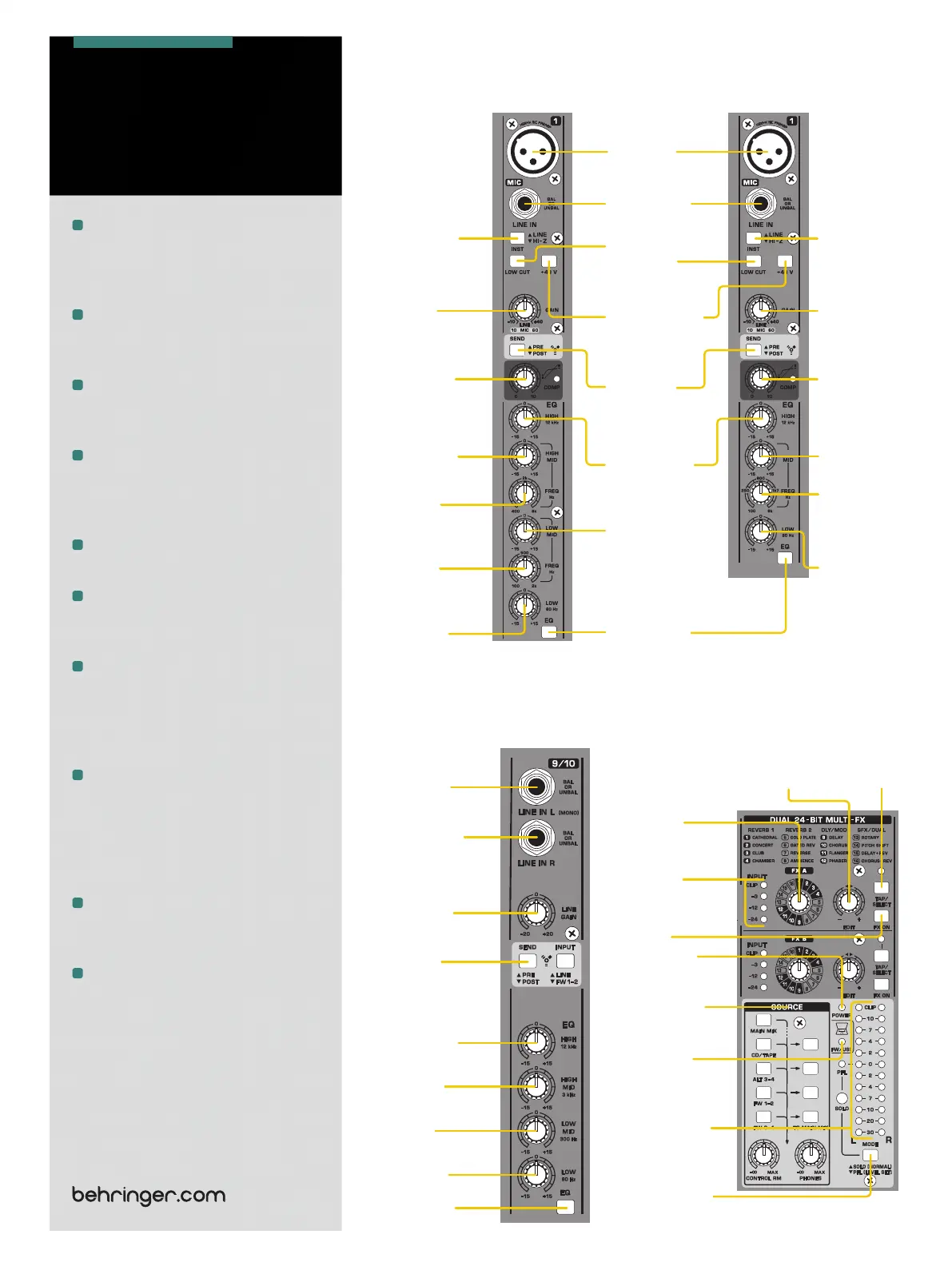

UFX1604 channel strip UFX1204 channel strip
Gain control
adjusts input
signal level
Gain control
adjusts input
signal level
Compressor knob
with threshold LED
adjusts eect on
mono channel
Mid EQ ±15 dB,
variable frequency
XLR mic input
with XENYX preamp
INST switch allows
Hi-Z guitars/basses
to connect directly
without requiring DI
box (CH 1 & 2 only)
INST switch
allows Hi-Z
guitars/basses
to connect
directly without
requiring DI box
(CH 1 & 2 only)
Low Cut
switch eliminates
signal content
below 80 Hz
FireWire Send
switch selects
Pre/Post EQ signal
for FireWire bus
High EQ ±15 dB,
centered @ 12 kHz
High Mid
EQ sweepable
Frequency control
Mid EQ
sweepable
Frequency control
Low Mid
EQ sweepable
Frequency control
Low EQ ±15 dB,
centered @ 80 Hz
Low EQ ±15 dB,
centered @ 80 Hz
¼" balanced/
unbalanced input
+48 V phantom
power switch for use
with condenser mics
Compressor knob
with threshold
LED adjusts eect
on mono channel
High Mid EQ ±15 dB,
variable frequency
Low Mid EQ ±15 dB,
variable frequency
EQ switch toggles
EQ on/bypass
UFX Series Stereo Channel Strip UFX Series FX Processor
Left ¼" balanced/
unbalanced Line
Input (Mono)
Tap/Select buttons
allow direct entry
of tempo of eect
Edit knob adjust
FX parameters
FX A/B knob selects
which eect is
applied to signal
(UFX1204 has
single processor)
FX INPUT
level meter(s)
FX On button
toggles eect
on and o
Power LED lights
when power is present
Source section
controls for routing
and level control
FW/USB LED lights
when computer
is connected
12-tier LED
ladder displays Main
Output signal level
MODE button toggles
channel Solo buttons
between Solo in Place and
Pre-Fader Listen (PFL)
Right ¼" balanced/
unbalanced Line Input
Gain control adjusts
input signal level
FireWire Send
switch selects
Pre/Post EQ signal
for FireWire bus
High EQ ±15 dB,
centered @ 12 kHz
Low Mid EQ,
centered @ 300 Hz
EQ switch toggles
EQ on/bypass
High Mid EQ ±15
dB, centered @
3 kHz
Low EQ ±15 dB,
centered @ 80 Hz
Integrated 16-track USB recorder
allows for instant recordings of your
studio or live sessions on a simple
USB stick
Neo-classic “British” EQs with
semi-parametric mid band(s) for
warm and musical sound
Illuminated MIDI Transport
section to remote-control
your DAW/Sequencer on PC/Mac
2 HI-Z inputs for direct connection of
guitars, 4/8 Channel Inserts and
balanced Main Mix outputs on
¼" TRS and XLR connectors
Solo-In-Place with PFL/AFL function
plus full-featured Talkback section
Comprehensive Monitor section with
separate level controls for speaker
and headphones outputs
Long-wearing 100-mm
logarithmic-taper faders
(UFX1204 only for MAIN MIX fader,
channel faders are 60 mm) and
sealed rotary controls
“Planet Earth” switching power
supply for maximum exibility
(100 - 240 V~), noise-free audio,
superior transient response plus
low power consumption for
energy saving
High-quality components and
exceptionally rugged construction
ensure long life
Conceived and designed by
BEHRINGER Germany
XENYX
UFX1604/
UFX1204
