24 25XENYX UFX1204 Quick Start Guide
XENYX UFX1204 Getting started
(EN) Step 3: Getting
started

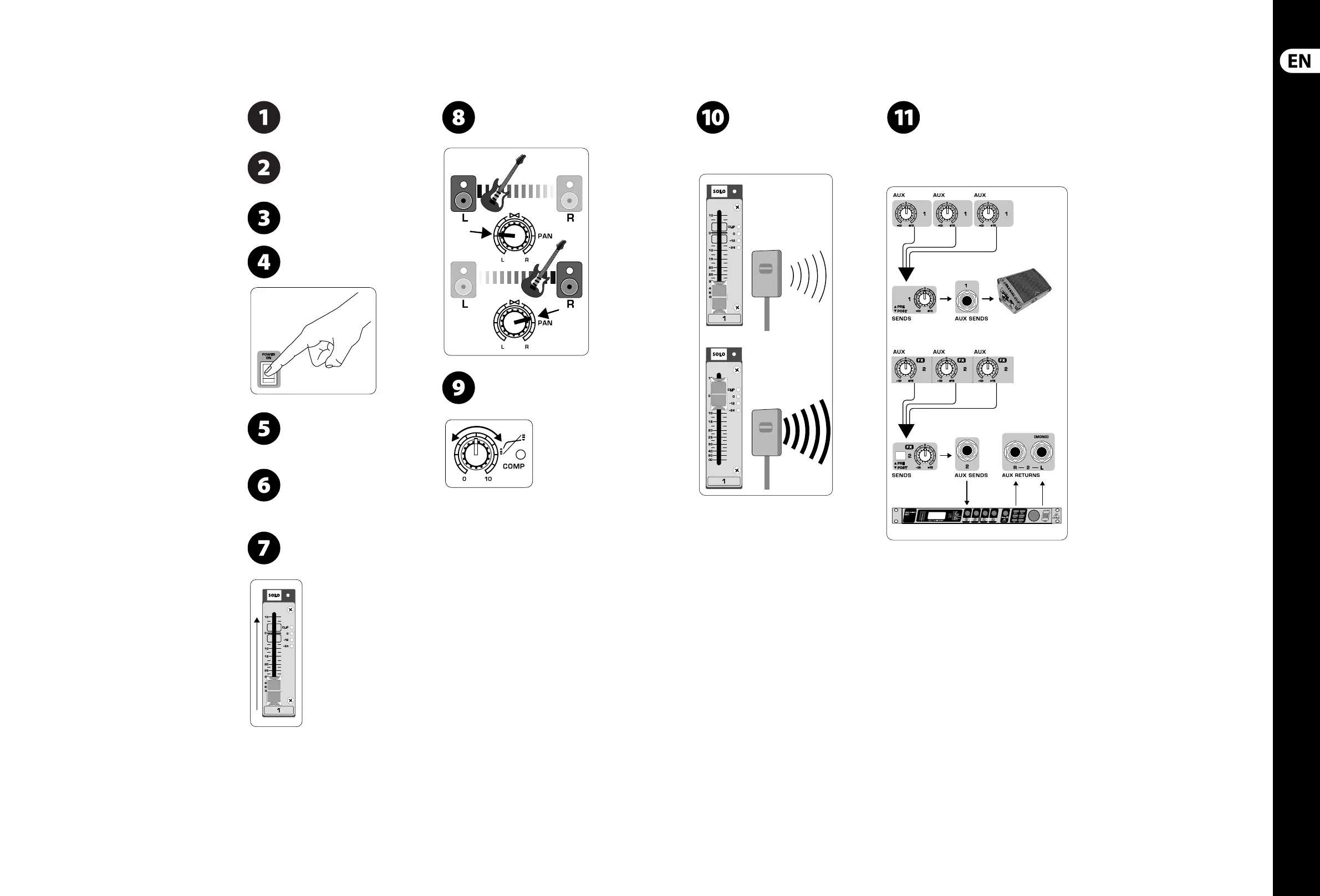

Make sure the power to all devices is
turned o .
Connect all appropriate power, audio and
FireWire/USB cables to the mixer.
Set all faders to the down position,
PAN/BAL knobs centered and all other
knobs (except EQ) all the way left.
Turn the mixer on.
With the MAIN MIX fader, PHONES,
CONTROL RM, and ALT 3-4 knobs all the
way down, turn your PA system or
powered monitors on.
Slowly raise the MAIN MIX fader, PHONES,
CONTROL RM and ALT 3-4 knobs to 0 or
the desired level.
See “Step 4: Gain Setting” for more information.
Adjust the level of connected
microphones and instruments by raising
each CHANNEL FADER.
Adjust the left-right position of a channel
in the stereo eld if necessary by turning
the channel’s PAN or BAL knob.
Adjust the COMP knob to add
compression to an input if necessary.
For live applications, adjust the overall
output from the mixer to the power
amp or powered speakers by raising the
MAIN MIX fader. If the CLIP LEDs on the
VU METER light, lower the MAIN MIX fader.
Use the channel AUX knobs and master
AUX SEND knob to send the channel
signals to an e ects processor or stage
monitor connected to the AUX SEND jacks. If used
for e ects, route the signal back from the processor
to the AUX RETURN jacks.
