1 – crossbeam; 2 – lubricating box.

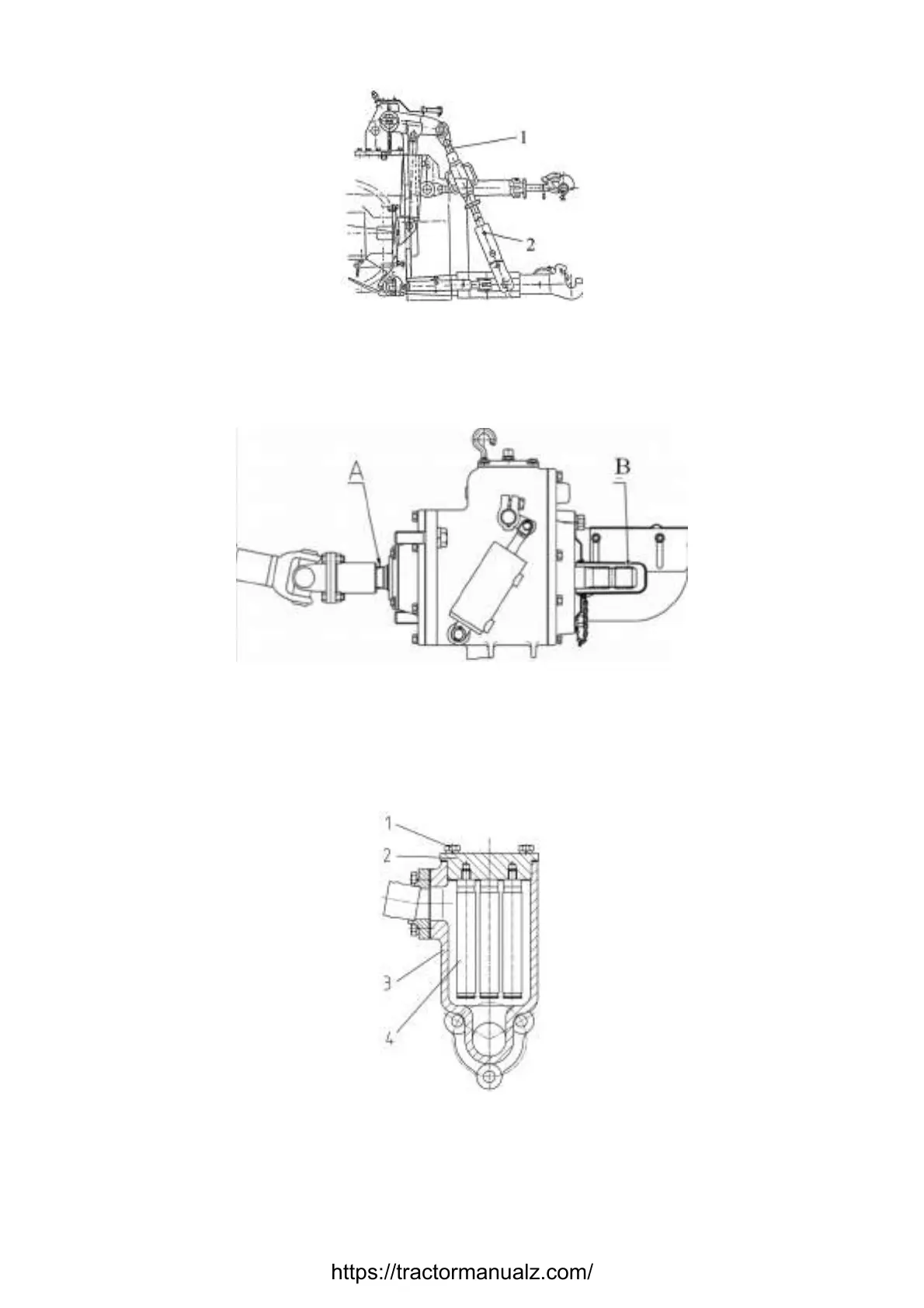

Figure 6.4.34 – Oil RLL crossbeam yokes
6.4.4.10 Task 45. Cleaning and oiling of sline joints of the front PTO shaft
Lubricate sline joints “А” and “B” with some graphite grease (Figure 6.4.35) GOST
3333-80, or similar.
Figure 6.4.35 – Oiling of sline joints of the front PTO shaft scheme
6.4.4.12 Task 46. Cleaning of magnetic filter of the transmission hydraulic system
To clean magnetic filter, perform the following actions:
- unscrew four bolts 1 (Figure 6.4.36) and remove cap 2;
- clean with rags four magnetic arresters 4;
- install the cap 2 into the housing 3 and fix it with bolts 1.
1 – bolt; 2 – cap; 3 – housing; 4 – magnetic arrester.
Figure 6.4.36 – Cleaning of magnetic filter of the transmission hydraulic system
