3522.5-0000010 РЭ
73

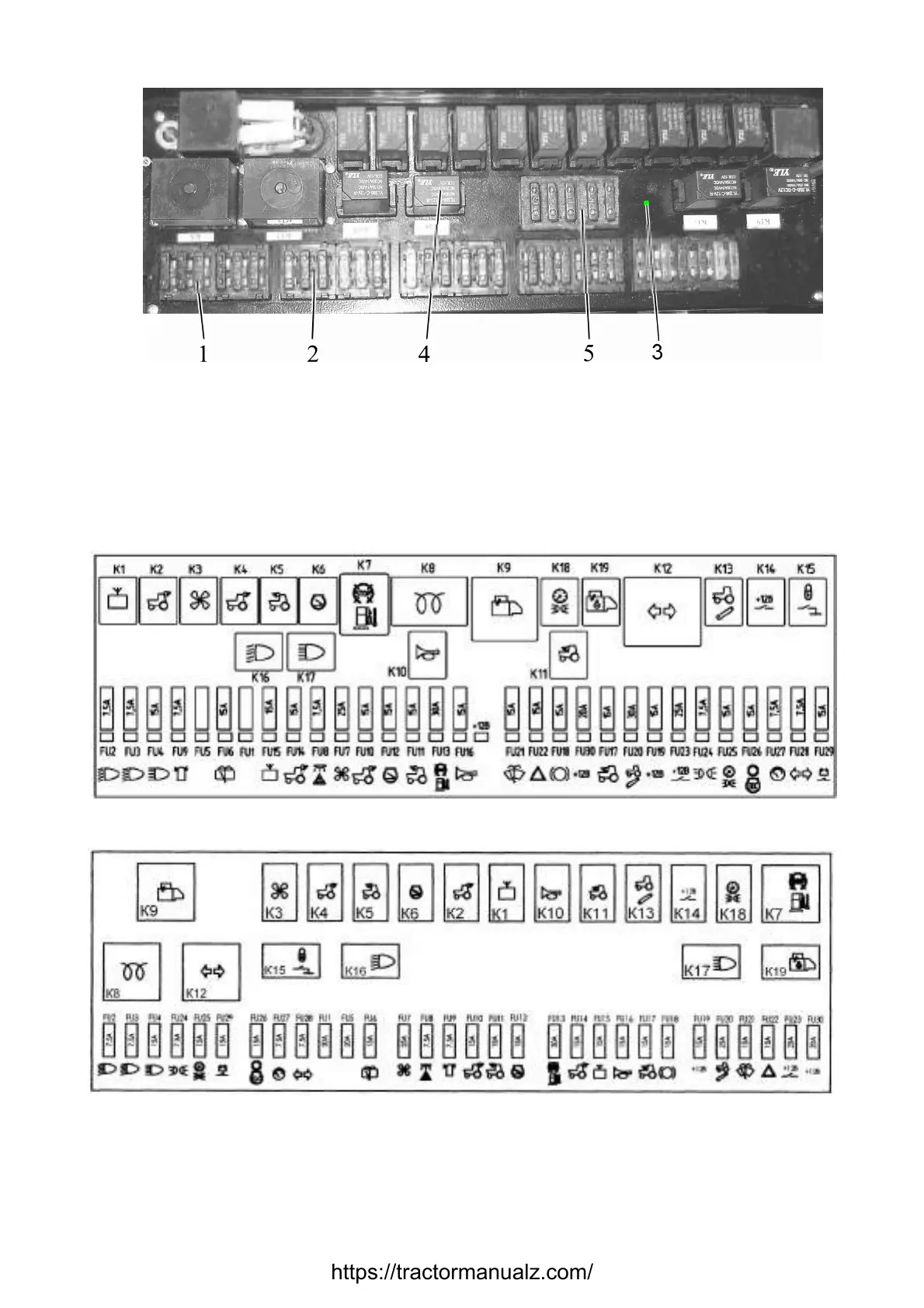

b) БК-1
1 – cutout fuse; 2 – signal led lamp of red color; 3 – signal led lamp of green color; 4
– electromagnetic relay; 5 – set of spare fuses.
Figure 2.18.2 – Switching unit
Diagram of fuses and relay location in the switching unit is presented in figure
2.18.3.
а) Diagram of fuses and relay location in БКА-7.3722
b) Diagram of fuses and relay location in БК-1
Figure 2.18.3 – Diagram of fuses and relay location in the switching unit
