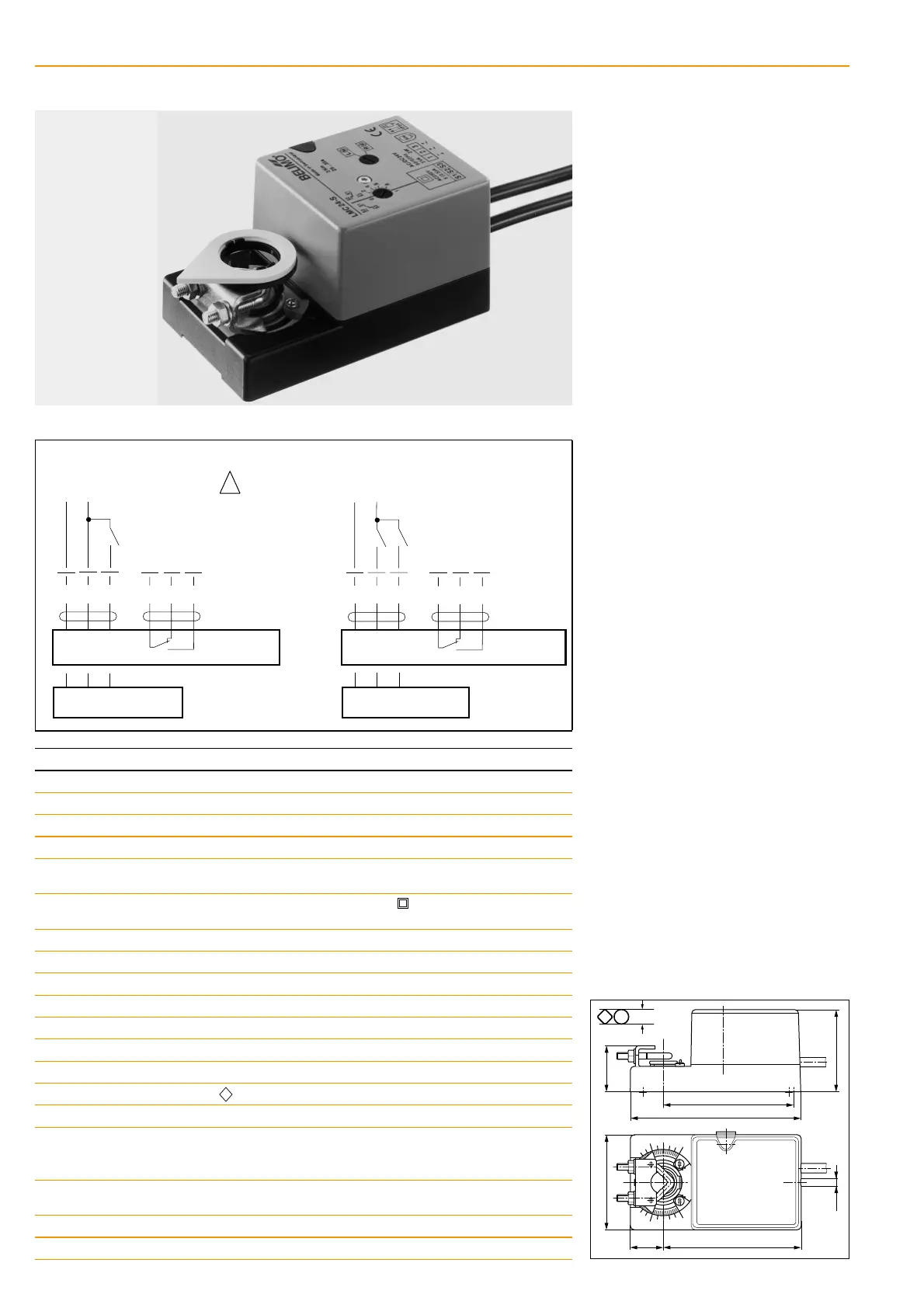

Belimo LMC24 User Manual

LMC24, LMC24-S Damper actuators 2 Nm
4
0
1
94.1
89
116.2
22.1
66.2
5.2
59
33.5
6...16
d0001805
Application
The type LMC24(-S) is intended for the
operation of air control dampers in venti-
lation and air-conditioning systems.
Mode of operation
Open/Close control by single-wire or
2-wire system.
Product features
Simple direct mounting on the damper
spindle by universal spindle clamp. An
antirotation device is supplied to prevent
unwanted rotation of the whole unit.
Manual operation by self-resetting push-
button
when necessary (the gearing is
disengaged while the pushbutton is held
depressed).
Adjustable angle of rotation with me-
chanical stops.
High functional reliability
The actuator is overload-proof, needs no
limit switches and halts automatically at
the end stops.
Flexible signalling 0…100%, with adjust-
able auxiliary switch (LMC24-S only).
Mounting instructions, page 6
Adjusting auxiliary switch LMC24-S,
page 7.
Important
Read the notes about the use and torque
requirements of the damper actuators on
page 2.
Dampers up to approx. 0.4 m
2
Open/Close actuator
(AC/DC 24 V)
Single-wire or 2-wire control
Running time < 35 s
Dimensions
Subject to technical changes / 01.00
Direction of rotation selected with L/R switch
Torque min. 2 Nm (at rated voltage)
Angle of rotation max. 95° (adjustable by mechanical stops)
Running time 25… 35 s
(0… 2 Nm)
Power consumption 2 W
For wiring sizing 3 VA
Nominal voltage AC 24 V 50/60 Hz, DC 24 V
Nominal voltage range AC/DC 19.2…28.8 V
Manual operation pushbutton, self-resetting
Auxiliary switch
(LMC24-S) 1 × SPDT 5(2.5) A, AC 250 V
– Switching point adjustable 0…100% 
Connecting cable – motor 1 m long, 3 × 0.75 mm
2
– auxiliary switch (LMC24-S) 1 m long, 3 × 0.75 mm
2
Technical data LMC24, LMC24-S
Position indication mechanical with pointer
Protection class
(safety low voltage)
Maintenance maintenance-free
Weight 610 g
Degree of protection IP 54
(bottom cable entry)
EMC CE according to 89/336/EEC, 92/31/EEC, 93/68/EEC
Low Voltage Directive CE according to 73/23/EEC
Ambient temperature range – 30… + 50 °C
Non-operating temperature – 40… + 80 °C
Humidity test to EN 60335-1
Sound power level max. 45 dB(A)
1
23
LMC24-S
S1 S2 S3
0...100%
Single-wire control
1
23
LMC24-S
S1 S2 S3
0...100%
2-wire control
Wiring diagram
Connect via
safety isolating
transformer
T
~
AC 24 V
-
+
DC 24 V
T
~
AC 24 V
-
+
DC 24 V
T
~
-
+
~
+
T
~
-
+
~
+
T
~
-
+
~
+
LMC24
T
~
-
+
~
+
LMC24
!
Parallel connection of several
actuators is possible. Power
consumption must be observed.
ap019901aw089001
III
BC
