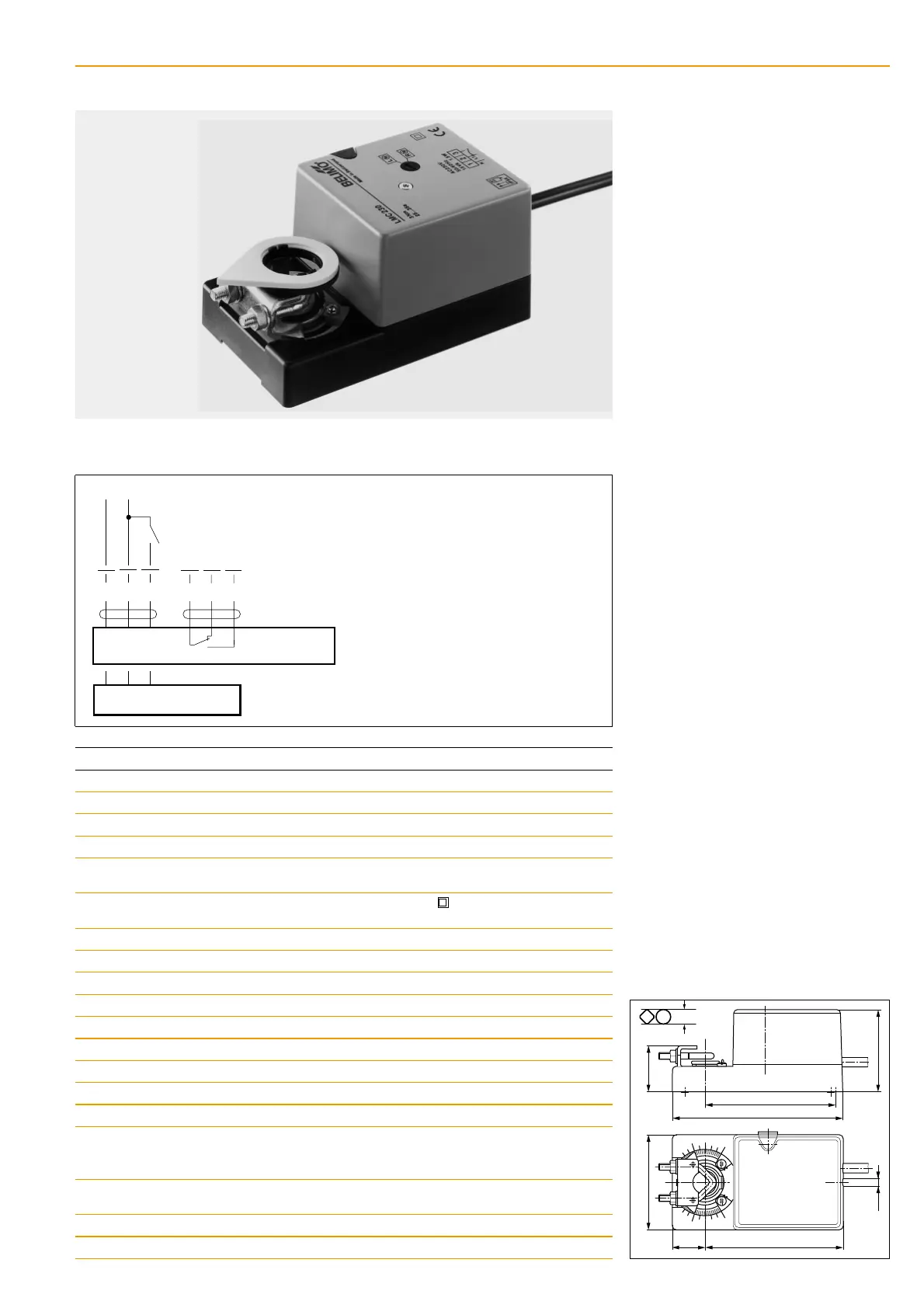

LMC230, LMC230-S Damper actuators 2 Nm
5
Dimensions
0
1
94.1
89
116.2
22.1
66.2
5.2
59
33.5
6...16
d0001805
1
23
LMC230-S
S1 S2 S3
0...100%
Wiring diagram
N L1 AC 230 V
LMC230
Parallel connection of several actuators
with 1 - wire control possible.
Power consumption must be observed.
To isolate from the main power supply, the system
must incorporate a device which disconnects the
phase conductors (with at least a 3 mm contact gap).
Subject to technical changes / 01.00
Application
The type LMC230(-S) is intended for the
operation of air control dampers in venti-
lation and air-conditioning systems.
Mode of operation
Open/Close control by single-wire system.
Product features
Simple direct mounting on the damper
spindle by universal spindle clamp. An
antirotation device is supplied to prevent
unwanted rotation of the whole unit.
Manual operation by self-resetting push-
button
when necessary (the gearing is
disengaged while the pushbutton is held
depressed).
Adjustable angle of rotation with me-
chanical stops.
High functional reliability
The actuator is overload-proof, needs no
limit switches and halts automatically at
the end stops.
Flexible signalling 0…100%, with adjust-
able auxiliary switch (LMC230-S only).
Mounting instructions, page 6
Adjusting auxiliary switch LMC230-S,
page 7.
Important
Read the notes about the use and torque
requirements of the damper actuators on
page 2.
Dampers up to approx. 0.4 m
2
Open/Close actuator (AC 230 V)
Control by single-pole contact
(single-wire control)
Running time < 35 s
Direction of rotation selected with L/R switch
Torque min. 2 Nm
(at rated voltage)
Angle of rotation max. 95°
(adjustable by mechanical stops)
Running time 25… 35 s (0… 2 Nm)
Power consumption 1.5 W
For wiring sizing 15 VA
Nominal voltage AC 230 V 50/60 Hz
Nominal voltage range AC 198...264 V
Manual operation pushbutton, self-resetting
Auxiliary switch
(LMC230-S) 1 × SPDT 5(2.5) A, AC 250 V
– Switching point adjustable 0…100% 
Connecting cable – motor 1 m long, 3 × 0.75 mm
2
– auxiliary switch (LMC230-S) 1 m long, 3 × 0.75 mm
2
Technical data LMC230, LMC230-S
Position indication mechanical with pointer
Protection class II
(all insulated)
Maintenance maintenance-free
Weight 610 g
Degree of protection IP 54
(bottom cable entry)
EMC CE according to 89/336/EEC, 92/31/EEC, 93/68/EEC
Low Voltage Directive CE according to 73/23/EEC
Ambient temperature range – 30… + 50 °C
Non-operating temperature – 40… + 80 °C
Humidity test to EN 60335-1
Sound power level max. 45 dB(A)
aw090001
ap020901
