Belimo NF24A - Dimensions and Dimensional Drawings; Variant 1 a: 3;4-Spindle Clamp (EU Standard); Variant 1 b: 1-Spindle Clamp (EU Standard); Variant 2: 1;2-Spindle Clamp (Optional)

www.belimo.com T2-NF24A • en • v1.1 • 06.2011 • Subject to changes 3 / 3
Technical data sheet NF24A
Dimensions [mm]

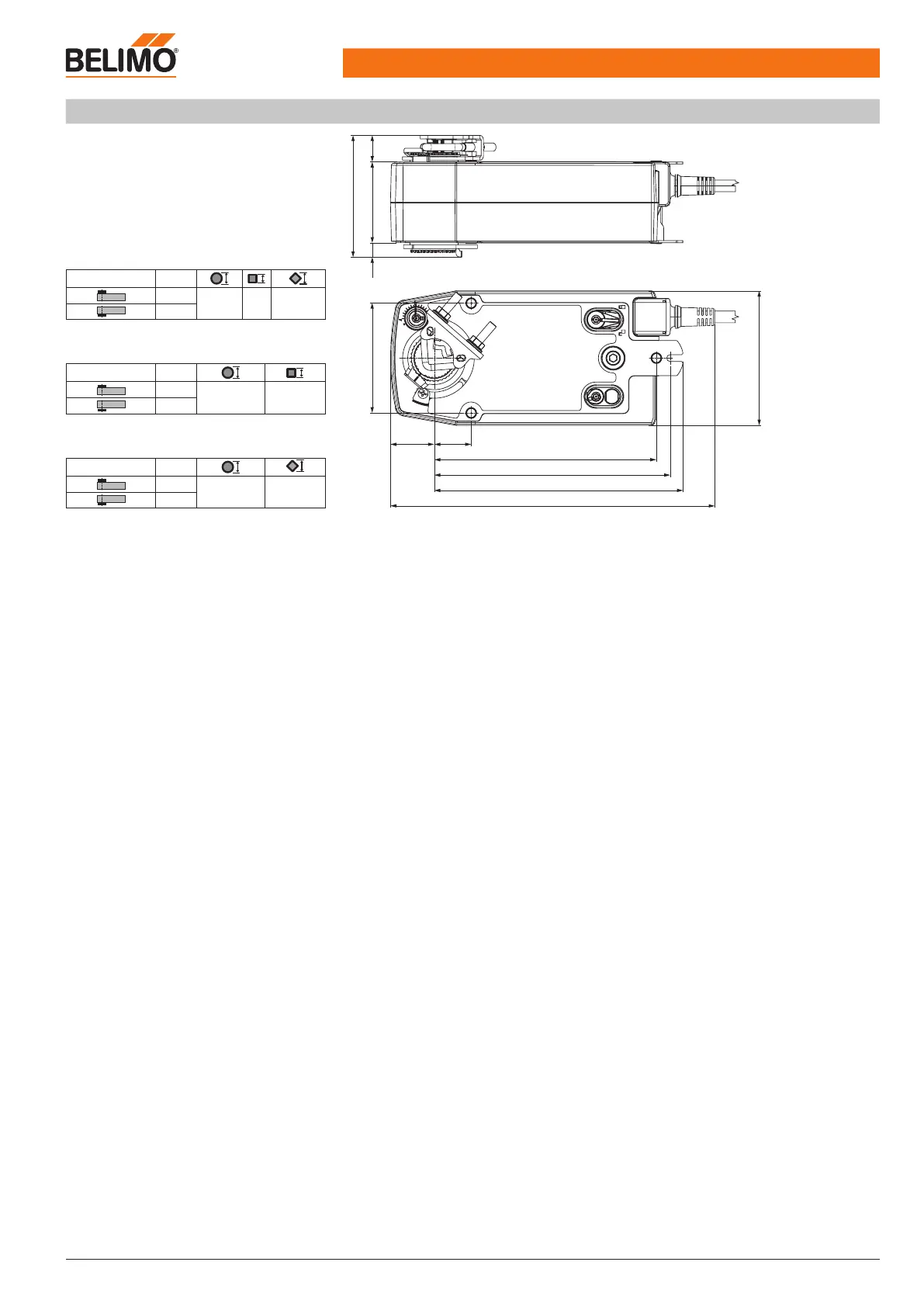

Dimensional drawings
60 20.512.5
93
2
-F
R
O
N
T
32 27
162
172
182
236
98
80
Variant 1a:
¾“-spindle clamp (with insertion part) EU Standard
Damper spindle Length
≥85
10 ... 22 10 14 ... 25.4
≥15
Variant 1b:
1“-spindle clamp (without insertion part) EU Standard
Damper spindle Length
≥85
19 ... 25.4
(26.7)
12 ... 18
≥15
Variant 2:
½“-spindle clamp (optional via conguration)
Damper spindle Length
≥85
10 ... 19 14 ... 20
≥15
