Belkin N600 DB User Manual

4
GETTING STARTED
If the page does not load, then try visiting
http://192.168.2.1 to see the router homepage.

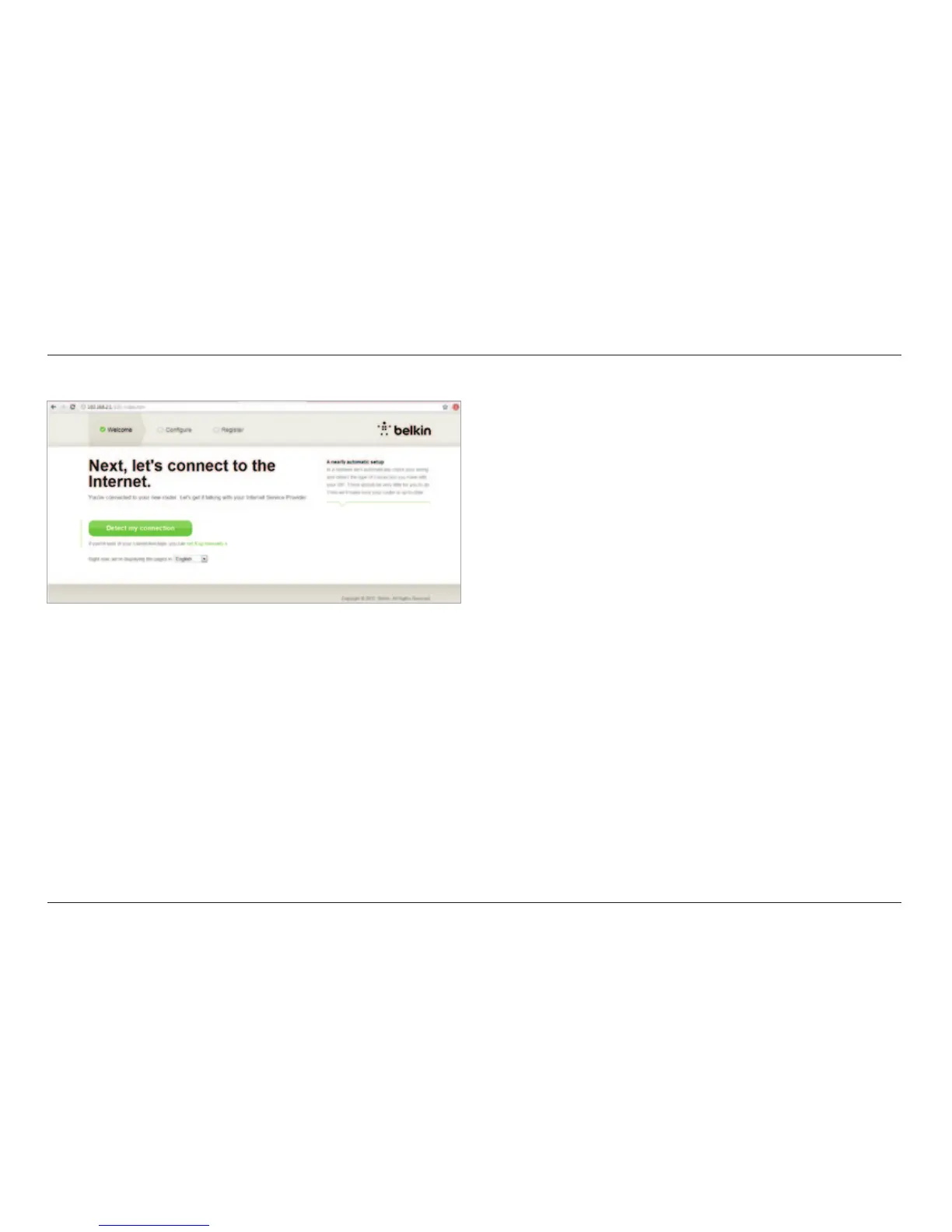

Click the “Detect my connection” button in green. (If
you would rather set up the Router manually, click the
“set it up manually” link and proceed to page 11.)
After several moments, your Router should automatically detect
your Internet connection and restart. This can take anywhere from
30 seconds to 3 minutes depending on your connection type.
If your Router is unable to establish an Internet connection
on its own, you may be asked to restart your modem or
provide a username and password if your connection requires
one. Follow the on-screen instructions provided.

Belkin N600 DB Specifications

General

Frequency Bands	2.4 GHz, 5 GHz
Ports	4x 10/100 Ethernet LAN, 1x 10/100 Ethernet WAN
USB Ports	1x USB 2.0
Security	WPA, WPA2, WEP
Antennas	Internal
Wireless Standard	802.11a/b/g/n
Max Data Rate	300 Mbps (2.4 GHz), 300 Mbps (5 GHz)
