Bell B40E 6X6 ADT User Manual

OPERATION
OPERATING COMPONENTS

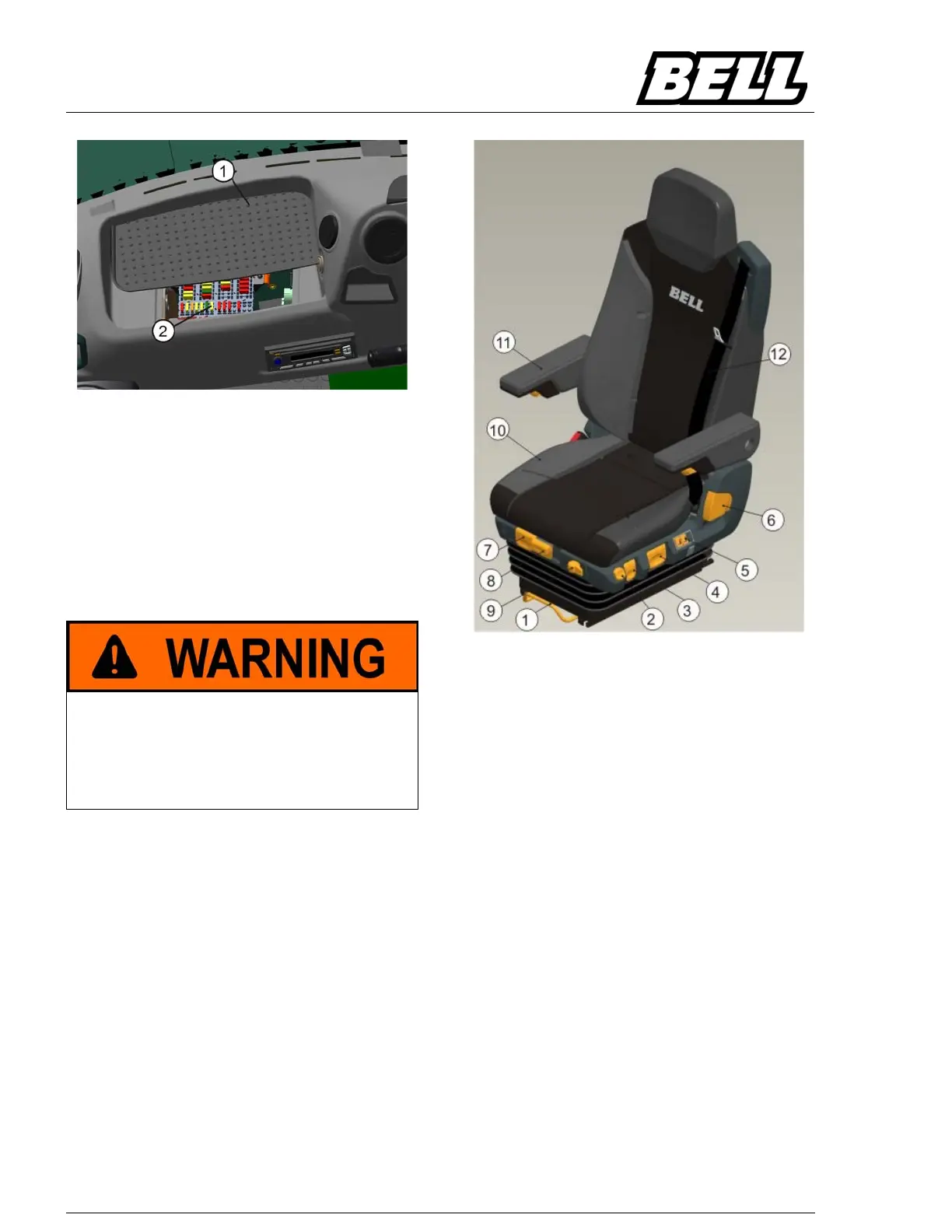

Figure 1
To gain access to the fuses, diodes and relays(2),
the cover (1) must be removed first.
There is an identification decal underneath the
cover (1). Refer to decals section in the Safety
Chapter for fuses, diodes and relays layout.
Operator Seat
Before operating the machine, the operator should adjust
the seat for his/her own height and weight. Improper ad-
justment of the seat, could compromise the ride comfort
and operator's ability to control the machine.
In order to optimize the seat's vibration damping ca-
pabilities, the seat height should be adjusted to the
mid-point of total vertical suspension travel range.
1. Horizontal Adjustment
2. Air Dump Valve
3. Shock Absorber Adjustment
4. Height Adjustment
5. Lumbar Support (LS)
6. Back Rest Adjustment
7. Tilt Adjustment
8. Seat Cushion Length Adjustment
9. Horizontal Suspension
10. Seat Heating
11. Armrest
12. 3 - Point Seat Belt
The operator’s seat is fully adjustable to suit the
operator.
Horizontal Adjustment
To adjust position of seat forward or backward, pull
lever (1) firmly while sliding the seat horizontally
forward/backward. Release lever when desired
position is reached.
