OPERATION
OPERATING COMPONENTS

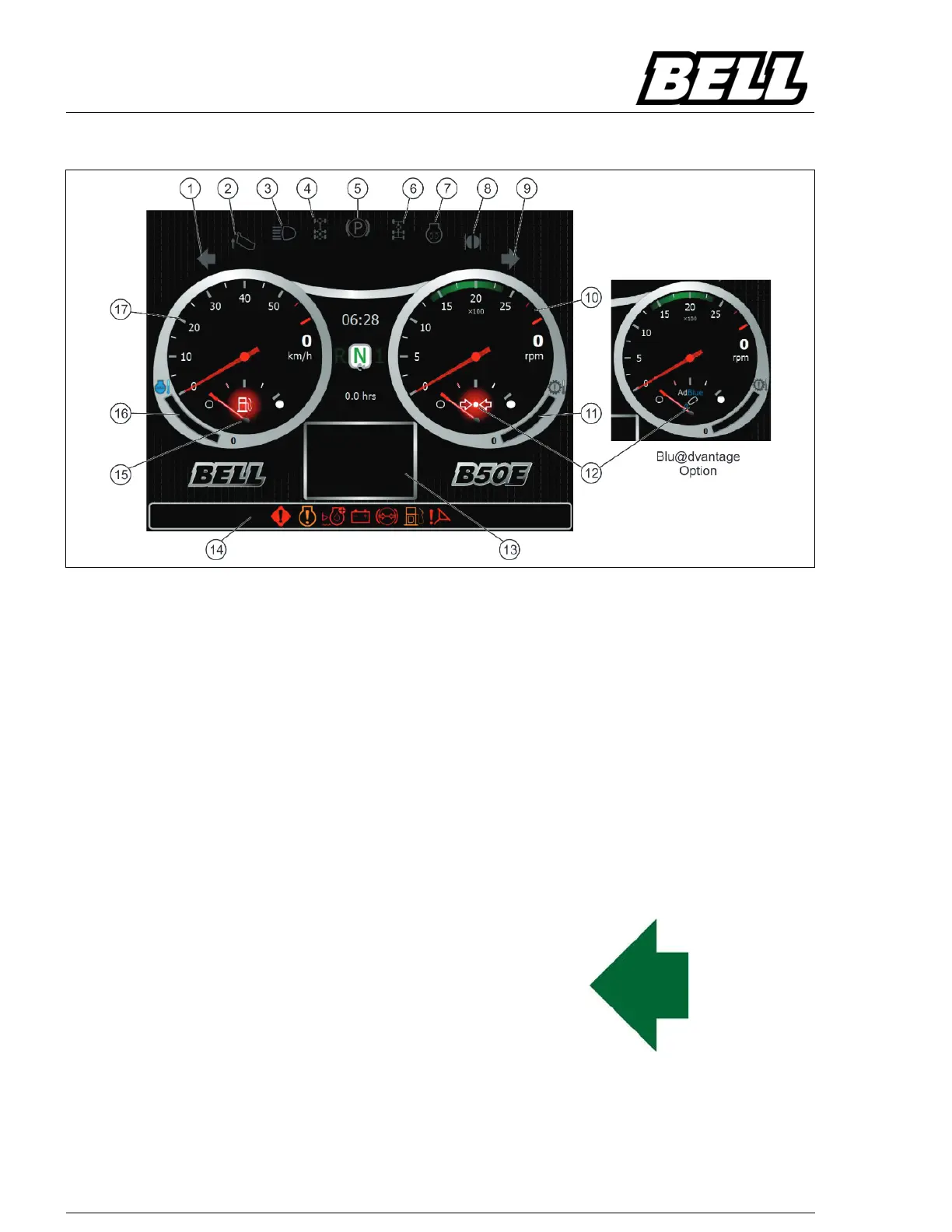

Warning/Indicator Lights
NOTE
All warning lights on the SDC are illuminated for about 2 seconds when the ignition is
switched on. This is done as a screen check procedure and the operator shouldensure
that the screen is operating correctly.
1. Left Turn Indicator Light
2. Bin Raised Warning Light
3. High Beam Indicator Light
4. Controlled Traction Differential Lock Light
5. Park Brake Warning Light
6. Inter Axle Differential Lock Light
7. Cold Start Warning Light
8. Retarder Light
9. Right Turn Indicator Light
10. Engine Speed (Rev Counter)
11. Transmission Oil Temperature Gauge
12. DEF / AdBlue® (Blu@dvantage Models) Level
in Tank
Pneumatic Pressure Level (Standard Trucks)
13. Interactive Display Screen
The selection between various information
screens can be done using the B-drive.
14. Fault Warning Panel
A text description for any warning light will be
displayed in the Interactive Display Screen
(13).
15. Fuel Level in Tank
16. Engine Coolant Temperature Gauge
17. Machine Travel Speed
Left Turn Indicator Light
The left turn indicator light (1) will flash when the
steering column switch is moved to indicate a left
turn.
If the hazard switch is ON both direction indicators
flash with the steering column switch in the OFF
position. When the steering column switch is moved
