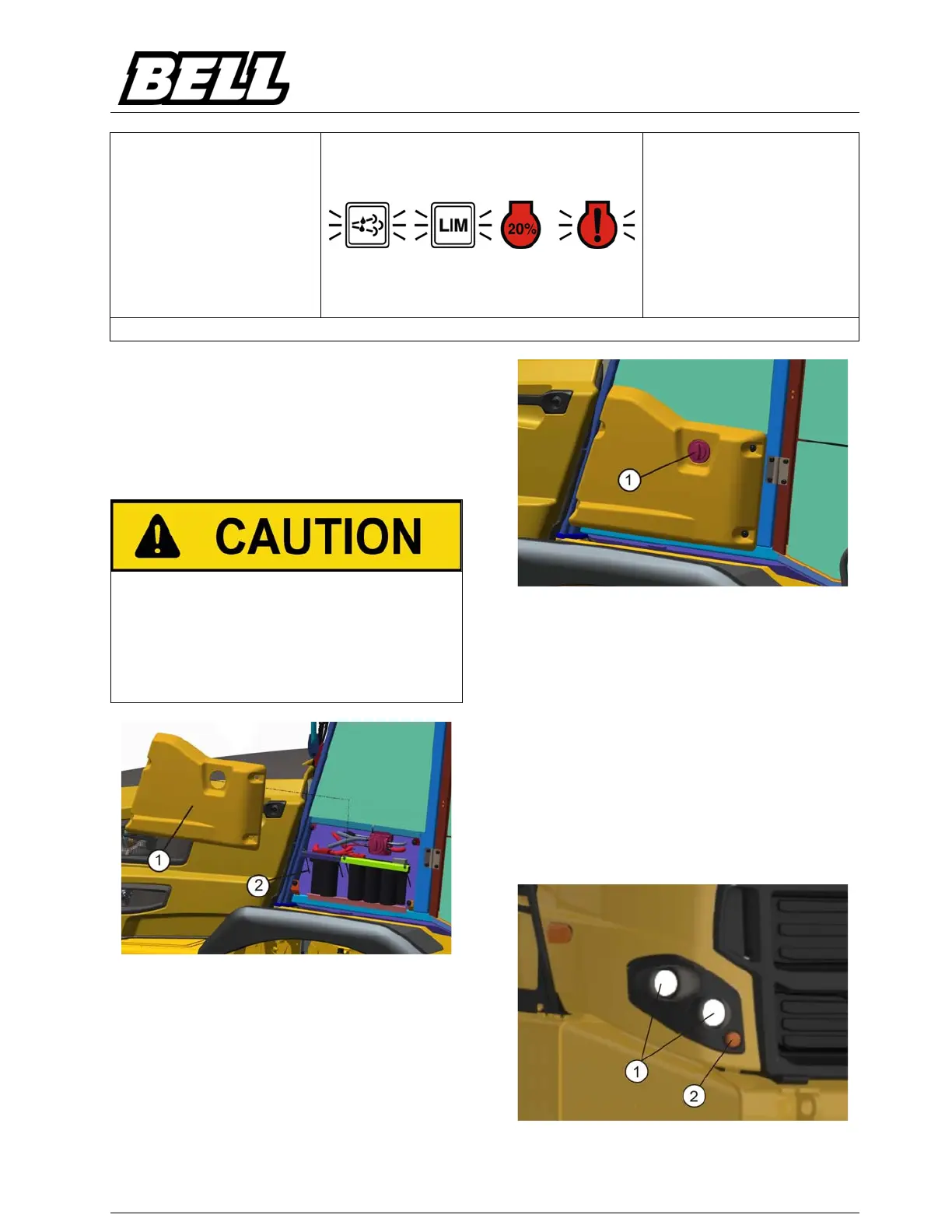

OPERATION
OPERATING COMPONENTS
240min after trigger DEFLampflashing1Hz,
LIM Lamp flashing 1Hz,
AWL solid,
Stop Engine Lamp flashing 1Hz,
maximum available engine torque is
reduced to 20% of peak torque and
maximum speed is reduced idle
speed.
External Components
Battery Box
Always switch OFF the battery isolator switch when the
engine is shut down and the machine is left unattended.
If the switch is left ON for long periods while the engine
is shut down, the batteries may become discharged.
Always switch OFF the battery isolator switch before
any maintenance or repair is performed on the ma-
chine’s electrical system or any welding work is
performed.
Battery Box Cover (1)
Battery Box (2)
The battery box is located on the front, left of the
operator's cab.
The main components located in the battery box
are the two batteries, circuit breakers and the
battery isolator switch.
NOTE
Switch is shown in "OFF" position.
The battery isolator switch (1) is used to isolate the
electrical power from the batteries to the machine.
The battery isolator switch has two positions, OFF
and ON, the switch position is clearly marked on the
switch’s face plate.
Lights
Front Lights
The front of the machine is equipped with two front
light units, headlights (1) and indicators (2).
