OPERATION
OPERATING COMPONENTS
Tilting And Lowering Cab
The cab support is dimensioned to support an EMPTY
cab.
The machine’s cab is hinged so that it may be tilted
for access to the hydraulics and transmission
systems below.
Tilting Cab Up
Ensure that the cab is empty.
Never re-use cab mounting bolts. Always replace bolts
after loosening.
Do not work under the raised cab unless the cab rests
onto the Cab Locking Plate.
1. Park the machine on level ground with bin low-
ered and park brake on.
2. Shut down the engine.
3. Open the bonnet using the switch inside the
cab.
4. Close the cab door.
5. Turn off the battery isolator switch.
6. Ensure that the right hand side mirror is in the
normal operating position, and the left hand
mirror is folded towards the rear
7. Unscrew and remove the left hand side cab
mounting bolts.
8. Discard the mounting bolts.
NOTE

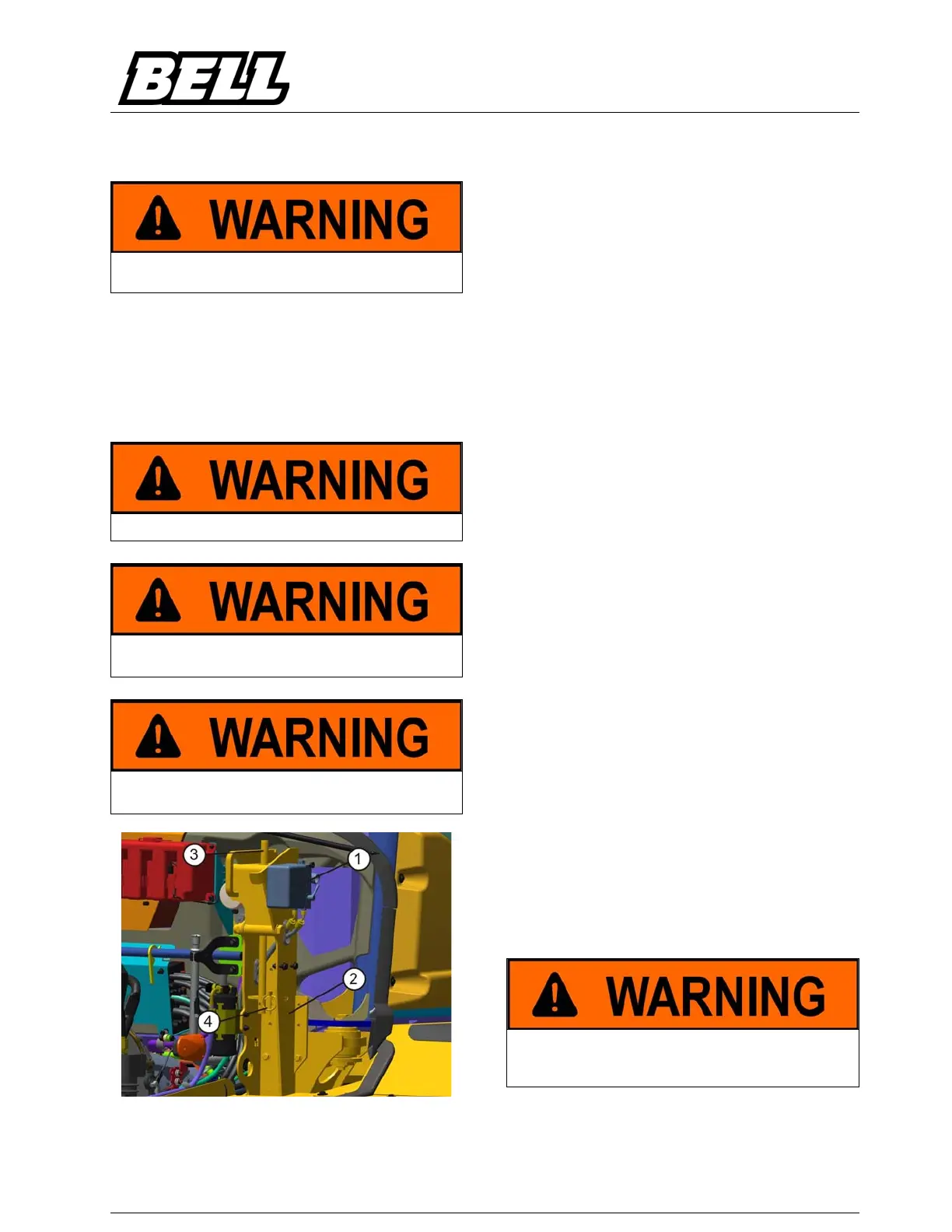

The cab tilt pump is located on the cab
stay structure on the left side of the en-
gine compartment.
9. Place directional valve lever in “Cab Raise”
position.
10. Insert the tilt pump lever (Stored inside the cab
stay structure) into the cab tilt pump and start
pumping to tilt the cab, observe and ensure that
the cab starts rising from the left hand side of
the truck.
11. The cab foot will start to push the cab locking
plate away, continue tiling the cab until the cab
locking plate has fallen underneath the cab foot
support landing.
12. Place the tilt pump lever into “Cab Lower" posi-
tion and lower the cab onto the cab locking
plate.
13. Store the pump lever into the storage place pro-
vide in the cab stay structure and lock it using
the lock pin (4) to prevent accidental disengag-
ing of the cab lock or use a lock-out device to
ensure that others cannot lower the cab during
under-cab maintenance.
Lowering Cab
Ensure both mountings are locked into position with new
mounting bolts and nuts.
Never re-use loosened mounting bolts and nuts.
1. Ensure that the cab area is free of obstructions.
2. Turn the directional valve to the “Cab Raise”
position.
3. Ensure that the cab door is closed.
