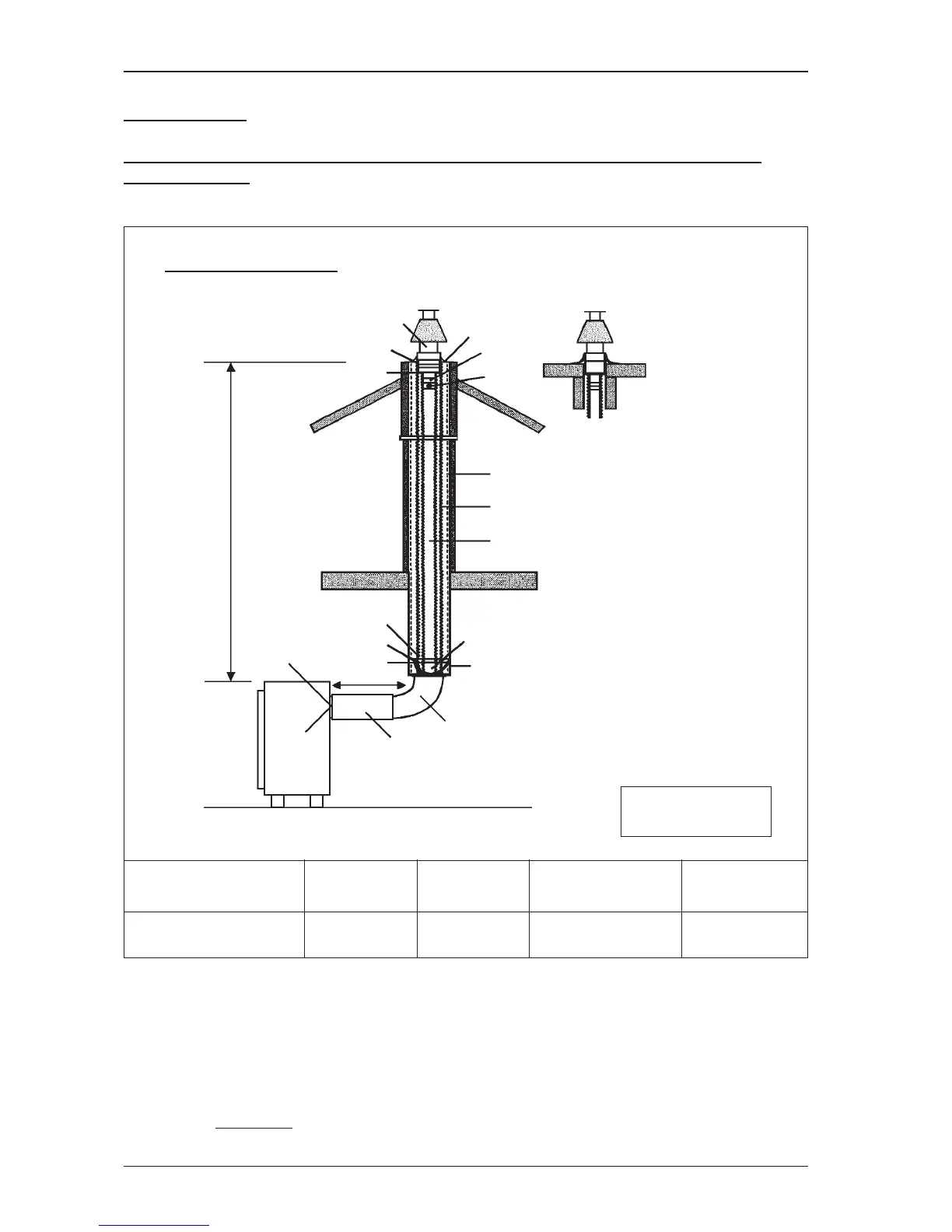

Figure 19: Vertical chimney outlet using an existing unsound lined
chimney or when no chimney liners are present
(Flexible Ø100 mm - Ø150 mm and/or rigid Ø100 mm - Ø150 mm)
32
31
29
29
30
18
4
2
28
10, 12, 13
14, 15
6
8
7
26
29
29
28
27
Y
X
SMART - BELL
FLEXIBLE CONCENTRIC FLUE Ø100 mm - Ø150 mm SYSTEM CONNECTION
POSSIBILITIES
REAR CONNECTION
Appliance: Distance X Distance Y
(min.-max.) (min.-max.)
Smart Bell 0 - 0,5 m 2,0 - 12,0 m -
ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION
Item descriptions:
see 3.4.2
Assemble
restriction plate
