Instructions for use and installation instructions
Important:
ll
ll
l Do not place any marble pebbles in front of the pilot light.
Make sure that the pilot light can burn freely over the main
burner.
ll
ll
l Keep the burner orifices unblocked
Only this way a proper ignition of the main burner is ensured.
Once the logs/stones/marble pebbles have been positioned, the door must be closed
again or the glass must be replaced. FINGER-TIGHTEN any bolts and/or screws used.
Do not over-tighten them as this may break the glass!
The frame can now be replaced. Note: Do not fit the frame until the wall has been
finished. Use the protective items supplied (gloves or cloth). Do not use masking
tape!
3.5.6 Mounting flue gas restriction plate
Depending on the length and shape of the concentric flue system and the chimney
construction, you should, if indicated, fit a restriction plate with a certain width (B), or
with a certain diameter (D) into the ceiling of the combustion chamber.
To do this, see the set-up options as listed in figure 9 through 21.
Important: Ensure that the correct flue gas restriction plate is mounted.
Use of the correct flue gas restriction plate will provide
optimum efficiency, flame effect and combustion. Mounting
an incorrect flue gas restriction plate can result in damage
to the gas fire.

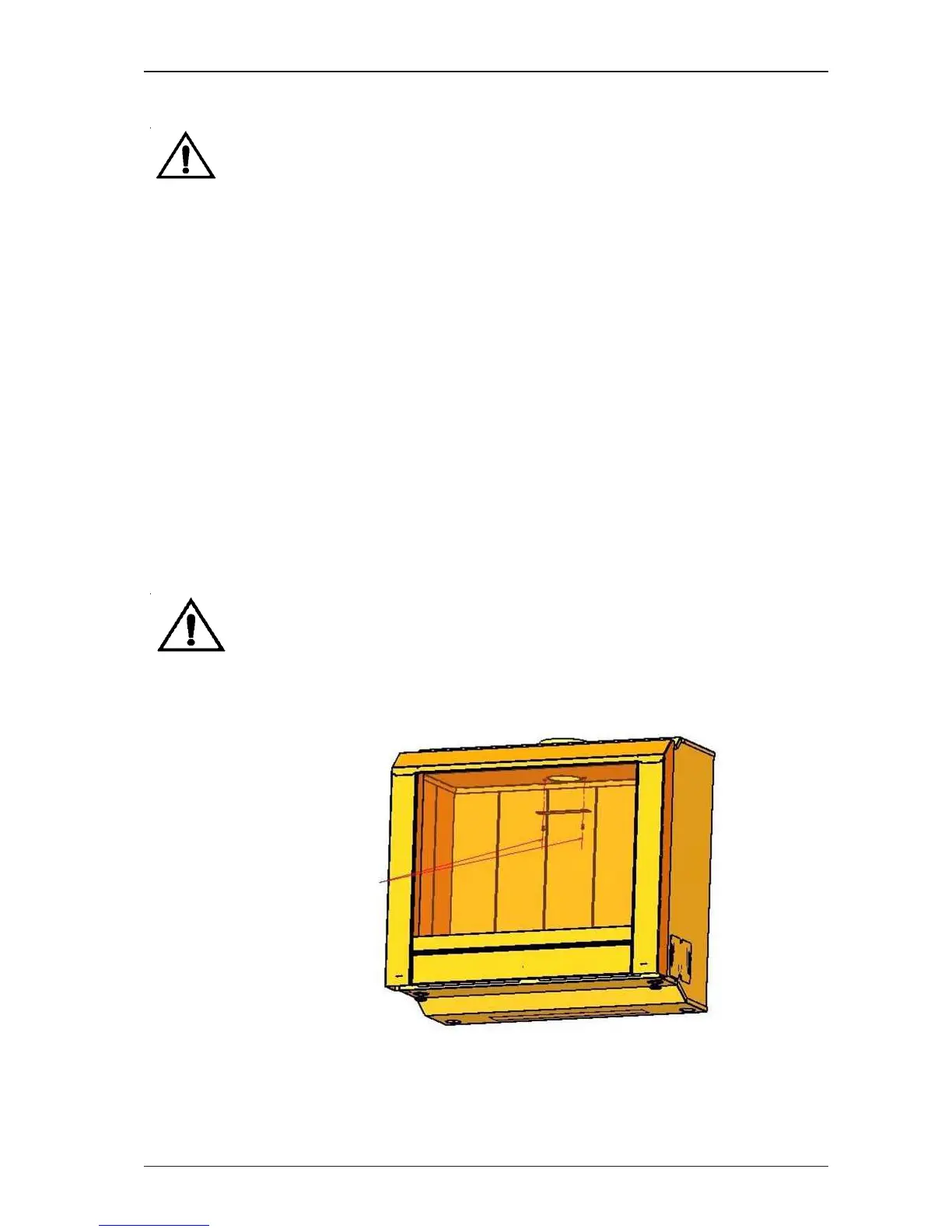

Figure 31: Positioning restriction plate
Assembly
restriction
plate
