Belling 900Ei - Page 65

USING YOUR APPLIANCE
Wiring colour code: Bk-Black, Bn-Brown, Bu-Blue, Gn-Green, Or-Orange, R-Red, W-White, Y-Yellow, V-Violet
12345
LLLNN
Bu
Bu
Connector
No.1
Connector
No.5
Connector
No.2
Connector
No.6
Earth point left
hand side in top
comparment
R
R
R
R
Bu
Bu
Gn
Gn

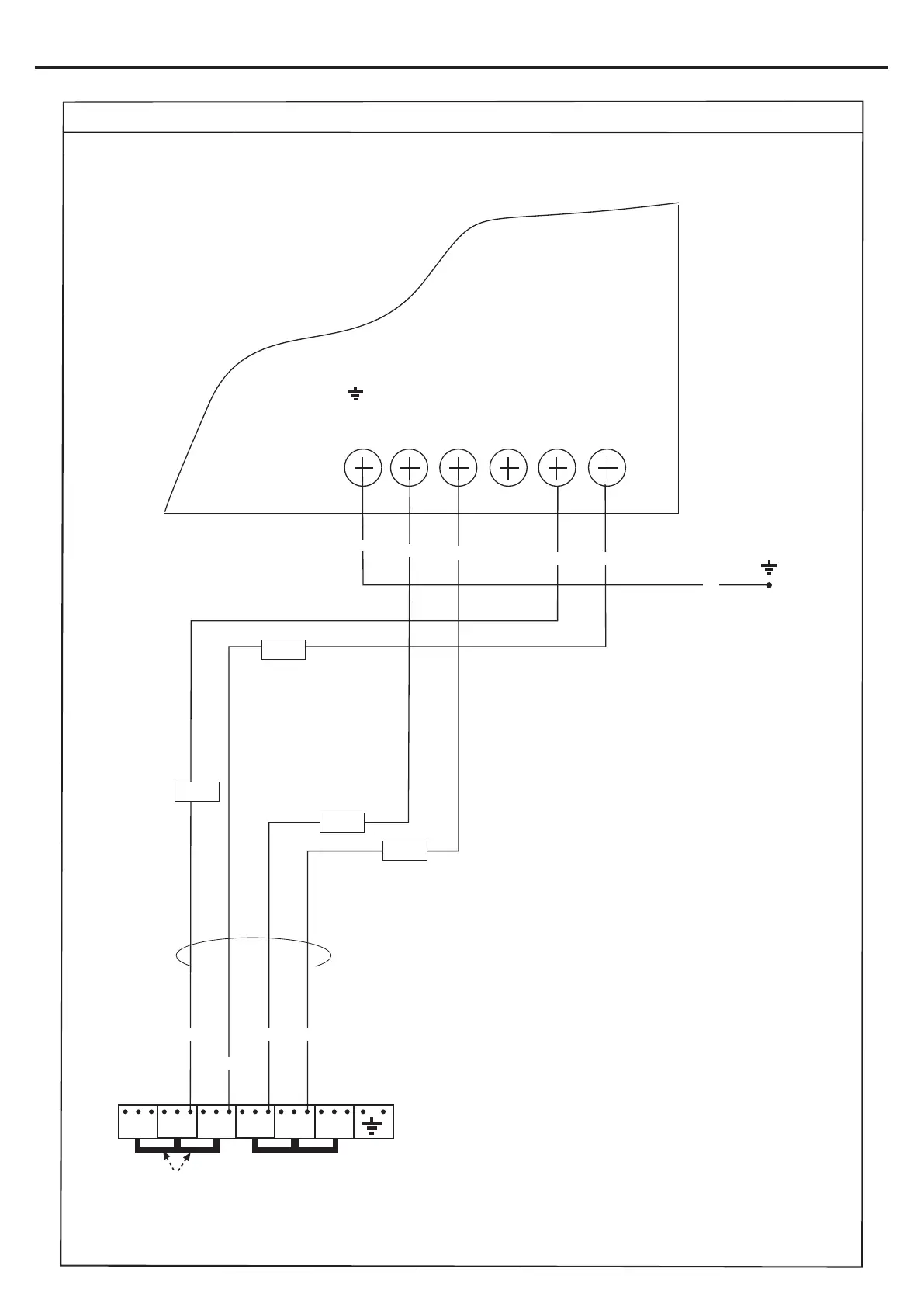

WIRING DIAGRAM- INDUCTION UNIT PAGE 3/3
Remove These Two Links for Multi-Phase Installations !
INLET
TERMINAL
BLOCK
L1
L2 L3 4(N)
5(N)
6(N)
083753500
13.09.2018
BELLING RICHMOND/COOKCENTRE 900Ei- AU
