Belling D841 - Connect to the electricity supply

Connect to the electricity supply
Warning: This appliance must be
earthed.
The appliance must be installed by a
competent electrician using a double
pole control unit of 30 ampere
minimum capacity with 3mm minimum
contact separation at all poles.
We recommend that the appliance is
connected by a qualified electrician
who is a member of the N.I.C.E.I.C.
and who will comply with the I.E.E.
and local regulations.
1. Access to the mains terminal is
gained by opening the terminal
block cover at the rear of the
appliance (use a small flat-bladed
screwdriver).
2. Connection should be made with
a 6mm
2
twin and earth cable..
3. First strip the wires, then push the
cable through the cable clamp in
the terminal block cover.

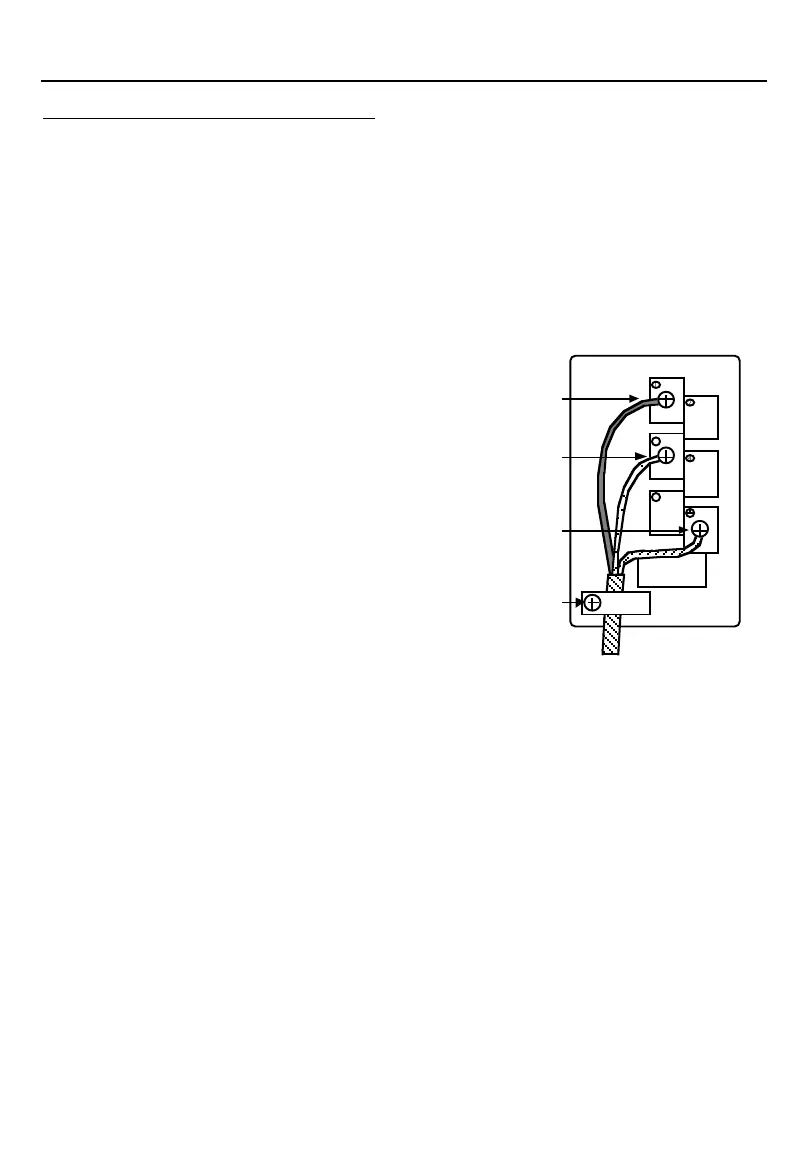

4. Connect the cable to the terminal
block and tighten the cable clamp
screw (see diagram).
5. Close the terminal box, ensuring
that the cover is engaged on the
locking tabs.
6. Sufficient cable should be used to
allow the cooker to be pulled out,
but the cable must hang clear of
the floor so it does not become
twisted or trapped when the
cooker is pushed back.
Ensure that the cable is kept
clear of the oven vent.
25
1
2
3
4
5
Cable
clamp
Earth
(Green / Yellow
or sleeving)
Live
(Red or Brown)
Neutral
(Black or Blue)
