Connect to the electricity supply
Warning: This appliance must be
earthed.
All products referred to in this book
should be installed by a competent
electrician who will comply with
national and local wiring regulations
using a double pole control unIt of 30
ampere minimum capacity with 3mm
minimum contact separation in all
poles.
Connection from the control unit to the
appliance should be made using stan-
dard 6.0mm
2
PVC twin and earth
cable as a minimum.
1. To open the terminal block located
at the rear of the appliance, use a
small bladed screwdriver and fol-
low the diagram on the terminal
block cover for access.
2. Connect the cable to the terminal

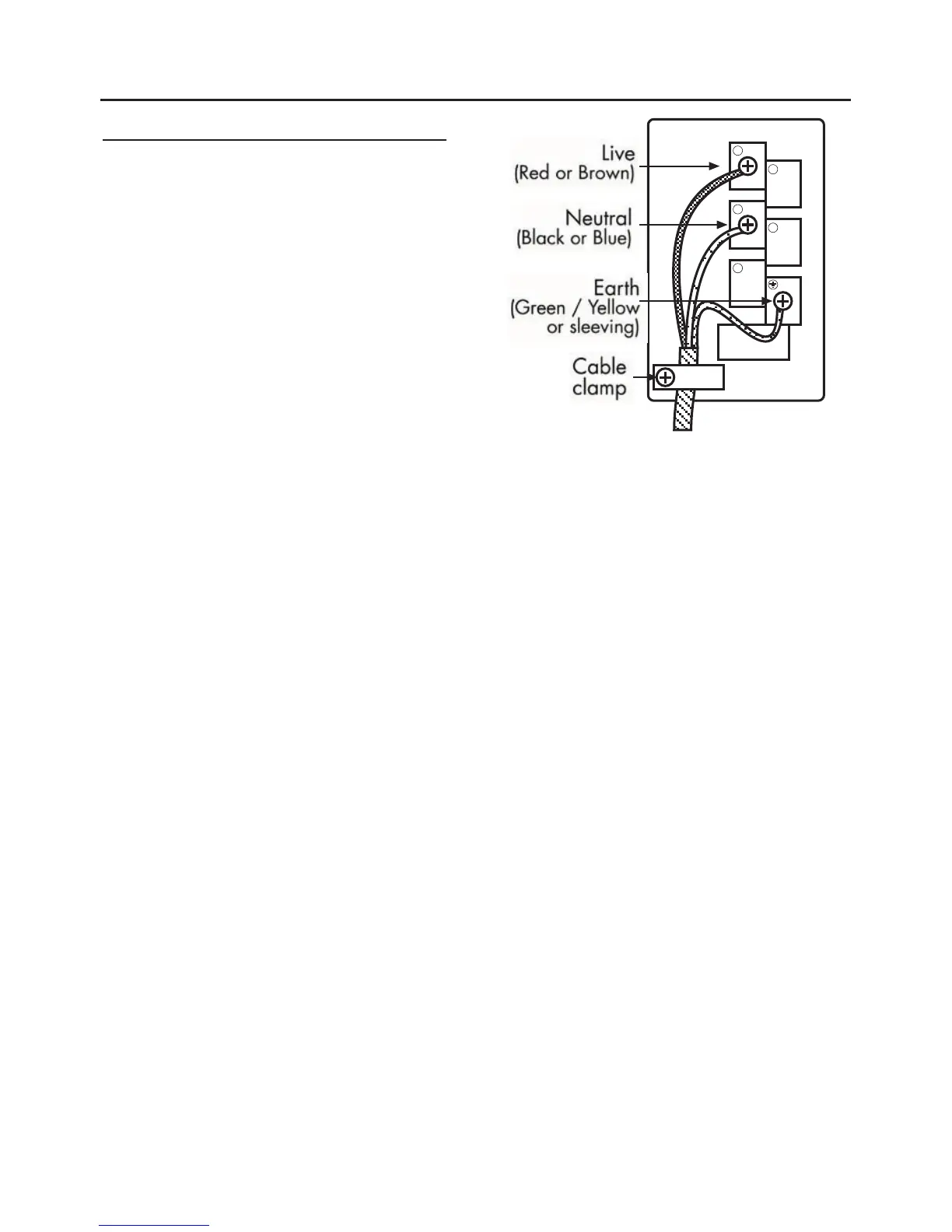

block as per the diagram on this
page.
3 Close the terminal box ensuring that
the cover is engaged on the lock-
ing tabs.
