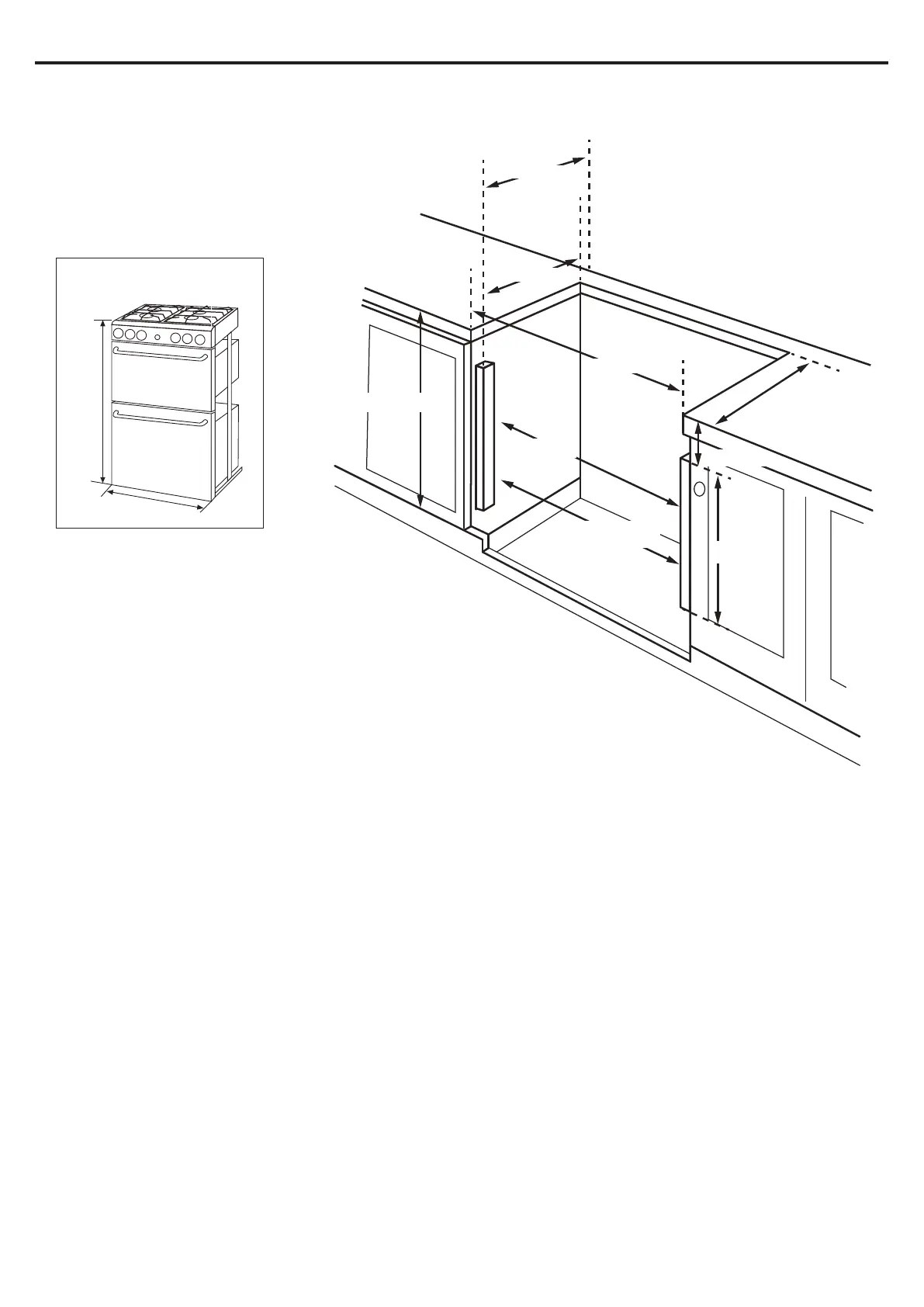

Installation dimensions
602 - 604mm
DITC - 745 mm
140 mm
602DITC
745 mm
600mm
552 mm
560 mm
Batten Dimensions
(50 mm x 25 mm)
min 560 mm
min 570 mm
530 mm
All sizes are nominal, and some variation is to be expected. The ‘depth’ of the cooker, as given, is to the
front of the fascia panel and excluding knobs and handles.
• For installations with a blind at the rear of the appliance, a minimum distance of 55mm should be
maintained.
• Leave a gap below the appliance, with a removable plinth to allow access to the gas connection.
• The appliance is designed to t between two units, slide the appliance in between the units, after
ensuring the dimensions and batterns are tted as the diagram. Secure the appliance through the
holes in the side of the front frame.
Ventilation - A minimum ventilation gap of 20mm x 550mm should be made in the plinth immediately
beneath the appliance for ventilation. Care should be taken that the underneath of the oven is not left
exposed to accidental touching when this ventilation gap is incorporated.
INSTALLATION
