2.4 Rear panel I/O connectors

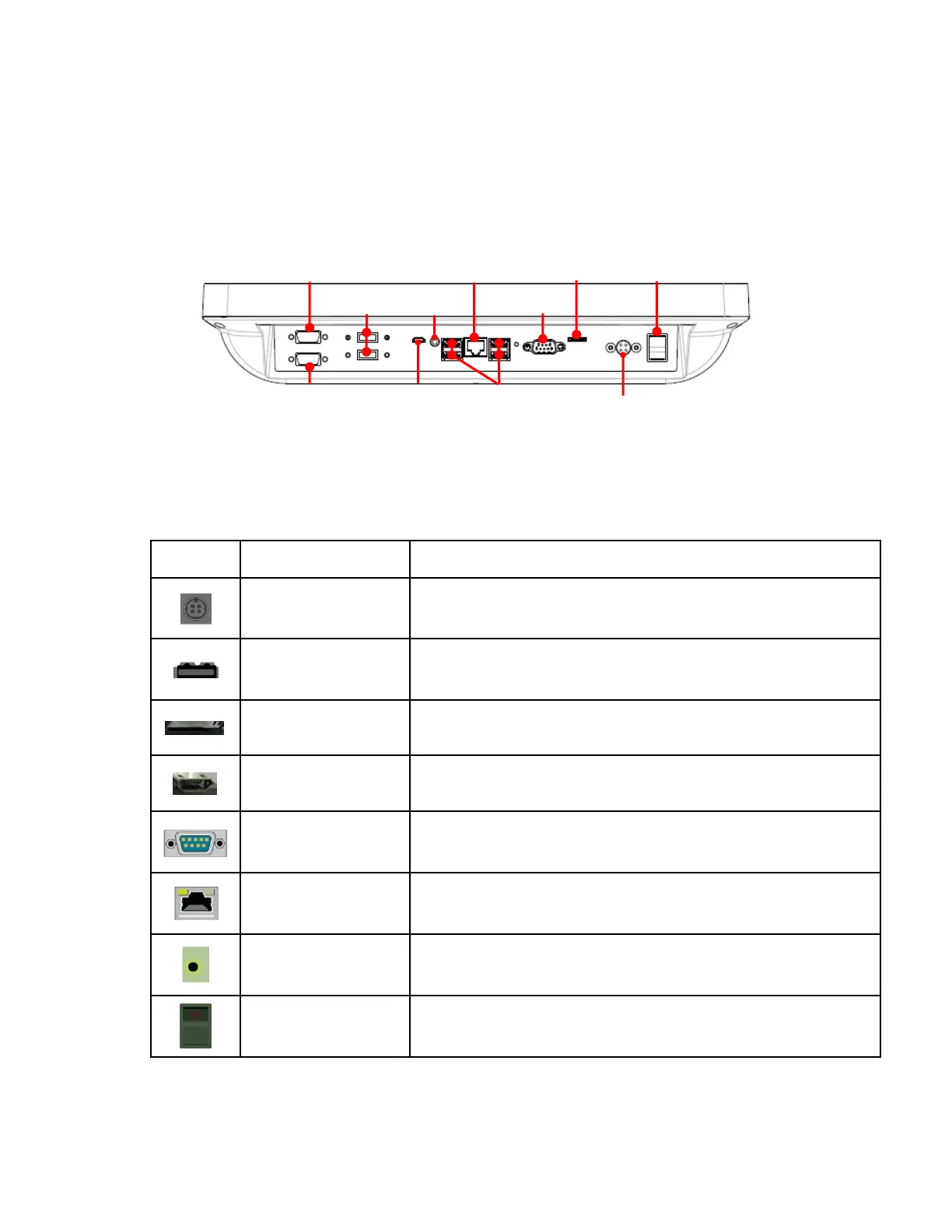

At the rear panel of the SB1015AW is a row of external I/O device connectors
detailed as follows:
Port
Name
Function
DC-in 12V Power
Connector
Connect compatible power adapter to provide power
supply for the system.
USB 2.0 Port
Connect USB keyboard, mouse or other devices
compatible with USB specification.
Micro SD Slot
Insert Micro SD card for storage add-on
OTG Port
Connect to host computer for OS upgrade
Serial Port
Connect external devices that supports RS232 serial
communications interface.
RJ45 LAN Port
Standard RJ-45 LAN jack for network connection.
Line-Out
Connector
Connect external speaker, earphones, etc for system
audio output.
Power Switch
For switching on / shutdown system.
Micro SD Slot
Line-OUT
DC12V
Power-in
Connector
USB 2.0 Ports
RJ-45 LAN Port
USB 2.0 Port
OTG Port
COM1 Port
COM3 Port
Power
Switch
COM2 Port
