Bematech SB1015AW User Manual

6
3 Hardware Information and Installation

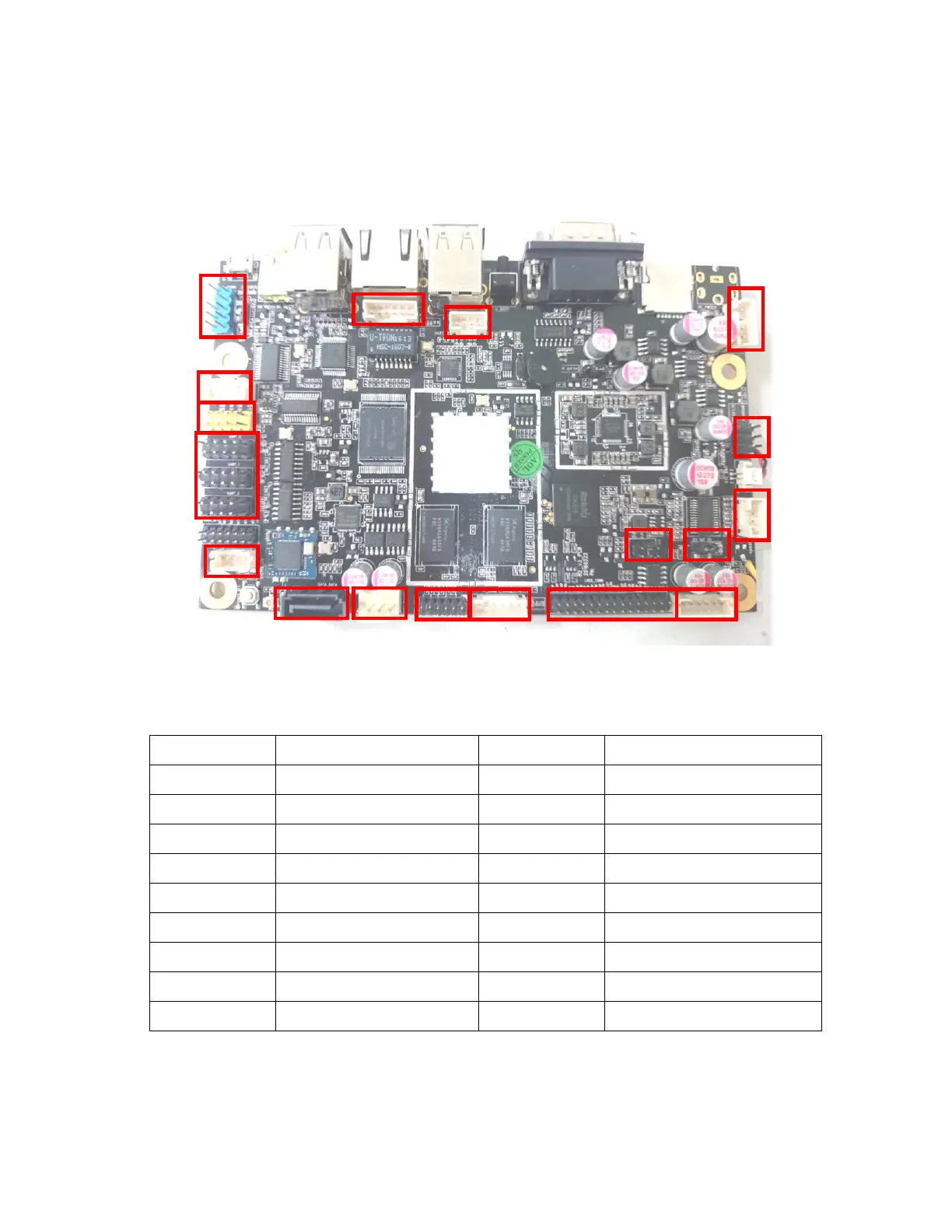

3.1 Motherboard Headers and Jumpers Layout
3.2 Motherboard Headers and Jumpers List
Header/Jumper
Name
Header/Jumper
Name
1
ATX Power Header
10
SATA Power Header
2
USER_VCC Header
11
SATA Header
3
Internal Speaker Header
12
LED Header
4
Backlight Inverter Header
13
COM1 / COM2 Header
5
LVDS Signal Header
14
USB 2.0 Header
6
Inverter Voltage Jumper
15
Touch USB Header
7
LVDS Voltage Jumper
16
Internal Audio Header
8
I2C Header
17
LAN Header
9
GPIO Header
18
Debug Port Header
1
2
3
4
5
8
9
10
11
12
13
14
15
16
17
18
6
7
