Benchmark Games BLASTER - Quad Stepper Board; Sound Board; Router Boards; Small 4-Digit Display

21

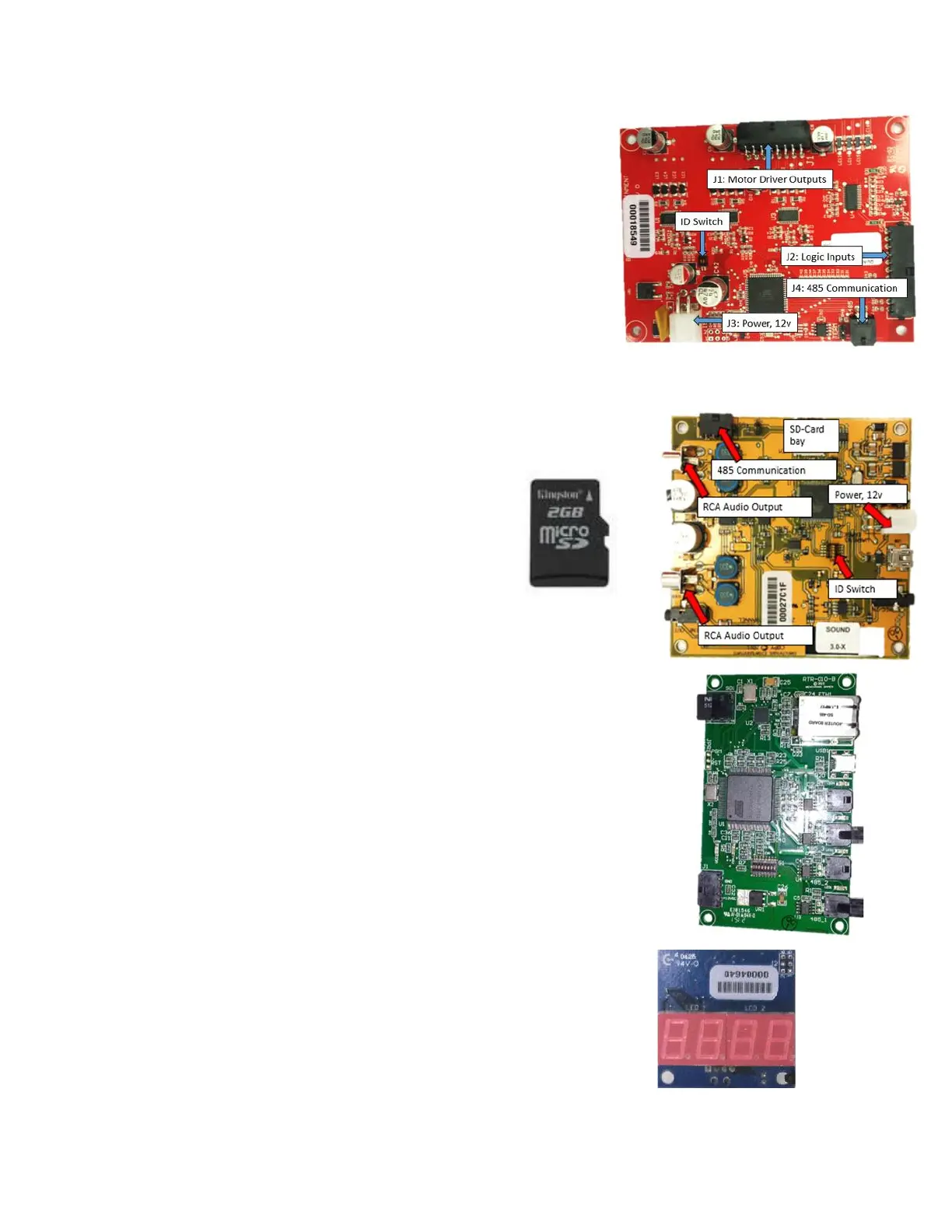

Quad Stepper Board
Part# PCB00068
Qty: 1
Location: Control Panel
ID-Switch setting: 00 (off, off)
This Stepper-motor controller board handles the movements of the
Playfield wheel, the inner marquee, and the outer/upper marquee.
Motor control output goes in groups of 3 wires off the J1 connector:
Playfield Wheel: Motor 1
Inside Marquee: Motor 2
Upper Marquee: Motor 3
Sound Board
Part# 116PCB002
Location: Top of Cabinet
ID-Switch setting: 0000 (off-off-off-off)
SD Sound Card Part # 116PCB004
Handles background and event sounds.
Sound files are stored on the plug-in SD-card memory board.
Router Boards
Part# PCB00026
Location: Control Panel
ID-Switch setting: none
Allows up to three games to communicate with each other to build and compete
for a common bonus.
SD Card Part# PCB00055
Small 4-Digit Display (player credits)
Part# PCB00067 [485 capable, connector in front]
Qty: 2 (one per game side)
Location: Front-right of Playfield
ID-Switch settings:
Game1: 100000 (on, off, off, off, off, off)
