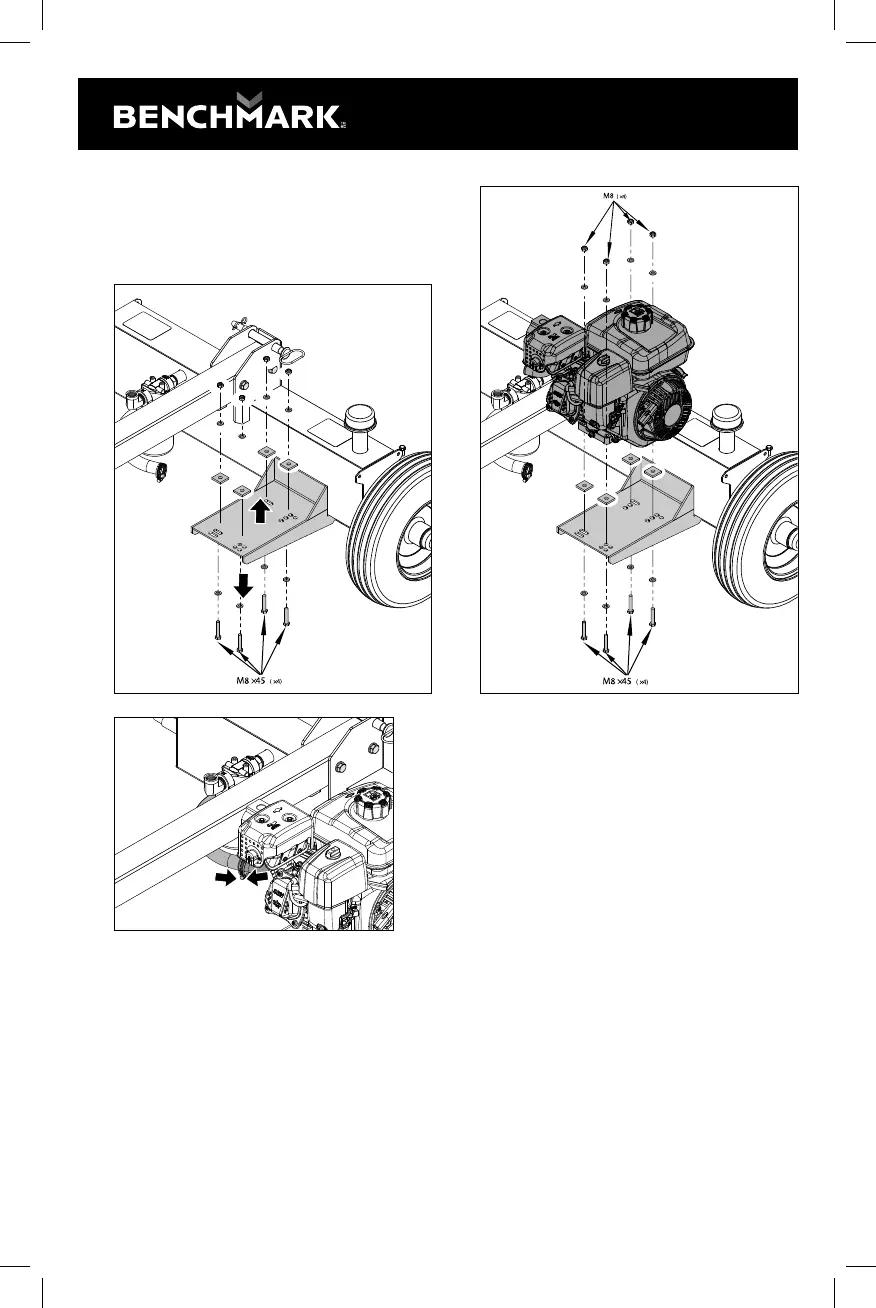

ENGINE
1. Remove the bolts groups from the
bracket, and set aside.
2. Place Engine on tank. Secure Engine
on Tank in 4 places with the hardware
removed in the first step.
3. Remove the plastic dust cap located at
the end of the suction hose and loosen
hose clamp. Slide suction hose onto the
suction tube located on the bottom of the
hydraulic pump. Secure the connection
with hose clamp with a flat screwdriver.
