5240-552
25 TON GAS-POWERED LOG SPLITTER
16

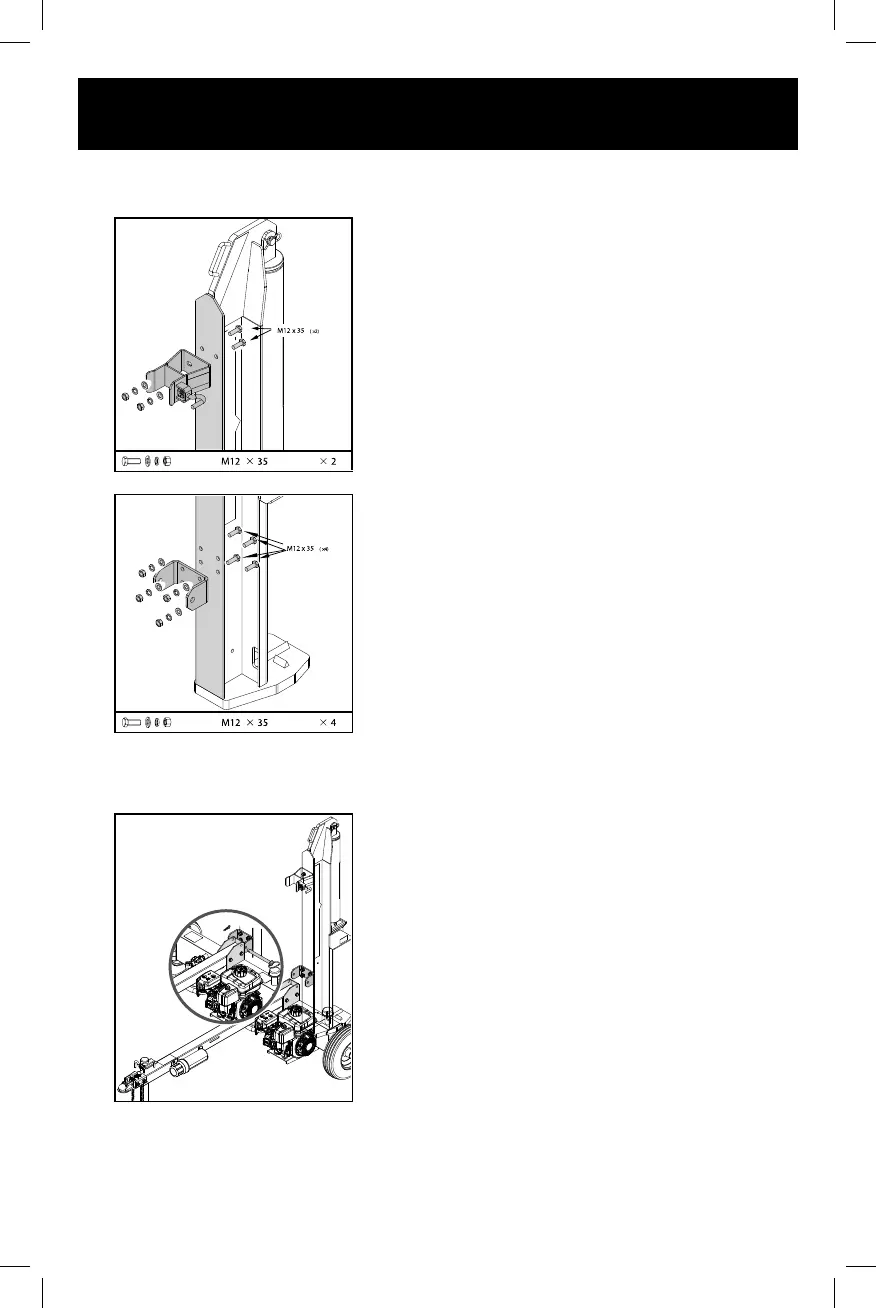

BEAM BRACKET
1. Attach the Beam Lock Bracket to the Beam
& Cylinder with Hex Bolt, Flat Washer, Lock
Washer and Hex Nut in two places. Tighten
securely using 19mm socket wrenches.
2. Attach the Pivot Bracket to the Beam &
Cylinder using the four bottom holes with
Hex Bolt, Flat Washer, Lock Washer and Hex
Nut in four places. Tighten securely using
19mm socket wrenches.
BEAM TO RESERVOIR
1. Rotate the Stand attached to the side of the
Tongue downwards into position by releasing
the pin and then securing the release pin.
2. Remove the Retaining Clip and Hitch Pin
from the assembled unit (as shown below).
Slowly back the assembled unit up to the
Beam & Cylinder. Align the Tongue Bracket
of the assembled unit to the Pivot Bracket
of the Beam. Once the brackets are aligned,
install the Hitch Pin through the brackets
then install the Retaining Clip into the
Hitch Pin.
