Benchmark Procombi A Series User Manual

5
0,0
0,2
0,4
0,6
0,8
1,0
1,2
1,4
1,6
1,8
2,0
2,2
2,4
2,6
2,8
3,0
3,2
3,4
3,6
3,8
4,0
4,2
4,4
4,6
4,8
5,0
0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500
Fig. 4
Key Location Minimum distance
A Below an opening (window, air-brick, etc.) 300 mm
B Above an opening (window, air-brick, etc.) 300 mm
C To the side of an opening (window, air-brick, etc.) 300 mm
D Below gutter, drain-pipe, etc. 25 mm
E Below eaves 25 mm
F Below balcony, car-port roof, etc. 25 mm
G To the side of a soil/drain-pipe, etc. 25 mm
H From internal/external corner or boundary 300 mm
I Above ground, roof, or balcony level 300 mm
J From a surface or boundary facing the terminal 1200 mm
K From a terminal facing a terminal 1200 mm
L From an opening in the car-port into the building 1200 mm
M Vertically from a terminal on the same wall 1500 mm
N Horizontally from a terminal on the same wall 300 mm
P From a structure to the side of the vertical terminal 500 mm
Q From the top of the vertical terminal to the roof flashing As determined by the fixed collar
of the vertical terminal
Fig. 3

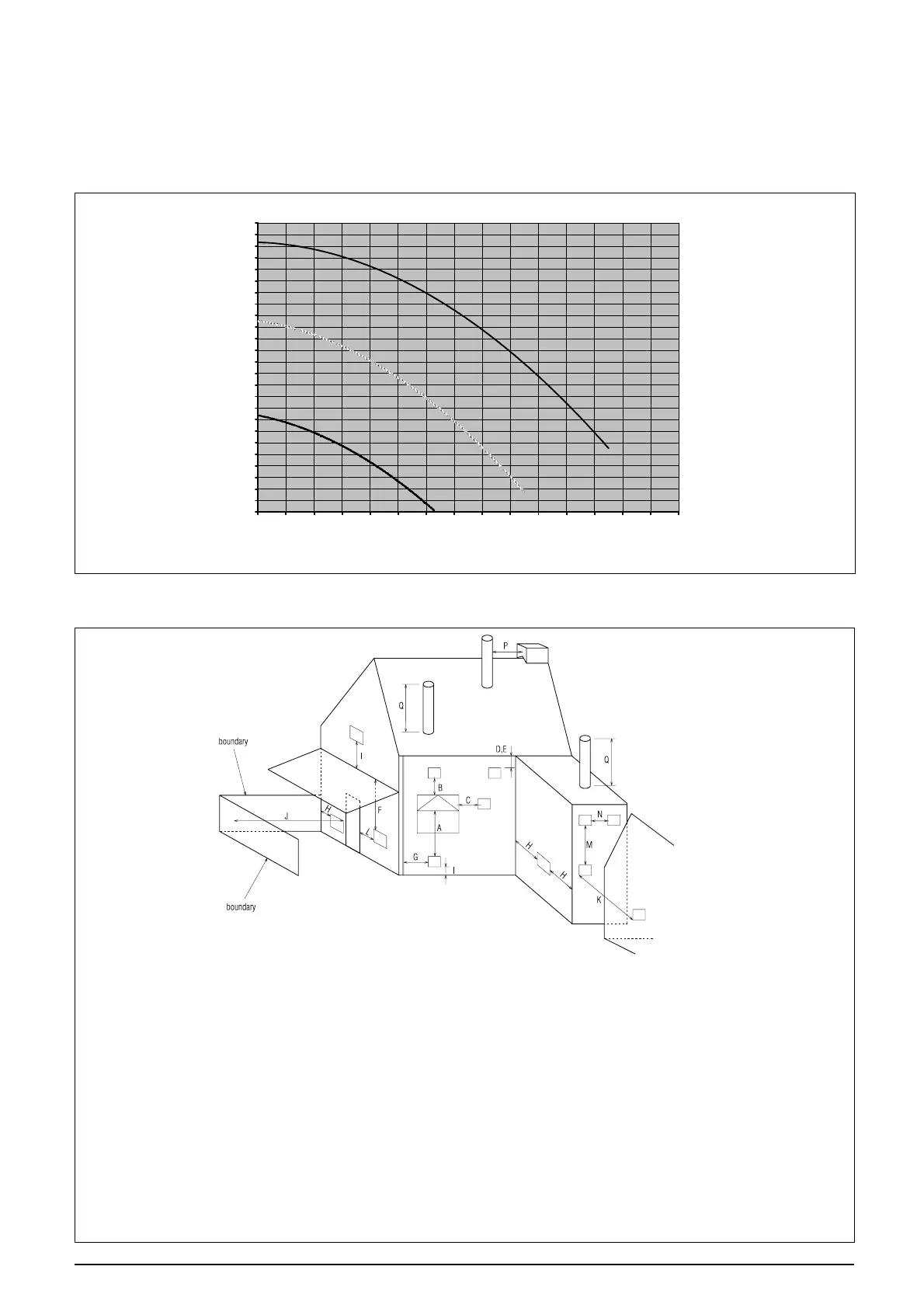

2.12 PUMP DUTY
Fig. 3 shows the flow-rate available – after allowing
for pressure loss through the appliance – for
system requirements. When using this graph,
apply only the pressure loss of the system. The
graph is based on a 20
o
C temperature differential.
Flow rate (l/h)
Residual head (x 100 mbar)
1st speed
2nd speed
3rd speed
