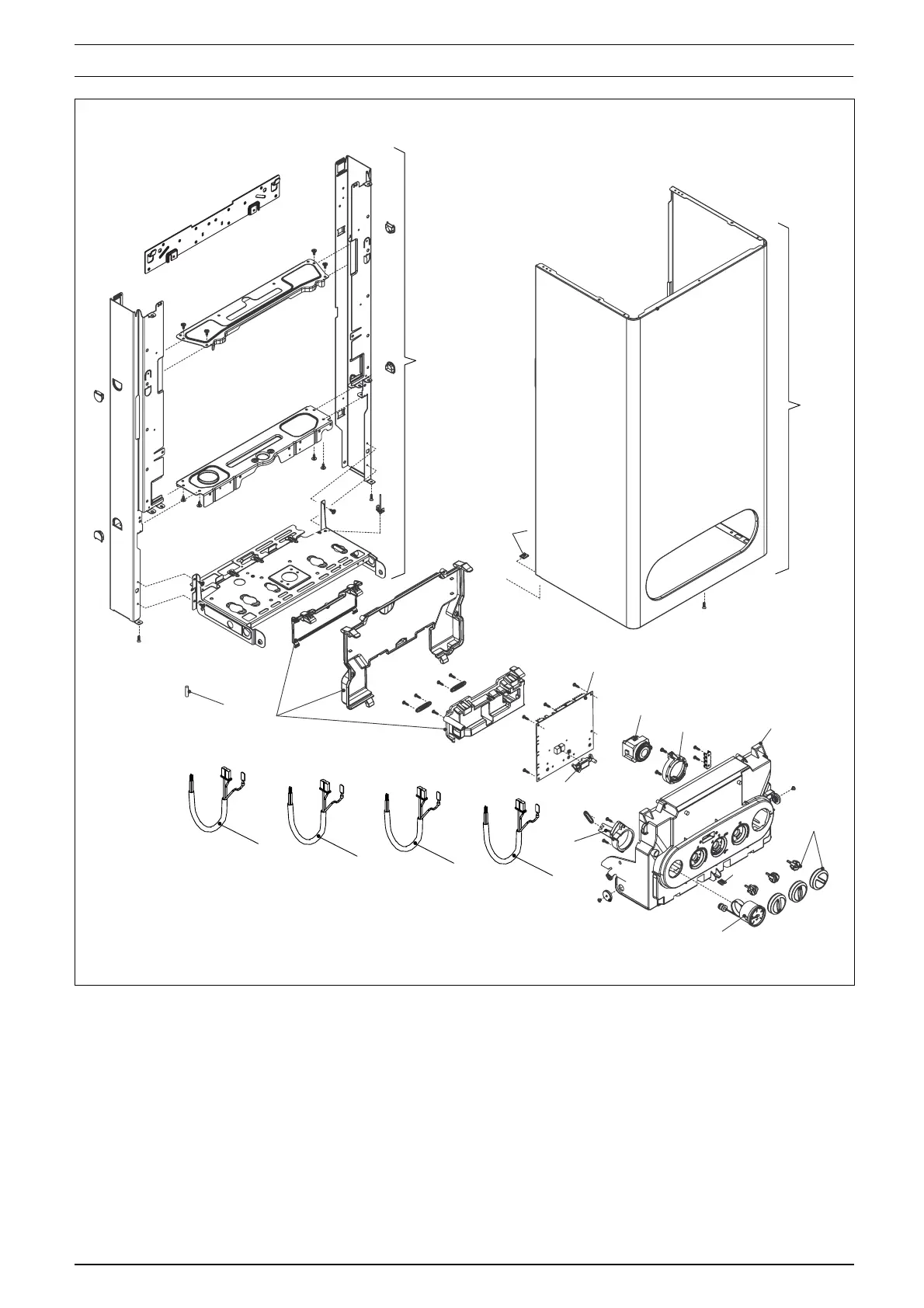

SECTION 9 EXPLODED DIAGRAMS
Table 1
POS. DESCRIPTION A28 A32 A36
1 Frame R01005415 R01005416 R01005416
10 Water gauge carrier R10029105 R10029105 R10029105
12 Pressure gauge R2564 R2564 R2564
18 Cover assembly R10028554 R10028554 R10028554
20 Printed circuit board 20001116 20001116 20001116
21 Led light guide R10028557 R10028557 R10028557
26 Instrumental panel 20005205 20005205 20005205
27 Knob assembly R10028559 R10028559 R10028559
31 Case Assembly R01005481 R01005482 R01005482
49 Timer carrier R10028477 R10028477 R10028477
76 Timer R10028496 R10028496 R10028496
90 Fuse R3478 R3478 R3478
226 Clip R5128 R5128 R5128
300 Wiring harness R10028593 R10028593 R10028593
301 Power wiring harness R10028596 R10028596 R10028596
302 Low tension cable R10029107 R10029107 R10029107
303 Clock wires R10023940 R10023940 R10023940
27
26
49
226
20
21
18
226
12
76
90
10
300
301
31
1
302
303
