Bender rcm420 Operating Manual

Operation and setting
18
TGH1410en/03.2012
5.2 Function of the operating elements

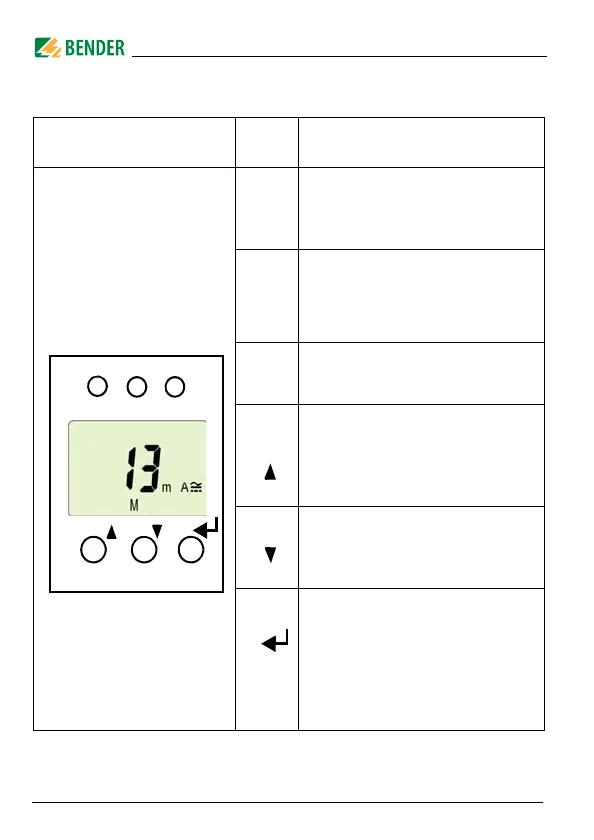

Device front
Ele-
ment
Function
ON,
green
lights continuously: Power On LED
flashes:
System fault or connection moni-
toring fault
AL1,
AL2
LED Alarm 1 lights (yellow):
Response value 1 reached
(I
Δn1
)
LED Alarm 2 lights (yellow):
Response value 2 reached
(I
Δn2
)
13 mA
M
13 mA flow through
the measuring current transformer,
fault memory active
T, Test button (> 1.5 s):
To indicate the available display ele-
ments, to start a self test;
Up key (< 1.5 s):
Menu items/values
R, Reset button (> 1.5 s):
Deleting the fault memory;
Down key (< 1.5 s):
Menu items/values
MENU, MENU key (> 1.5 s):
Starting the menu mode;
Enter key (< 1.5 s):
Confirm menu item, submenu item
and value.
Enter key (> 1.5 s):
Back to the next higher menu level.
ON AL1 AL2
T MENUR
