23

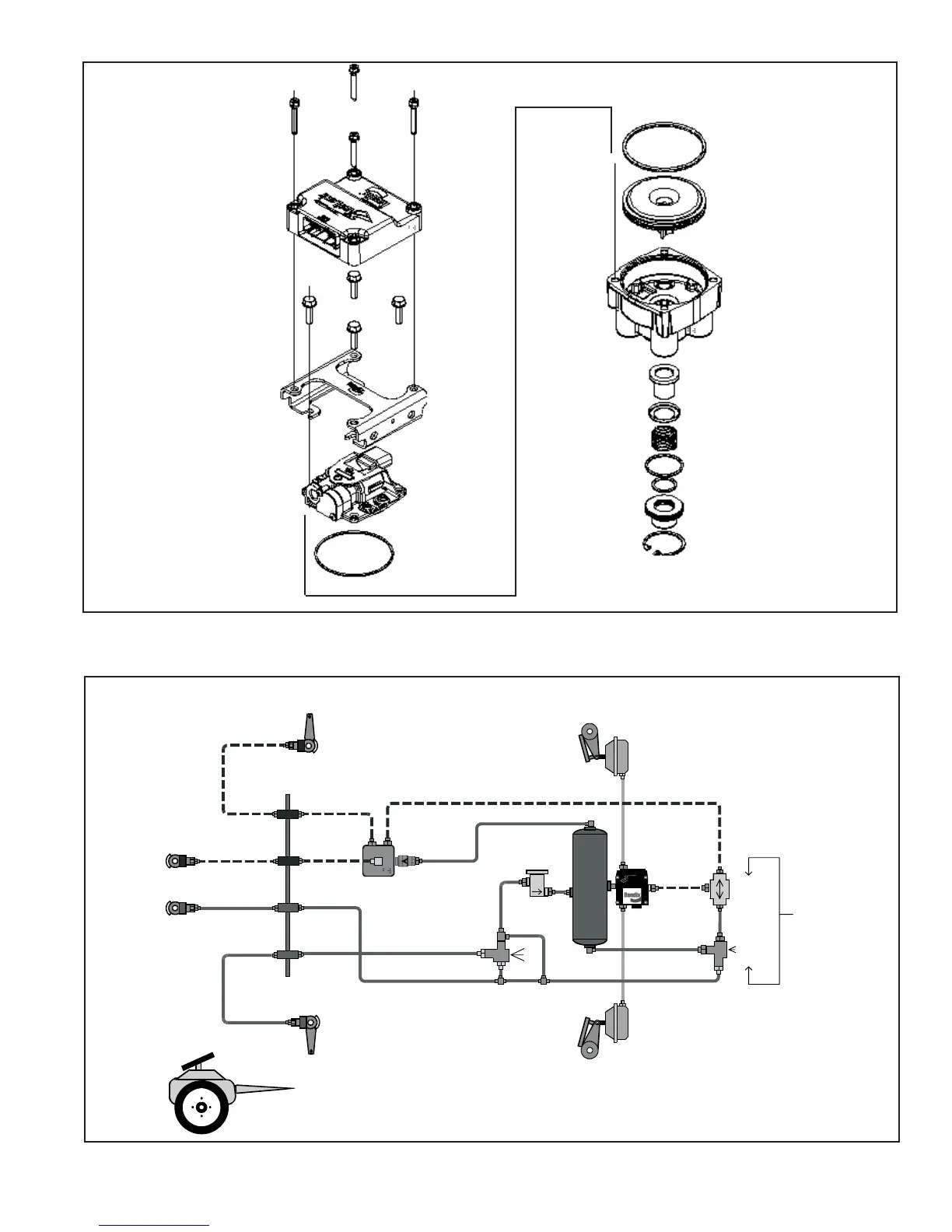

FIGURE 18 - MC-30
™
CONTROLLER DISASSEMBLY
FIGURE 19 - EMERGENCY FUNCTION VALVE SCHEMATIC
This is a piping schematic
only, not a construction
drawing.
Components and
configuration are designed
to enable compliance with
FMVSS 121
PR-3
Coupling - Control
TR-3
DC-4
SV-4
Coupling - Supply
AntiLock
+
Control
Supply
Emergenc
y
Function
Dolly
DOLLY / TOWING-TRAILER WITH EMERGENCY FUNCTION
R-12P
SC-3
MC-30
