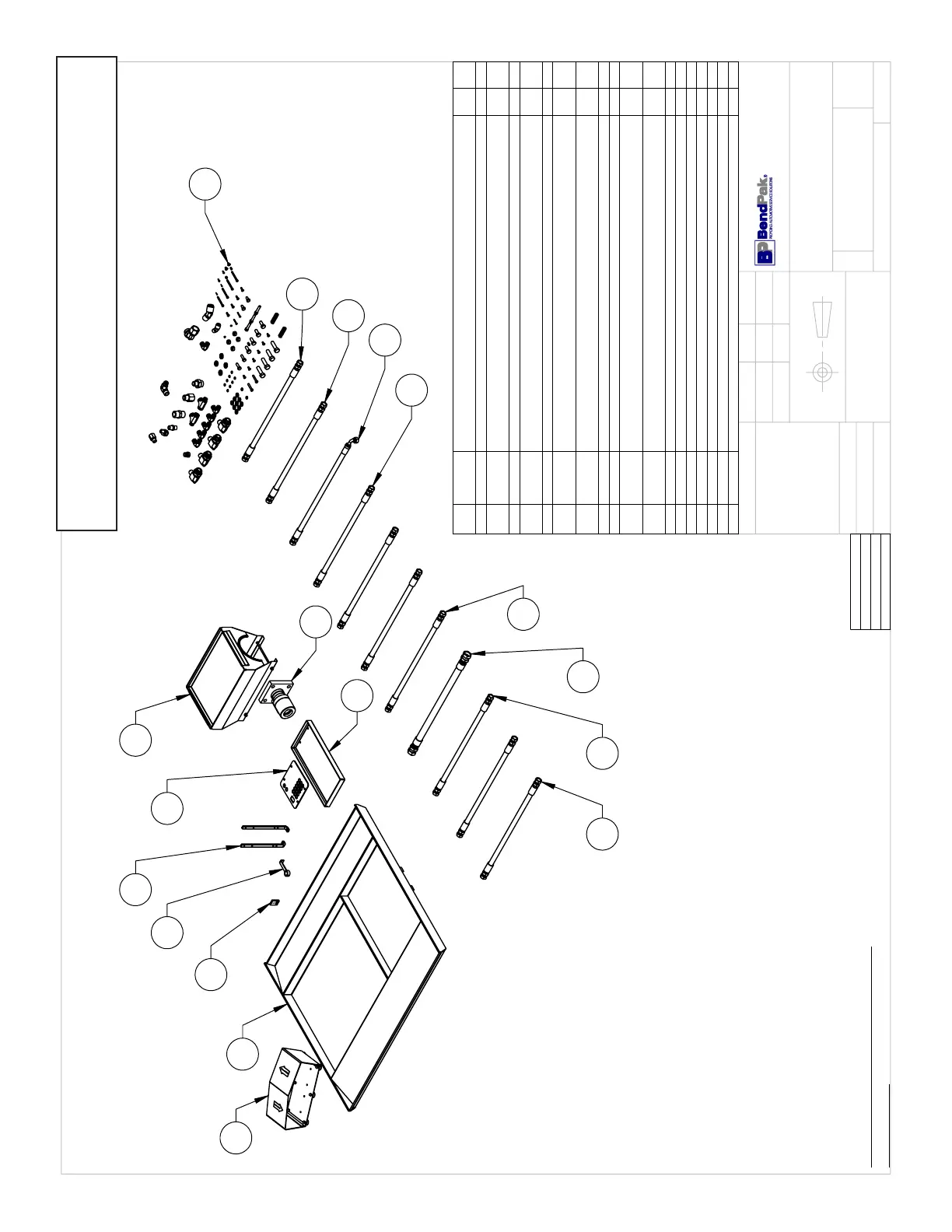

DIMENSIONS ARE IN MM
☺
2
13
18
17
16
14
12
3
4 5
6
7
9
10
11
1
8
15
REVISION
REV.
DESCRIPTION
DATE
EDITED BY
ECO #
A
PRODUCTION RELEASE
02/02/2009
AC
00156
B
UPDATED BOM REVISIONS
07/13/2009
AC
00286
NEXT ASSEMBLY
5260400
5260410
5260411
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY
REV
1 5174800
1302 BA PARTS BAG
1
B
2 5600470
1302/1502/BLUE BULLET SERIES BOTTOM TOOL TRAY
WELDMENT
1
A
3 5215102
1302/1502/BLUE BULLET SERIES BUTTRESS ASSEMBLY
1
A
4 5570315
1302/1502/BLUE BULLET SERIES HOSE ASSEMBLY Ø12.7 x
740mm DS
2
A
5 5570325
1302/1502 SERIES HOSE ASSEMBLY Ø12.7 x 760mm DS
1
A
6 5570350
1302/1502/BLUE BULLET SERIES HOSE ASSEMBLY Ø19 x
430mm DS
1
A
7 5570355
1302/1502/BLUE BULLET SERIES HOSE ASSEMBLY Ø12.7 x
540mm DS
3
A
8 5570365
1302 SERIES HOSE ASSEMBLY Ø12.7 x 1070mm DS
1
A
9 5570385
1302 SERIES HOSE ASSEMBLY Ø12.7 x 840mm
1
A
10 5570397
1302/1502/BLUE BULLET SERIES HOSE ASSEMBLY Ø12.7 x
430mm DS
1
A
11 5570398
1302/1502/BLUE BULLET SERIES HOSE ASSEMBLY Ø12.7 x
1020mm DS
1
A
12 5215133
1302/1502 SERIES TOP TOOL TRAY ASSEMBLY
1
A
13 5215156
1302/1502 SERIES FOOT PEDAL ASSEMBLY
1
A
14 5701479
1302/1502/BLUE BULLET SERIES SMALL TOOL TRAY
1
A
15 5746505
1302/1502 SERIES RAIL MOUNTING BAR
2
A
16 5715260
1302 BA/1502 BA FACE PLATE COVER
1
A
17 5735783
1302 BA/1502 BA DIGITAL MICRO SWITCH MTG BRACKET
1
A
18 5600464
1302 BA / 1502 BA STOP ARM WELDMENT
1
A
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE
SPECIFIED
.
AC
5250217
PARTS BOX 1302 BA
---
---
02/02/2009
DO NOT SCALE DRAWING
1:18
SCALE:
THIRD ANGLE PROJECTION
TM
07/27/2009
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
