BendPak BB 1302-BAS - Page 59

Bender Operation Manual 59
DIMENSIONS ARE IN MM
REVISION
REV.
DATE
ECO #
A
PRODUCTION RELEASE
AC
00156
B
REPLACED 700615 WITH 5502140 REPLACED 700572 WITH 5502120 REPLACED 700533 WITH 5502310
05/06/2010
AC
00355
NEXT ASSEMBLY
5260402
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY.
REV
1 5215140 1
A
2 5510305 2
A
3 5600468
WELDMENT
1
A
4 5731215
1302/1502/BLUE BULLET SERIES CHAIN RETURN BLOCK
1
A
5 5736305
1302/1502/BLUE BULLET SERIES GUIDE BAR
1
A
6 5746220
1302/1502/BLUE BULLET CHAIN CONNECTOR
2
A
7 5746655 1
A
8 5502310 1
A
9 5502120
CYLINDER ASSEMBLY Ø3.0 X 7.0
1
A
10 5502140
CYLINDER ASSEMBLY Ø5.0 x 14
1
A
11 5505020
HAIR PIN #238, 0.125" x 2 7/8"L ZPL
2
-
12 5505710
HAIR PIN #208 Ø4.5mm x 95mm ZPL
2
-
13 5530061
SHCS M12x1.75 x 25mmL
4
-
14 5530062
SHCS M8 x 1.25 x 50mmL
4
-
15 5530105
HHB 7/8"-14 x 2 1/2"
1
-
16 5530230
HHB 1/2"-13 x 1-3/4"
4
-
17 5535001
NUT M8 x 1.25 NL
4
-
18 5535039
NUT M20 x 1.5 NL
2
-
19 5545120
WASHER Ø7/8" x Ø1.459" SL
1
-
20 5545125
WASHER Ø1/2" x Ø.869" SL
4
-
21 5550481
FTG ELB 1/4 TUBE INS 1/8 NPT
3
-
22 5570796
1302/1502/BLUE BULLET SERIES PE HOSE Ø1/4" x 8"
1
A
23 5570797
1302/1502/BLUE BULLET SERIES PE HOSE Ø1/4" x 4"
1
A
24 5550501
FTG ELB 1/4 INS x 1/4 NPT
1
-
25 5550101
FTG RED -08 NPT x -04 F NPT
1
-
26 5550134
FTG ELB -08 NPT x -08 JIC
4
-
27 5550023 1
-
28 5550152
FTG NPL -08 NPT x -08 JIC
1
-
29 5550022
FTG NPL -08 NPT x -08 NPT
1
-
30 5550124
FTG ELB -12 NPT x -12 JIC
1
-
31 5905198
TOOLING, CAUTION LABEL
1
-
32 5550021
FTG NPL -08 JIC x -06 NPT
2
-
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC

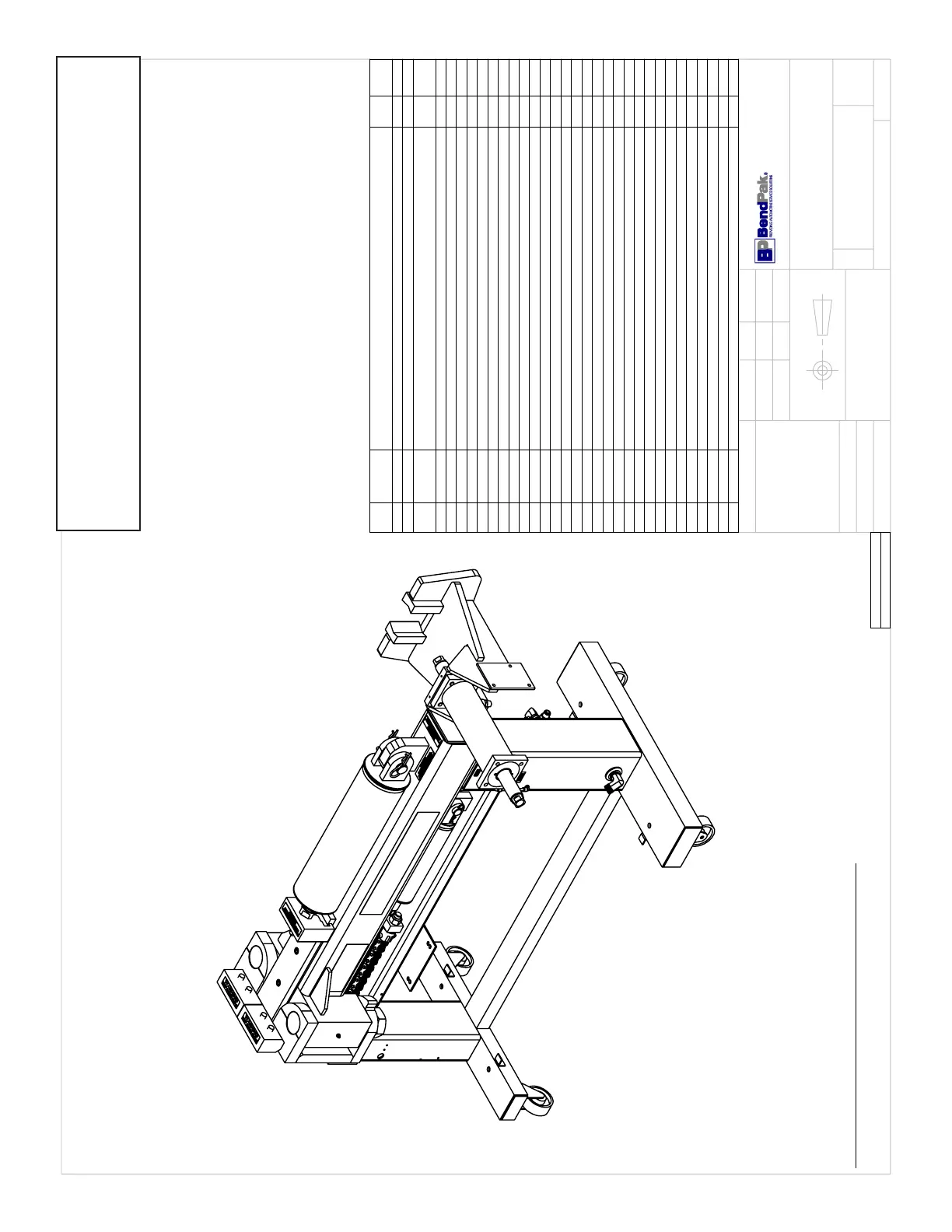

5245219
BLUE BULLET BENDER
SUPERSTRUCTURE
---
---
01/30/2009
DO NOT SCALE DRAWING
1:12
SCALE:
THIRD ANGLE PROJECTION
TM
02/27/2009
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ASSEMBLE ITEMS AS SHOWN
2.
