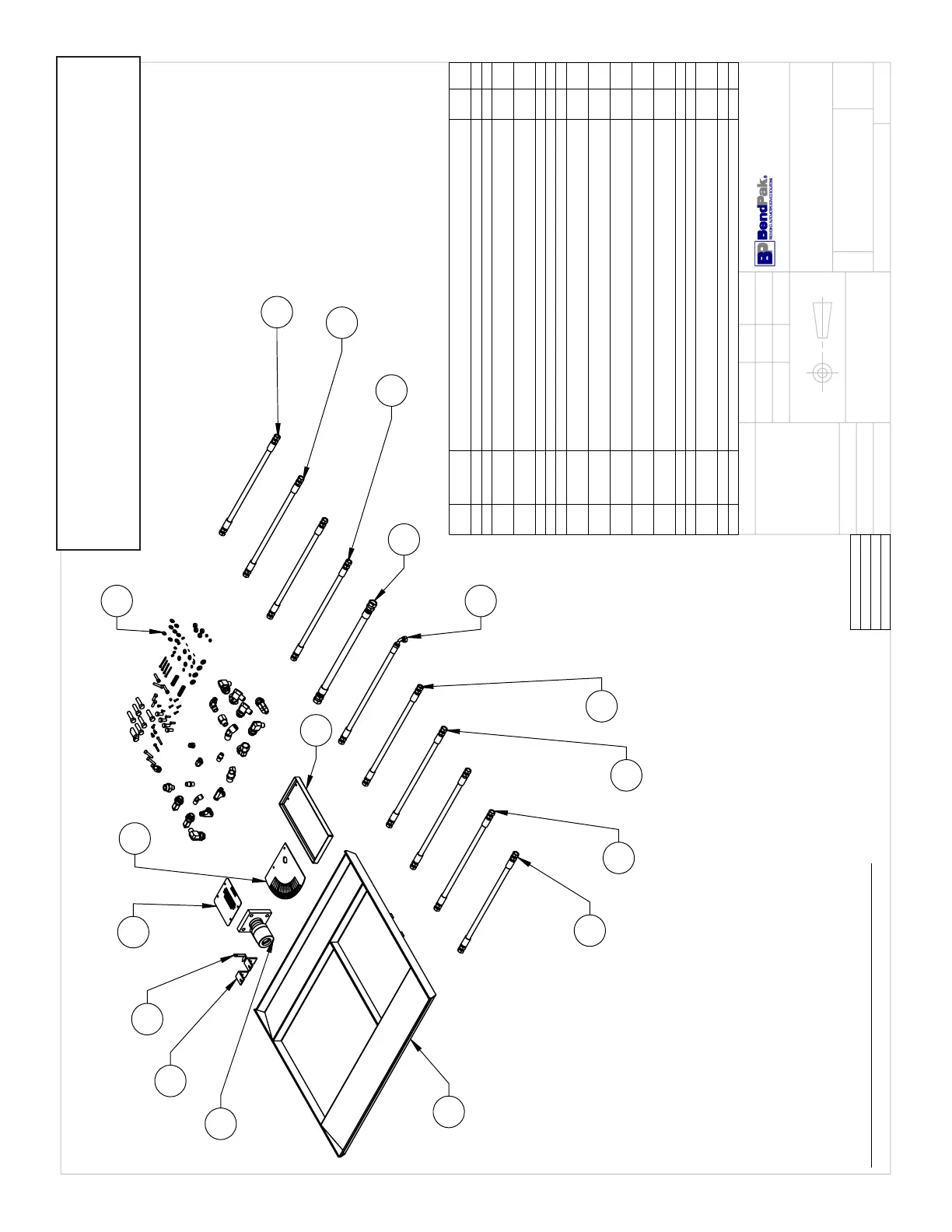

62 Bender Operation Manual
DIMENSIONS ARE IN MM
☺
12
17
14
13
2
1
4
6
8
9
10
11
3
5
7
15
16
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
B
UPDATED BOM REVISIONS
07/13/2009
AC
00286
C
UPDATED BOM REVISION
05/12/2010
TM
00355
D
UPDATED BOM REVISIONS
06/11/2010
TM
00370
NEXT ASSEMBLY
5260402 5260412 5260415
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY.
REV
1 5174804
BLUE BULLET PARTS BAG
1
C
2 5215102
1302/1502/BLUE BULLET SERIES BUTTRESS ASSEMBLY
1
A
3 5570310
1502/BLUE BULLET SERIES HOSE ASSEMBLY Ø12.7 x 660mm
DS
1
A
4 5570315
1302/1502/BLUE BULLET SERIES HOSE ASSEMBLY Ø12.7 x
740mm DS
2
A
5 5570335
BLUE BULLET HOSE ASSEMBLY Ø12.7 x 1575mm DS
1
A
6 5570340
BLUE BULLET HOSE ASSEMBLY Ø12.7 x 1370mm DS
1
A
7 5570345
BLUE BULLET HOSE ASSEMBLY Ø12.7 x 2000mm
1
A
8 5570350
1302/1502/BLUE BULLET SERIES HOSE ASSEMBLY Ø19 x
430mm DS
1
A
9 5570355
1302/1502/BLUE BULLET SERIES HOSE ASSEMBLY Ø12.7 x
540mm DS
2
A
10 5570397
1302/1502/BLUE BULLET SERIES HOSE ASSEMBLY Ø12.7 x
430mm DS
1
A
11 5570398
1302/1502/BLUE BULLET SERIES HOSE ASSEMBLY Ø12.7 x
1020mm DS
1
A
12 5600470
1302/1502/BLUE BULLET SERIES BOTTOM TOOL TRAY
WELDMENT
1
A
13 5701479
1302/1502/BLUE BULLET SERIES SMALL TOOL TRAY
1
A
14 5711215
1302 BAS/1502 BAS/BLUE BULLET DEPTH OF BEND PLATE
1
B
15 5731225
1302 BAS/1502 BAS/BLUE BULLET DEPTH OF BEND
INDICATOR
1
A
16 5736679
BLUE BULLET UPRIGHT FACE PLATE
1
B
17 5721365
1302 BAS/1502 BAS/BLUE BULLET MOUNTING BRACKET
2
A
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5250219
PARTS BOX BLUE BULLET
---
---
02/02/2009
DO NOT SCALE DRAWING
1:18
SCALE:
THIRD ANGLE PROJECTION
AC
07/30/2010
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
