DIMENSIONS ARE IN MM
☺
29
8
7
12
9
4
31
28
22
11
16
25
23
26
20
18
19
27
30
6
5
3
2
17
10
13
14
15
24
21
32
33
1
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE
01/30/2009
AC
00156
B
REPLACED 5550042 WITH 5550142
REPLACED 5530245 WITH 5530240
REPLACED 5530071 WITH 5530158
ADDED (1) 5530161
07/13/2009
AC
00286
C
ADDED (1) 5550117
05/12/2010
TM
00355
NEXT ASSEMBLY
5250219
ITEM NO.
PART NUMBER
DESCRIPTION
QTY
REV
1 5530027
HHB M6 x 1.0 x 35
2
-
2 5530031
HHB M6 x 1 x 12
3
-
3 5530049
THPS M5 x 0.8 x 12
2
-
4 5530063
BHSK M5 x 0.8 x 16
4
-
5 5530065
BHSK M6 x 1.0 x 20
2
-
6 5530158
SHCS M8 x 1.25 x 35
6
-
7 5530230
HHB 1/2"-13 x 1-3/4"
8
-
8 5530240
HHB 5/16-18 x 1"
2
-
9 5530738
HHB M10 x 1.5 x 25
4
-
10 5535112
NUT M6 x 1.0
2
-
11 5535998
NUT M10 x 1.5
4
-
12 5540215
PUSHER BLOCK SPRING / BENDER
2
A
13 5545005
M6 FLAT WASHER
6
-
14 5545008
WASHER M5 x Ø10 FLAT
4
-
15 5545026
WASHER M6 x Ø12 SL
3
-
16 5545125
WASHER Ø1/2" x Ø.869" SL
4
-
17 5545200
WASHER M10 x Ø18 SL
12
-
18 5550021
FTG NPL -08 JIC x -06 NPT
1
-
19 5550142
FTG NPL -06 ORB x -06 F NPT
2
-
20 5550043
FTG NPL -12 NPT x -12 NPT
1
-
21 5550096
FTG ELB -08 JIC x -06 NPT
1
-
22 5550116
FTG 45ELB -08 JIC x -06 NPT
1
-
23 5550117
FTG NPL RED -08 JIC x -12 ORB
2
-
24 5550128
FTG NPL -06 NPT x -06 NPT
1
-
25 5550130
FTG ELB -08 JIC x -08 NPT x -04 TAP
1
-
26 5550135
FTG RED -10 ORB x -8 F NPT
1
-
27 5550136
FTG TEE -06 NPT x -06 F NPT x -06 F NPT
2
-
28 5550138
FTG ELB -12 ORB x -12 F NPT SWV
1
-
29 5550139
FTG ELB -08 JIC x -12 ORB
8
-
30 5550146
FTG RED -06 NPT x -04 F NPT
1
-
31 5550149
FTG 45ELB -12 NPT x -12 JIC
1
-
32 5530176
SHCS 10-32 x 2"
4
-
33 5530161
SSS M8 x 1.25 x 8
1
-
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5174804

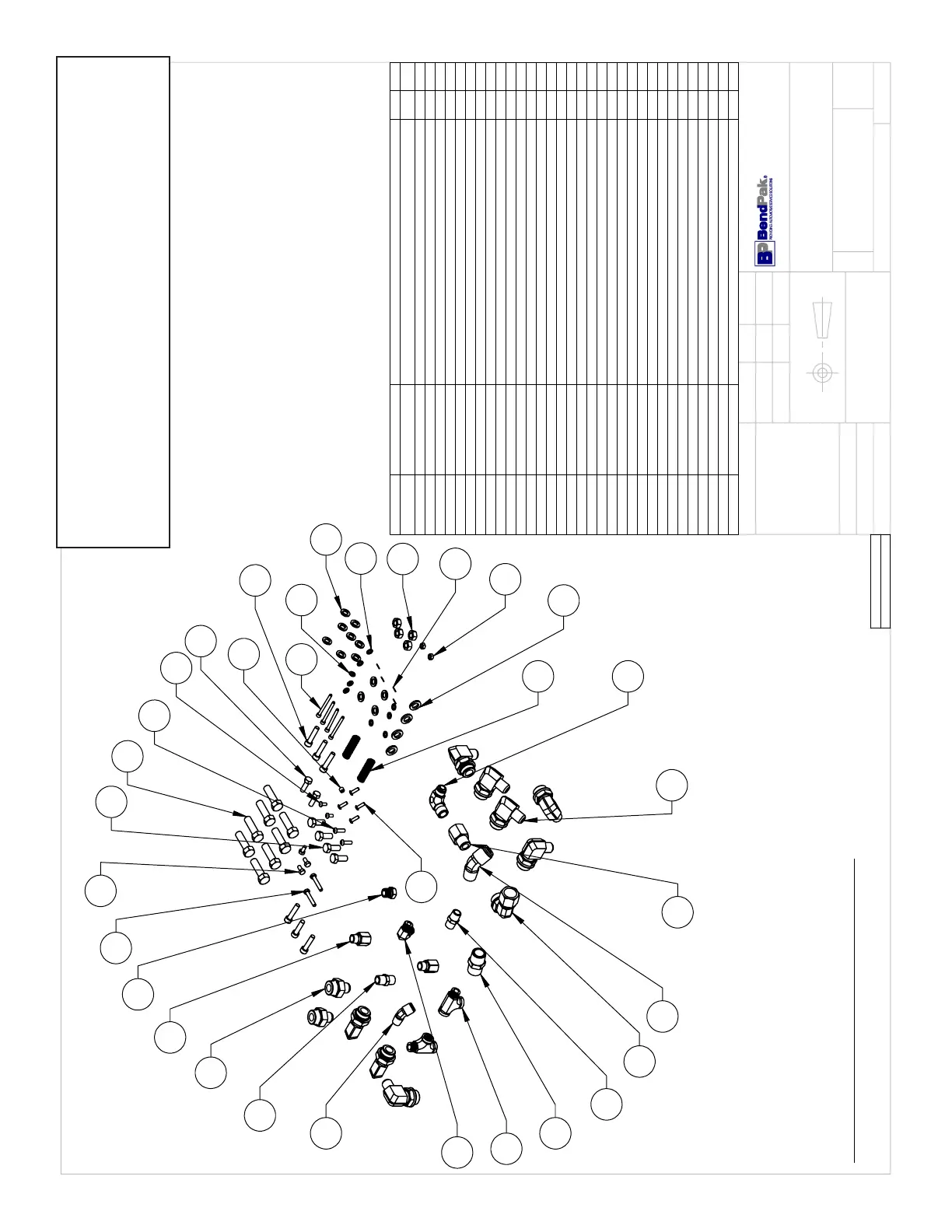

BLUE BULLET PARTS BAG
---
---
02/02/2009
DO NOT SCALE DRAWING
1:8
SCALE:
THIRD ANGLE PROJECTION
AC
05/30/2010
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ALL FITTINGS MUST HAVE TEFLON TAPE APPLIED TO THREADS
2.
