LR-10000 Low-Rise Scissor Lift 7 P/N 5900075 — Rev. B — August 2021

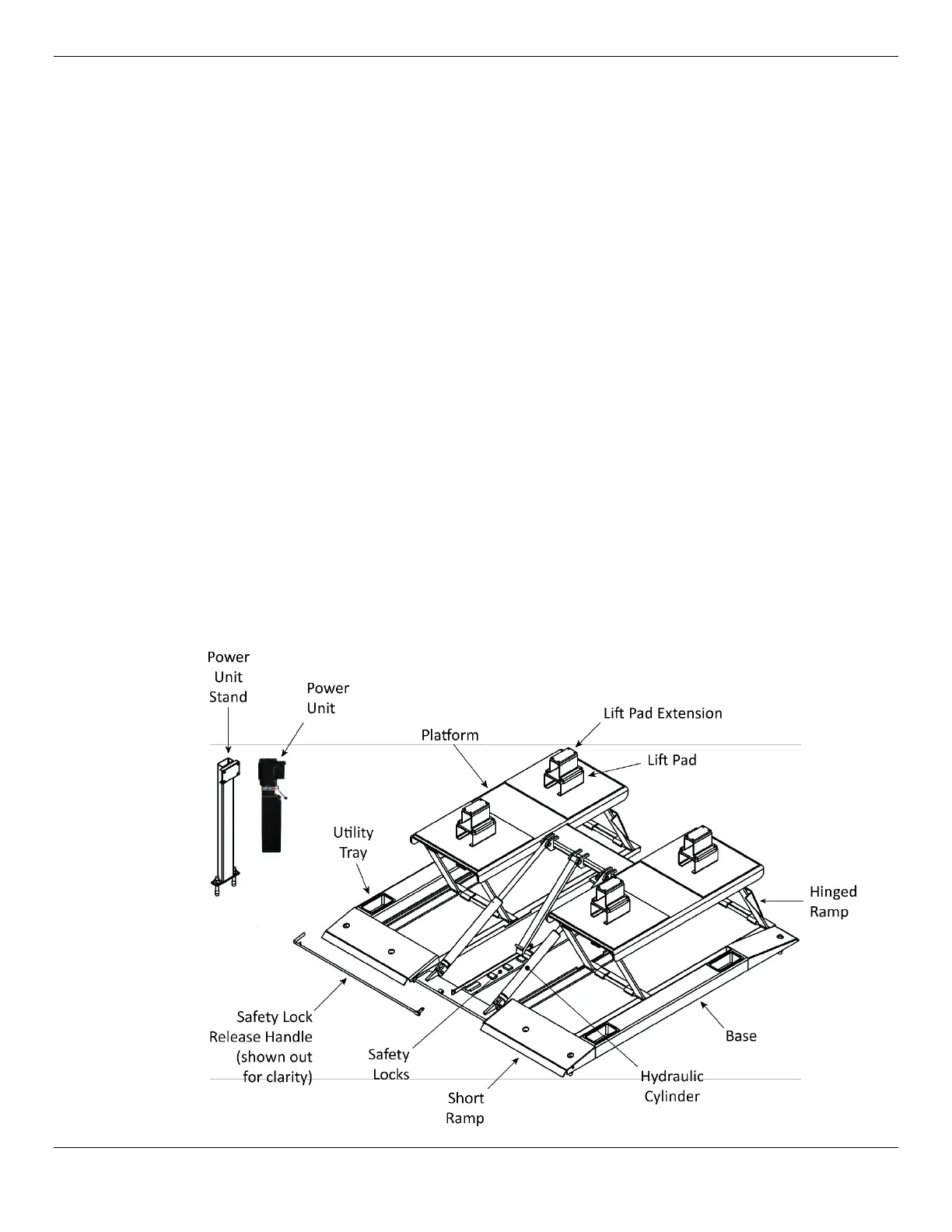

Components
LR-10000 components include:
• Power Unit. Provides Hydraulic Fluid to the Hydraulic Cylinders, which they use to raise the
Platforms. Connects to an external electric power source.
• Power Unit Stand. Holds the Power Unit. Provides Hydraulic Fluid and pressure to the
Hydraulic Cylinders.
• Hydraulic Hose Cover. Not shown. Covers the Hydraulic Hoses as the routed from the Power
Unit to the Frames.
• Short Ramps. Used to drive Vehicles onto or off of the Platforms.
• Hinged Ramps. Hinges up when the Platforms are raised. Located on the other end of the Lift
from the Short Ramps. Can also be used to drive Vehicles onto or off of the Platforms.
• Platforms. Flat steel plates that raise and lower. The Lift Pads or Lift Pad Extensions, which sit on
the Platforms, make contact with the underside of the Vehicle to raise and lower the Vehicle.
• Base. The bottom of the Lift, everything around the Platforms.
• Utility Trays. Built in to the Bases of the Lift, the Trays hold whatever you need them to hold.
• Hydraulic Cylinders. Push the Platforms up to raise a Vehicle, move down to lower a Vehicle.
• Safety Locks. Hold the Platforms in place while they are raised. The LR-10000 has three Safety
Lock positions, which lets you select the right Platform height for your needs.
• Safety Lock Release Handle. Moves the Platforms off the Safety Locks when you want to
lower the Lift. Must be on the same side of the Lift as the Long Hydraulic Hose and Power Unit
Stand.
• Lift Pads and Lift Pad Extensions. Blocks that make contact with the lifting points on the
Vehicle being raised. You can stack one Lift Pad Extension on one Lift Pad, but no more than that.
