RBJ Series of Rolling Bridge Jacks 25 P/N 5900004 — June 2018 — Rev. C2
Maintenance
⚠ WARNING: Before performing
any
maintenance, remove air pressure from the system, then
disconnect the air pressure supply from the Air-Operated Hydraulic Pump.
To maintain your Rolling Bridge Jack:
• Keep the Rolling Bridge Jack clean; wipe up any oil spills. Do not let dirt get into the hydraulic
system.
• Daily: Make a visual inspection of all moving parts and check for damage or excessive wear.
Replace any damaged or worn parts before equipment is put back into operation.
• Daily: Make sure Safety Locks are in good operating condition. Do not use your Rolling Bridge
Jack if the Safety Locks are damaged or excessively worn.
• Daily: Inspect Lift Pads for damage or excessive wear. Replace as required with BendPak parts.
• Weekly: Lubricate all rollers with general purpose oil or WD-40.
• Weekly: Check all hose connections, bolts, and pins to make sure they are properly mounted.
• Weekly: Lubricate the Safety Lock pivot points with general purpose oil or WD-40.

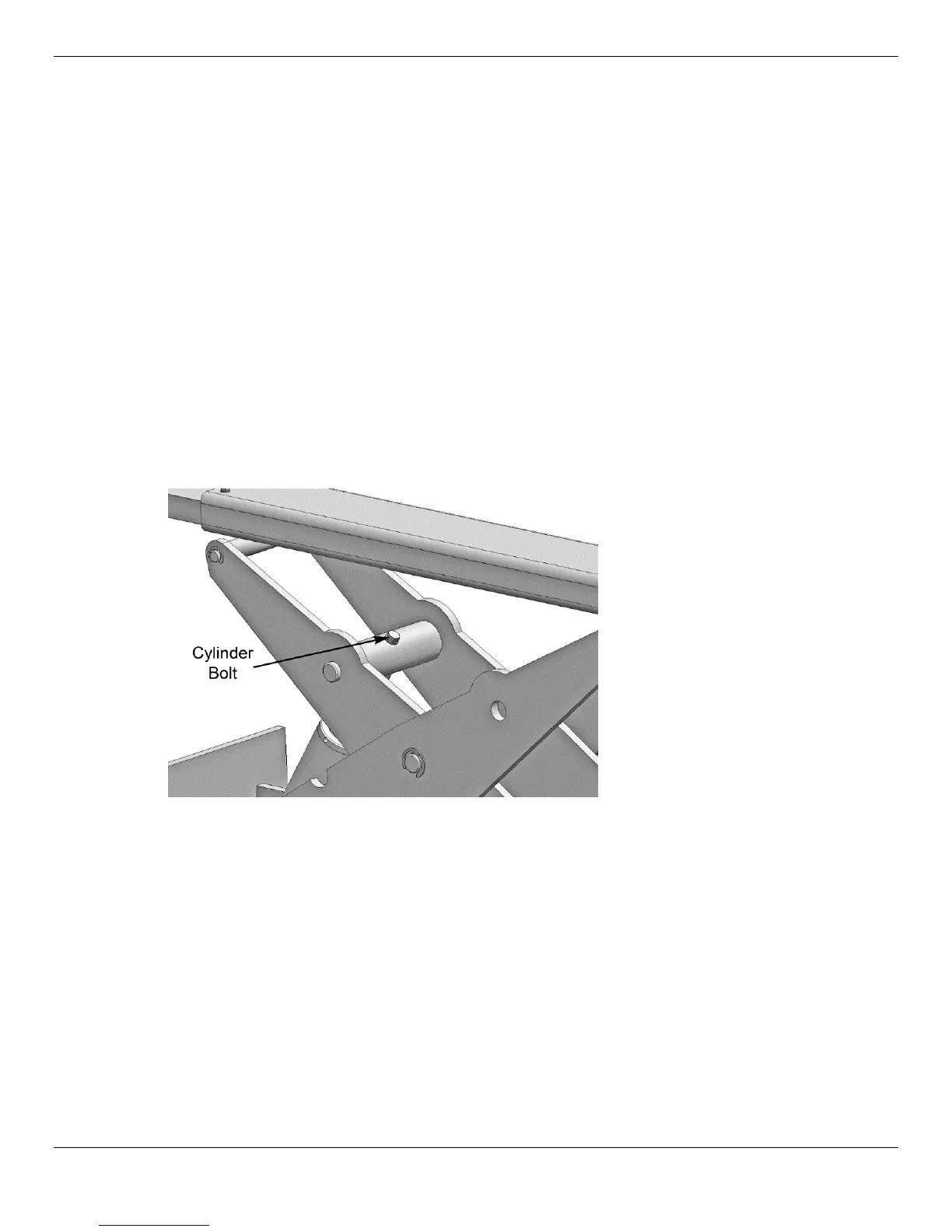

• Weekly: Check (and tighten, if necessary) the Cylinder Bolt.
• Monthly: Check air cylinders to make sure they have the correct amount of pressure.
• Every other month: Check the Air-Operated Hydraulic Pump fluid level and refill if required.
• Replace all caution, warning, and safety-related labels if illegible or missing.
• Reorder labels and worn or damaged parts from BendPak.
To maintain Hydraulic Fluid:
1. Remove the Vented Fill Cap.
2. Insert a dipstick or piece of plastic into the tank until it hits the bottom.
3. Remove the dipstick or piece of plastic and measure the amount of fluid.
The Hydraulic Fluid level should be from 3.35 to 3.5 inches deep.
4. If the current level is below 3.35 inches, add Hydraulic Fluid until it is above 3.35 inches.
