SP-7XE/F Full-Rise Scissor Lift 40 P/N 5900010 — Rev. B3 — September 2023
Connect the Air Line
The SP-7XE Lifts use hydraulic pressure to move the platforms off the Safety Locks. Air Pressure is
used to raise and lower the Safety Latch Weldments away from the Safety Lock Blocks freeing the
Platform to be raised or lowered.
NOTICE It is the owner’s responsibility to provide an air supply with a minimum of 30 psi / 3 CFM,
regulated to a maximum of 125 psi).
The air pressure supply is distributed to the Air Cylinders using ¼ inch, black, polyethylene Tubing (also
called Poly-Flo® Tubing), supplied with the Lift. Cut the tubing into appropriate lengths. Three sections
of tubing are required.
Tip BendPak recommends planning out and measuring the path of the Air Line before
cutting the tubing.

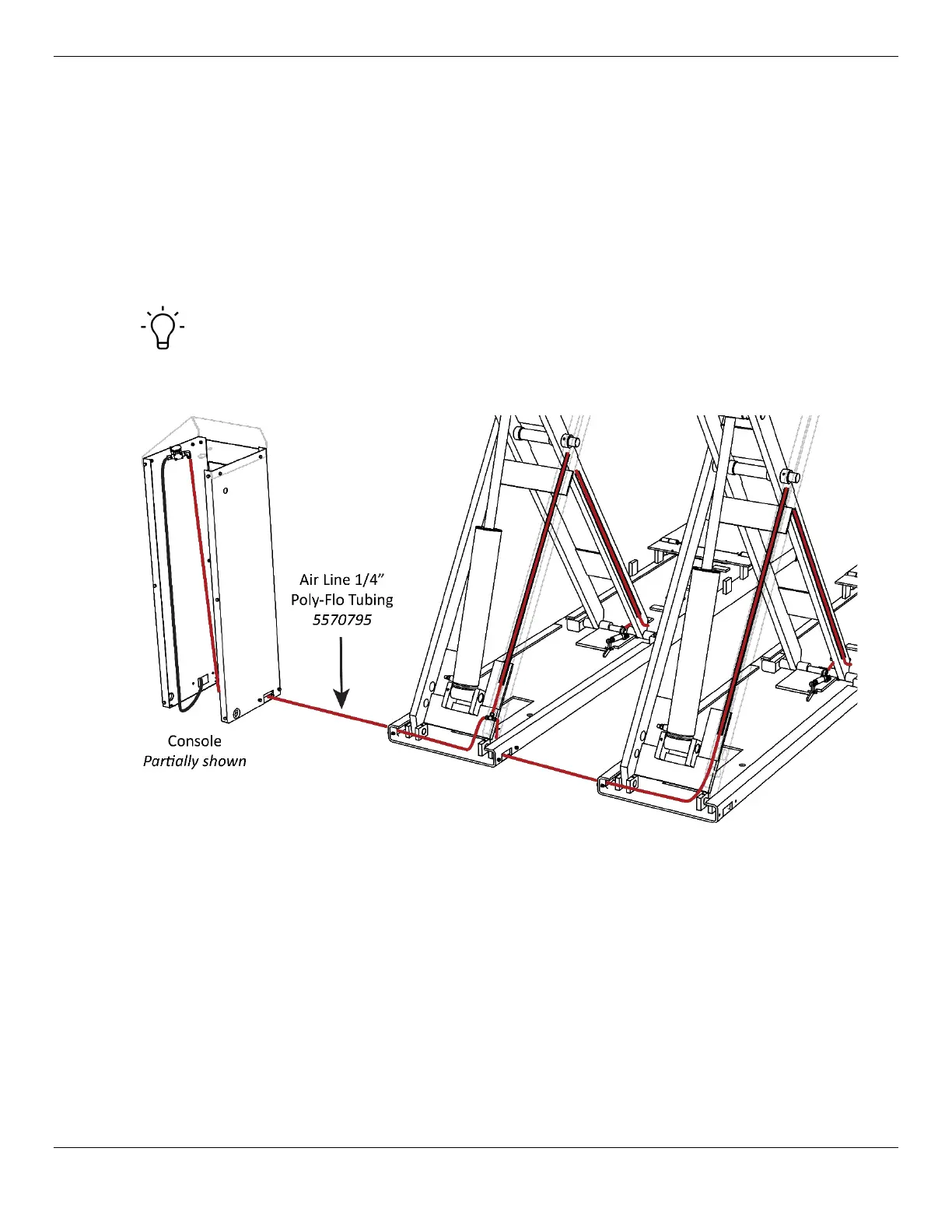

The following figure details the route the Air Lines take from the Console to the Air Cylinders.
To connect the Air Line:
1. If the two Elbow Compression Fittings (5550087) are not already connected to the top of the Air
Cylinders, connect them now.
Use Thread Sealant on NPT Threads only.
