SP-7XE/F Full-Rise Scissor Lift 41 P/N 5900010 — Rev. B3 — September 2023
2. Locate the roll of ¼ inch, black, polyethylene Tubing and the Tee Compression Fitting (5550395).
3. Cut the tubing into three sections of appropriate lengths for your installation. See the drawing on
the previous page for additional information.

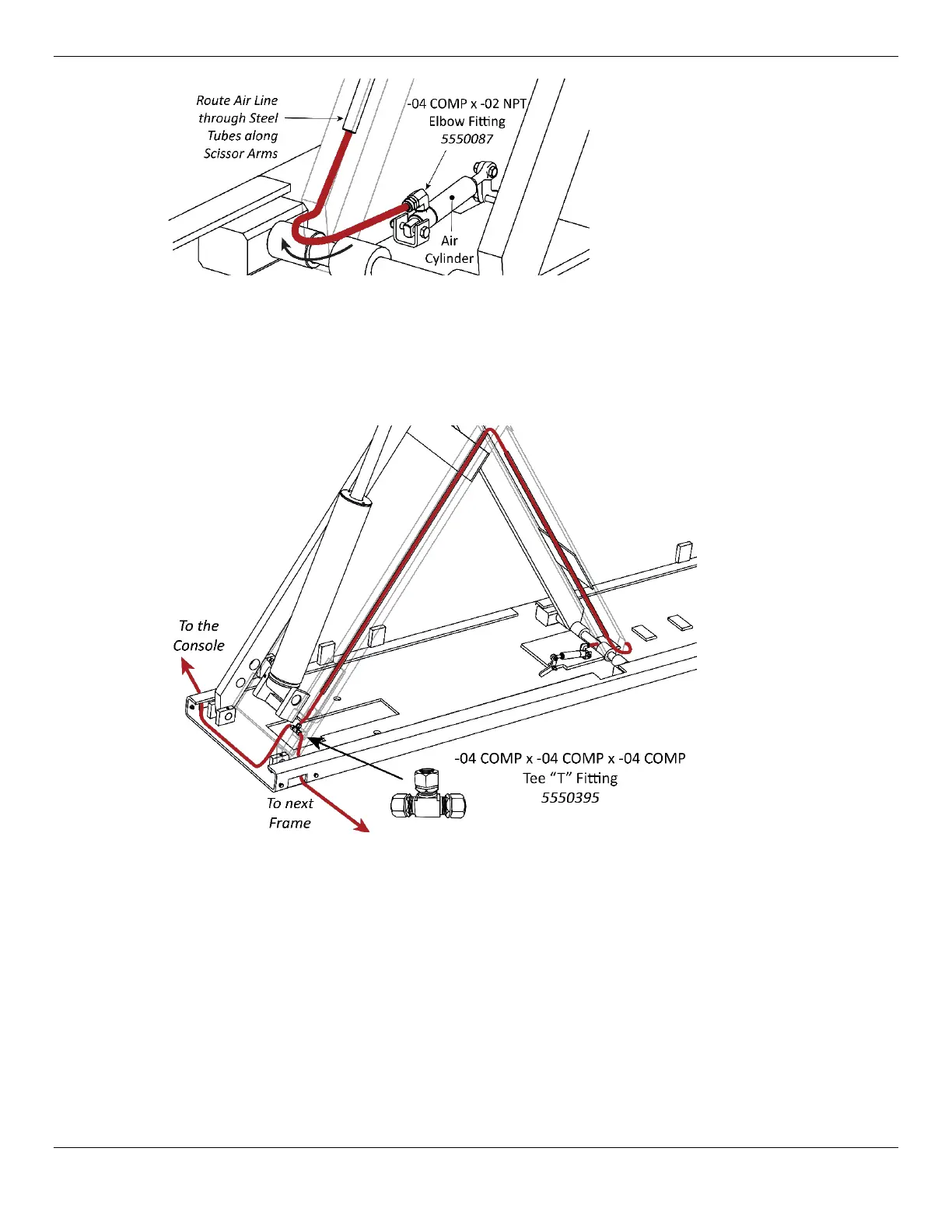

4. Connect the three tubing sections and Tee Compression Fitting to the Compression Fittings on the
Air Cylinders, routing the Air Line through the Steel Tubes along the Scissor Arms on the Lift.
5. On the underside of the Console Top, attach the male end of a Compression Elbow Fitting to the
CYL connector on the Pushbutton Air Valve, then connect the final Air Line tubing section to the
compression end of the Elbow Compression Fitting you just installed.
Use Thread Sealant on NPT Threads only.
