SP-7XE/F Full-Rise Scissor Lift 44 P/N 5900010 — Rev. B3 — September 2023
⚠ WARNING A Power Disconnect Switch is not provided with this equipment. This is a National
Electrical Code (NEC) requirement. They are designed to interrupt main electrical
power in the event of an electrical circuit fault, emergency, or when equipment is
undergoing service or maintenance.
Only install a Power Disconnect Switch that is properly rated for the incoming power source.

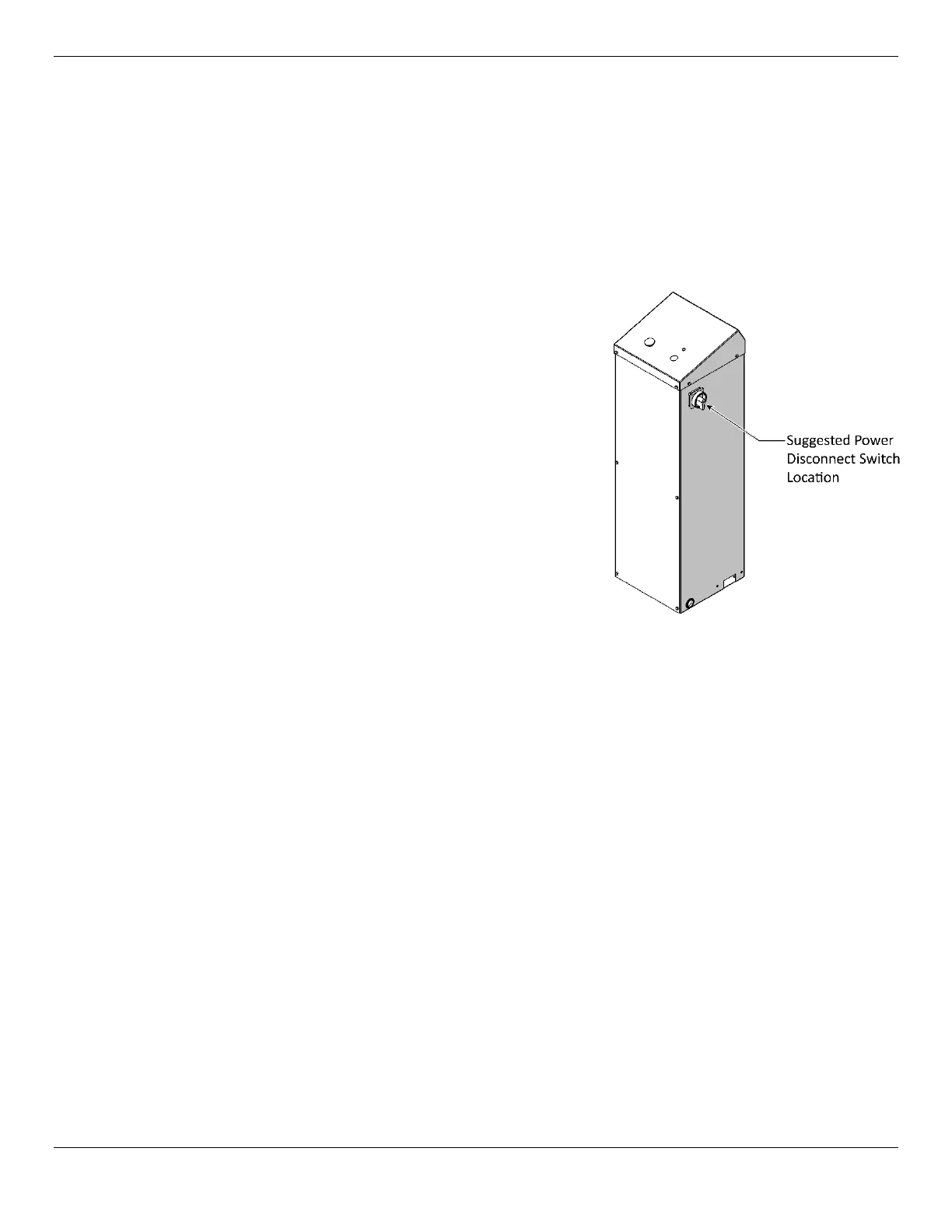

Your Power Disconnect Switch must be installed so that it is within easy reach of the operator or
in their line of sight. The Power Disconnect Switch must be clearly marked to indicate its purpose.
If you are not clear where to install the Power Disconnect Switch, consult with your Electrician.
⚠ DANGER Installing a Power Disconnect Switch
must be performed by a licensed,
Electrician in accordance with all applicable
local electrical codes.
Have the Electrician select a UL-listed Power Disconnect
Switch.
5. The Electrician will locate the Electrical Junction Box on
the Power Unit Motor, open the Box, remove the Pigtail,
and then wire to the Power unit motor to the Power
Disconnect Switch. Alternatively, the Electrician could
connect directly to the facility electrical system protected
by an appropriate circuit breaker.
The Power Cord and Plug are not supplied with the Lift.
Refer to the Wiring Diagrams for proper wiring
information.
Important electrical information:
6. Improper electrical installation can damage the Power Unit motor; this damage is not covered
under warranty.
7. Use a separate circuit breaker for each Power Unit. Protect each circuit with a time-delay fuse or
circuit breaker. Refer to the Wiring Diagrams for Voltage and current information.
Install a Thermal Disconnect
⚠ WARNING A thermal disconnect is not included with the Lift. The Electrician will supply an
appropriate thermal disconnect. The motor on the Power Unit includes no thermal
overload protection.
Have the Electrician connect a Thermal Disconnect Switch or overload device that will shut down the
equipment in the event of an overload or an overheated motor.
⚠ DANGER A licensed Electrician must install a Thermal Disconnect Switch in accordance with
all applicable national, state, and local electrical codes. Do not perform any
maintenance or installation on the Lift without first making sure that the main
electrical power has been disconnected from the Lift and cannot be re-energized
until all procedures are complete.
High electrical current that exceeds the motor’s full load amps (FLA) rating may result in permanent
damage to the motor. Do not exceed the rated duty cycle of the motor.
