SP-7XE/F Full-Rise Scissor Lift 45 P/N 5900010 — Rev. B3 — September 2023
Lubricate the Lift
There are several Lubrication areas on each Lift Frame:
• Lubrication areas along the Base Weldment where the Slide Blocks travel only.
• Lubrication areas under the Platform where the Slide Blocks travel only.
• Lubricate all scissor pivot points
Use a small amount of White Lithium Grease or similar on each Lubrication Area before you use the Lift

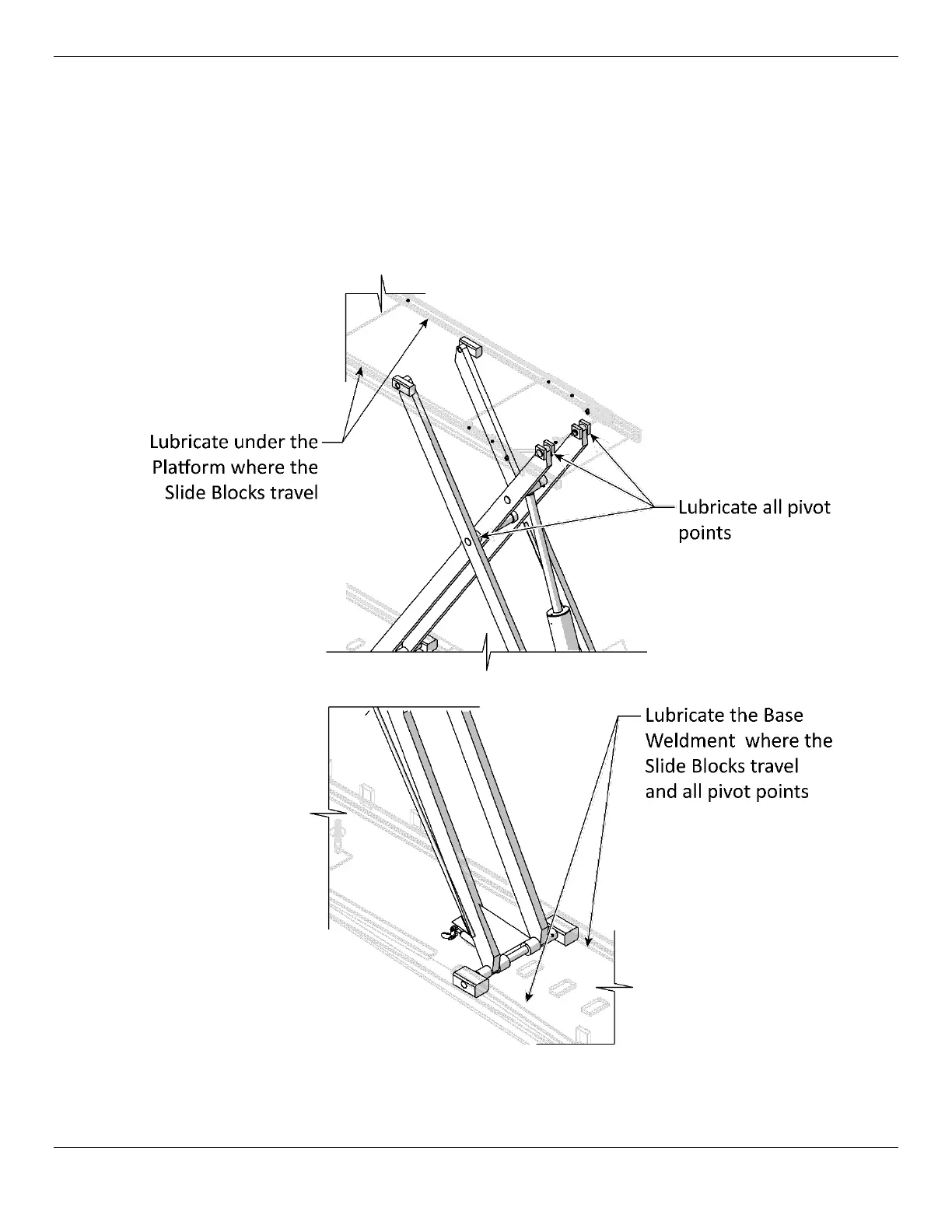

and monthly after putting the Lift into service. Refer to the figures below for the Lubrication areas.
Drawing not to scale. Not all components shown.
