SP-7XE/F Full-Rise Scissor Lift 51 P/N 5900010 — Rev. B3 — September 2023
⚠ WARNING Many specialty or modified Vehicles or Vehicles with unusually short or long
wheelbases cannot be on raised on a Frame Engaging Lift. Contact the Vehicle’s
manufacturer for Raising or Jacking guidance.
To balance a Vehicle on a full-rise frame-engaging Lift, the Lift Blocks must contact the Vehicle on the
manufacturer’s recommended Lifting Points. When you raise a Vehicle by its Lifting Points, the Vehicle
is balanced.
NOTICE The manufacturer’s recommended Lifting Points do not take into consideration any
major changes that might have been made to the Vehicle. If the motor is removed,
or there is a 5,000 pound / 2,268 kg weight in the trunk, the Vehicle’s Lifting Points
will not be the best balancing points.
Some vehicles may have the manufacturers’ recommended Service Garage Lift Point locations
identified by a triangle mark on the underside of the vehicle, reference SAE J2184- (Current Edition).
On some vehicles, specific Lifting Points are indicated by a label located on the driver’s side door
jamb. Your best approach is to find the Vehicle in the Vehicle Lifting Points for Frame Engaging Lifts
guide available from ALI (pg. 75) or contact the manufacturer of the Vehicle. This guide includes a
page of safe lifting suggestions, which everyone who uses the Lift should read. The Lifting it Right: A
Safety Manual from the Automotive Lift Institute is also available from ALI (pg. 75) and includes a
wide variety of information about Lifts and how to use them safely

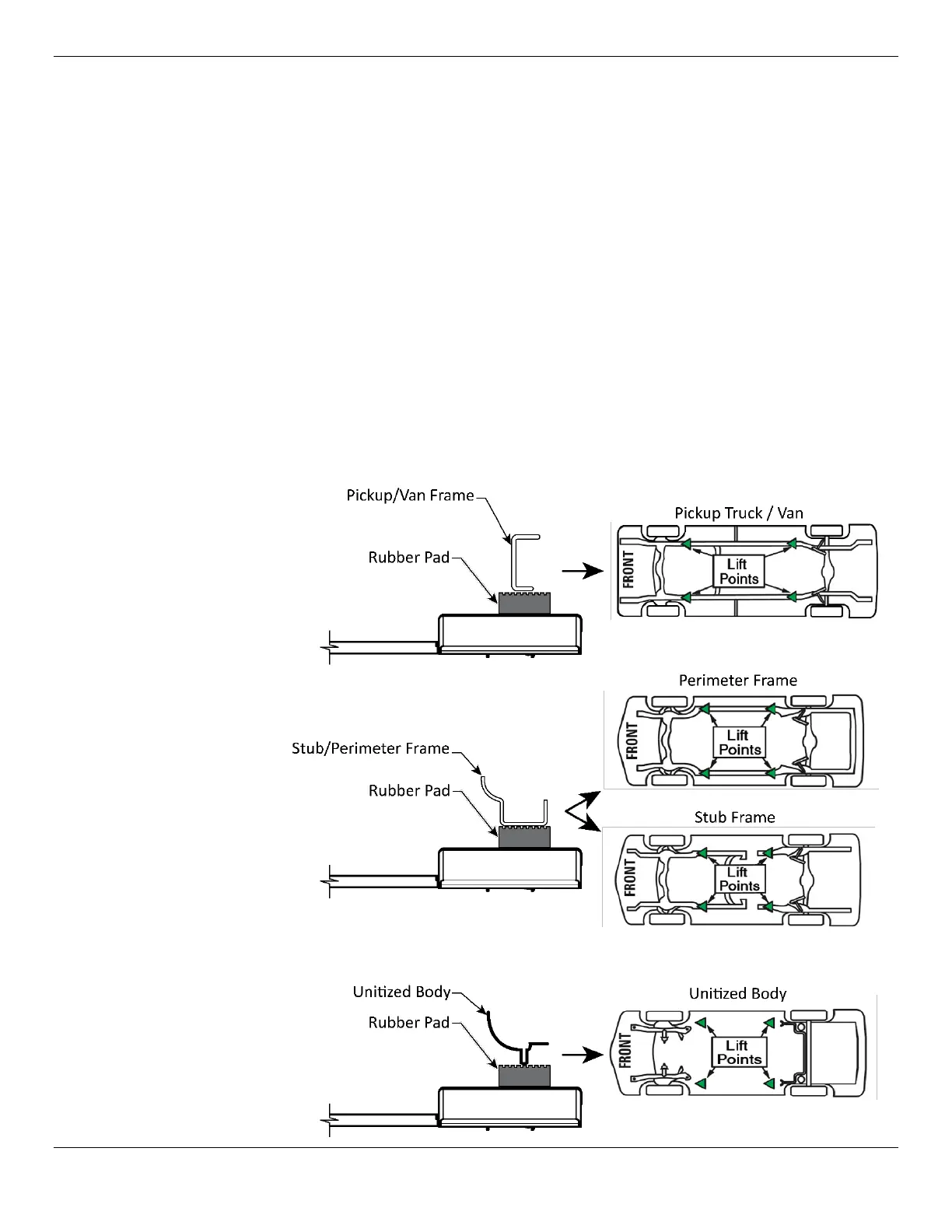

Typical Lifting
Points:
