SP-7XE/F Full-Rise Scissor Lift 52 P/N 5900010 — Rev. B3 — September 2023

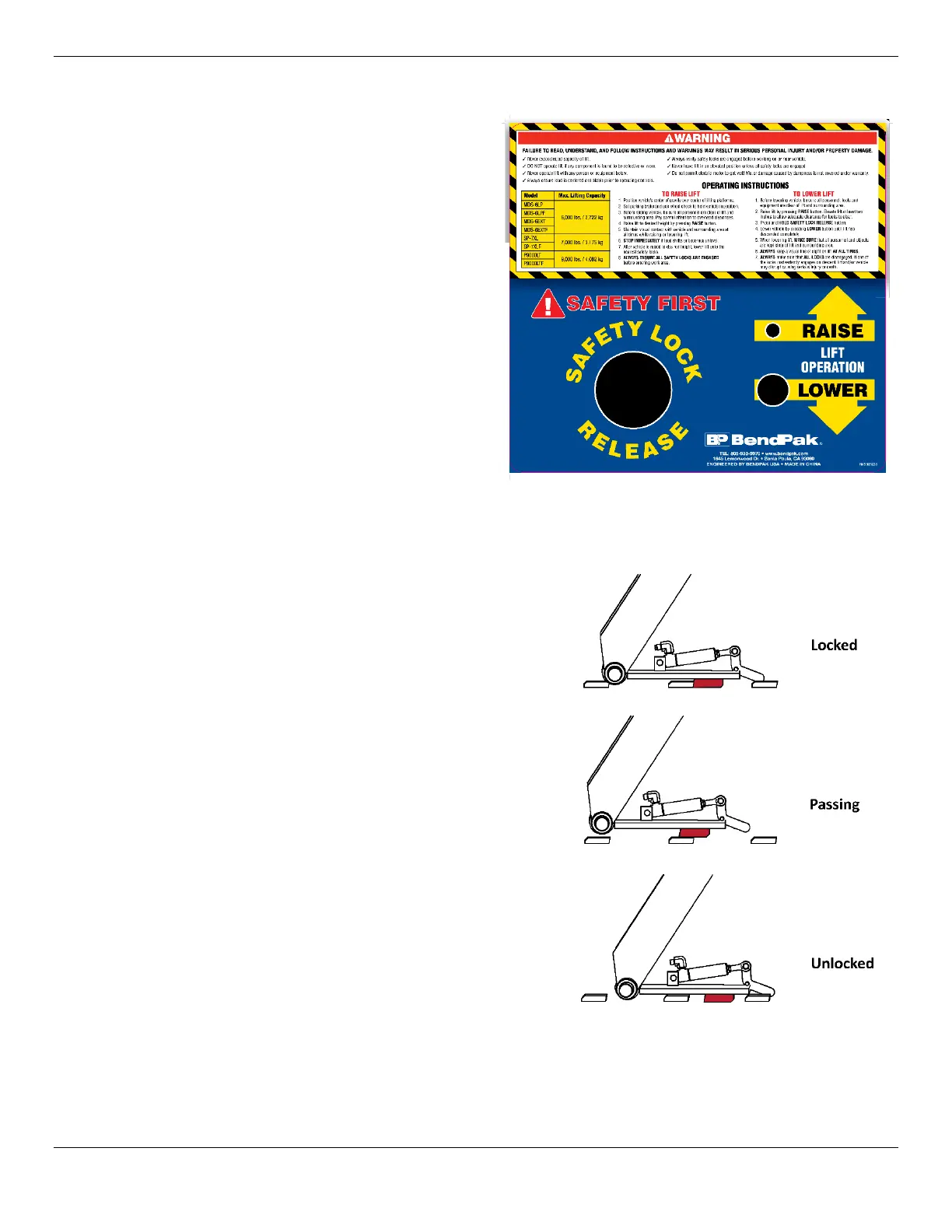

The Console
Operation of the Lift is controlled via the
Console.
About Safety Locks
The Lift is supplied with multiple Safety Lock
positions; they serve two important functions:
• Safety. Safety Locks hold the SP-7XE/F
Platforms in place. Once your Lift is
engaged on the desired Safety Lock, the
weight of the Vehicle holds the Platforms in
place. If the power goes out, the Safety
Locks still hold the Platforms, and anything
on them, in place.
⚠ WARNING Always leave your Lift on a
Safety Lock or fully lowered.
Although rare, it is possible
for Hydraulic Fluid in the Hydraulic Cylinders to leak, causing the Platforms to slowly
lower.
Always leave your Lift either fully lowered or engaged on a
Safety Lock. Never work under a vehicle unless the platform is fully
engaged on a Safety Lock.
• Adjustable height. Having multiple Safety Locks
means you can raise the Vehicle to just the right
height for the work to be performed.
Additional Operation Safety
Information
Read and understand the following instructions before
operating your SP-7XE Series Lift:
• Never exceed the rated capacity of the Lift, 7,000
lbs. / 3,175 kg.
• Never exceed the maximum load of 3,500 lbs. /
1,587 kg per each Platform.
• Always center the load evenly on the Platforms.
• Never operate the Lift with any person or equipment
under the Lift.
• Always use the Lift in the proper manner. Never use
the Lift Adapters in any way other than what is
approved by the manufacturer.
• Always keep a clear visual line of sight on the Lift and Vehicle.
• Always verify the Vehicle is centered and stable prior to operating the Lift Controls.
• Always verify the Safety Locks are engaged before working on or near any Vehicle.
• Never leave the Lift in an elevated position unless both Safety Locks are securely engaged and
resting on a Safety Lock at the same height.
